Product Description:

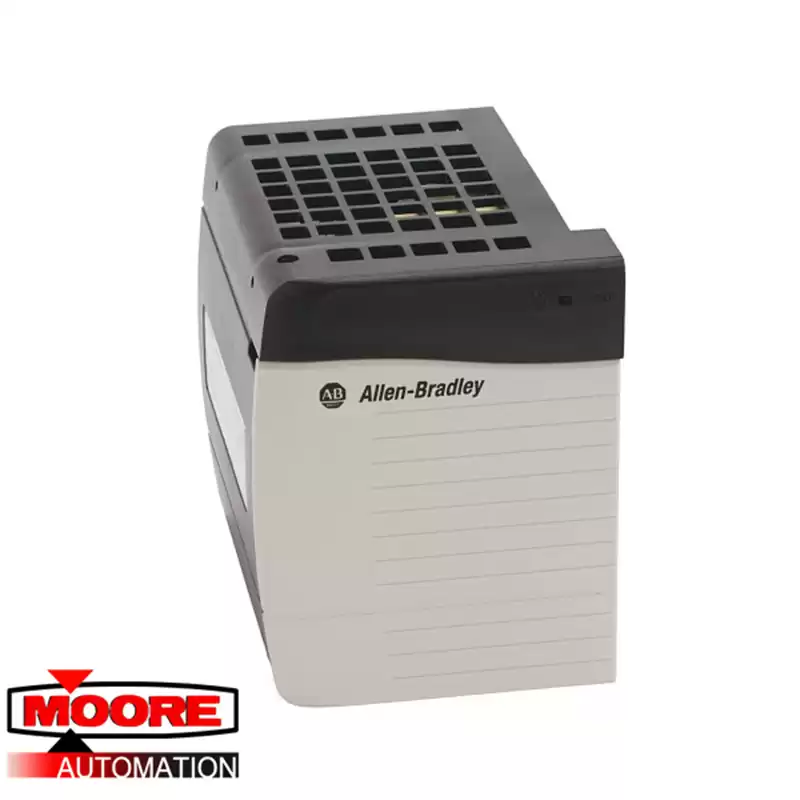

The 1756-PA75 is an Allen-Bradley Standard power supply. This module is installed on the dedicated power supply slot, located at the left most side any ControlLogix chassis. The primary purpose of this power supply is to deliver the necessary backplane power, used by each of the modules installed to the chassis. This backplane power energizes the modules to enter operational state.
The 1756-PA75 must be supplied with an external power to operate. It is compatible with 85-264VAC voltage range along a frequency of 47-63 Hz while the nominal input voltage are 120VAC / 240VAC. This power supply has an output power rating of 75 W when operated at 0…+60 °C (+32…+140 °F) and current capacities of 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC.
