Brand Name                 AB

Product reference     1756-SIM

• The Allen-Bradley 1765-L63 processor/controller has a scalable controller design, giving you many settings to work with for different applications. It is also capable of addressing a lot of I/O points, providing you with a reliable processor for different types of tasks. It can be placed into any slot of an Allen-Bradley chassis, and it doesn't have a long installation process. This type of controller/processor can communicate with different channels. Some of these include ControlNet, DeviceNet and Ethernet/Internet protocol. Additionally, many third party devices can work with this controller, making it a dynamic part to own for all sorts of tech-oriented applications.
• Catalog Numbers 1756-L61, 1756-L62, 1756-L63, 1756-L63XT, 1756-L64, 1756-L65, 1756-L71, 1756-L72, 1756-L73, 1756-L73XT, 1756-L74, 1756-L75, 1756-L72EROM, 1756-L73EROM

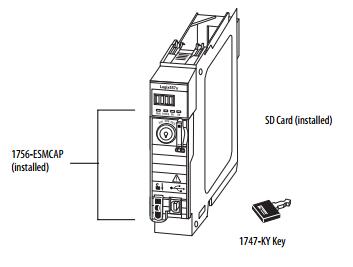

      Parts Included with the 1756-L7x Controller These parts are included with the controller: • 1756-ESMCAP capacitor-based energy storage module (ESM) • 1784-SD1 Secure Digital (SD) card, 1 GB • 1747-KY controller key Figure 1 - Parts with the            1756-L7x Controller

• The following ESM modules can be currently installed in your 1756-L7x or 1756-L7xXT controller: – 1756-ESMCAP – 1756-ESMNSE – 1756-ESMCAPXT – 1756-ESMNSEXT • The 1756-L7x controllers come with the 1756-ESMCAP module installed. The 1756-L7xXT extreme temperature controller ships with a 1756-ESMCAPXT module installed. For more information on how to use a 1756-ESMNSE, 1756-ESMNRM, 1756-ESMNSEXT, or 1756-ESMNRMXT modu

• After the 1756-L7x or 1756-L7xXT controllers lose power, because the chassis power is turned off or the controller has been removed from a powered chassis, do not immediately remove the ESM. Wait until the OK status indicator on the controller transitions from Green to Solid Red to OFF before you remove the ESM.

• You can use the 1756-ESMNSE module with only a 1756-L73 (8 MB) or smaller memory-sized controller.

• Use the 1756-ESMNSE module if your application requires that the installed ESM deplete its residual stored energy to 40 μJ or less before transporting it into or out of your application.

• Once it is installed, you cannot remove the 1756-ESMNRM or 1756-ESMNRMXT module from a 1756-L7x or 1756-L7xXT controller.

• The Armor™ controller energy storage modules (ESM) cannot be removed or replaced.
