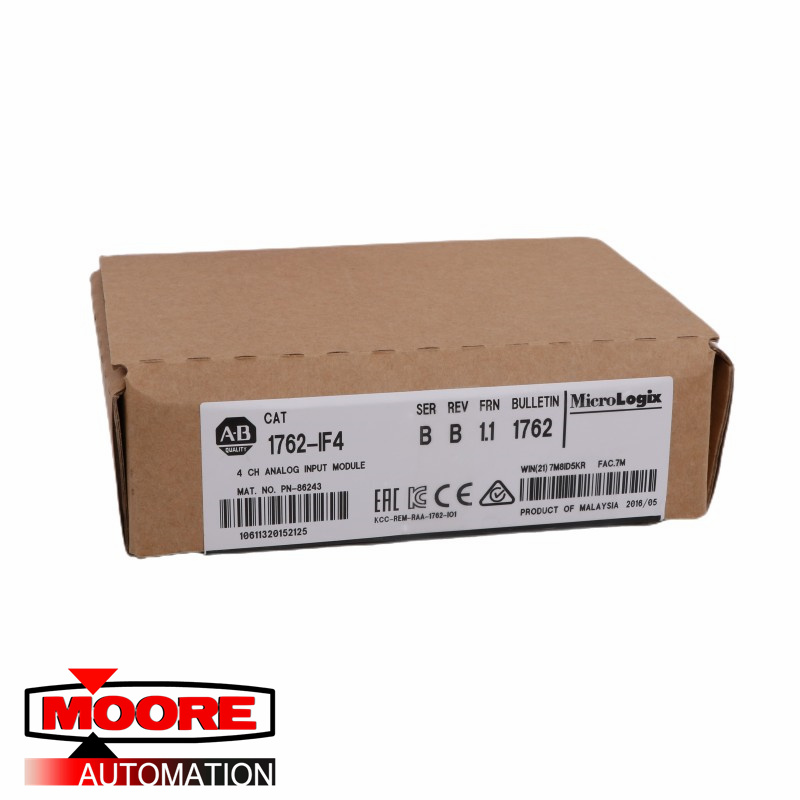

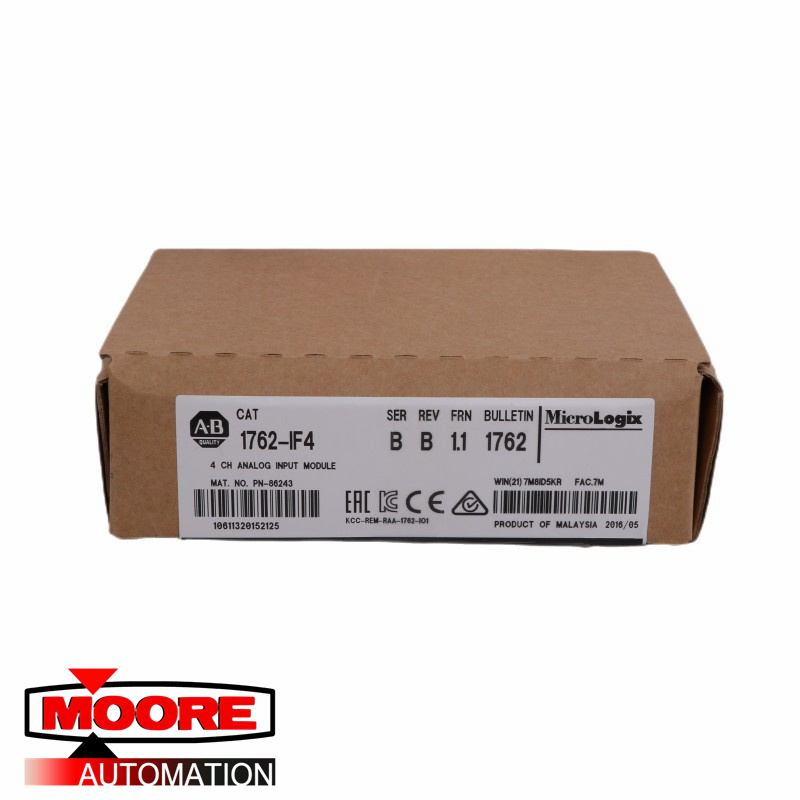

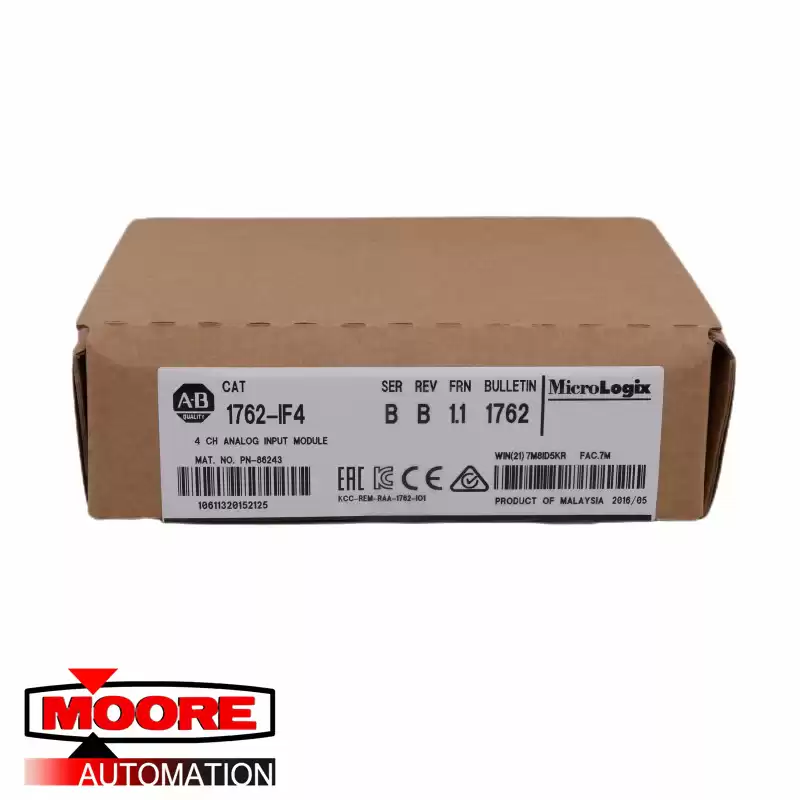

AB 1762-IF4 MicroLogix 4 Point Analog Input Module




Technical Specifications for 1762-IF4

Part number

1762-IF4

Manufacturer

Allen Bradley

Country of origin

USA

Status

Brand New In Stock

Year of Production

2020-2022 available


About  1762-IF4


The 1762-IF4 is an Allen-Bradley MicroLogix 1200 with a 4-channel current/voltage analog input module. It has a Delta-Sigma converter and 4 differential (bipolar) inputs. Its analog operating voltage range is -10 to 10 Volts DC normal and -10.5 to 10.5 Volt DC full-scale. Its analog operating current range is 4 to 20 mA normal and -21 to 21 mA at full scale. This module enhanced the functionality of MicroLogix by allowing additional I/O to the system. It requires minimal spacing and can be either DIN rail or panel mounted. The module communicates and receives information on 5 to 24 Volts DC power via the 1762 bus interface.

When wiring the input terminal blocks, a finger-safe cover is present. A flat ribbon cable is used to attach various I/O modules. The 1762-IF4 module supports 2-wire, 3-wire, or 4-wire transmitter configuration. During troubleshooting, users should always stand away from the equipment and always check it for any program change. Safety circuits should always be wired in series to the master relay.

The 1762-IF4 module should be installed in non-hazardous, dry, and clean environments with circuits not crossing overvoltage Category II standards. To avoid damage to the module, always prevent electrostatic discharge and remove power. A field-upgradable flash operating system helps to make sure the users will always be up-to-date with the latest features without having to replace any of the hardware. The I/O count can be expanded by using rackless I/O modules. This results in larger control systems, greater application flexibility, and expandability at a lower cost and a reduced parts inventory.
