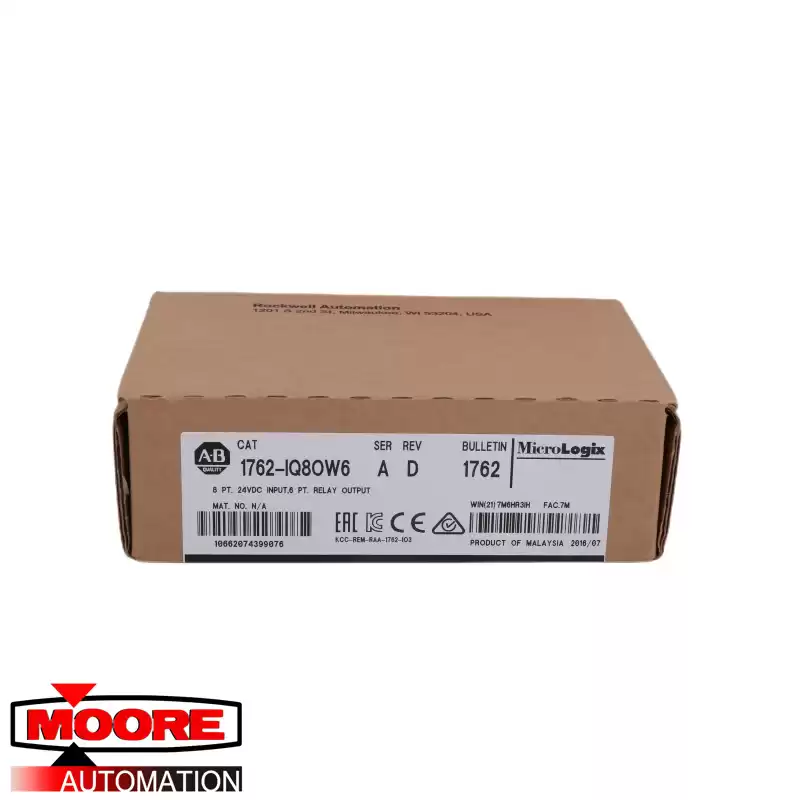

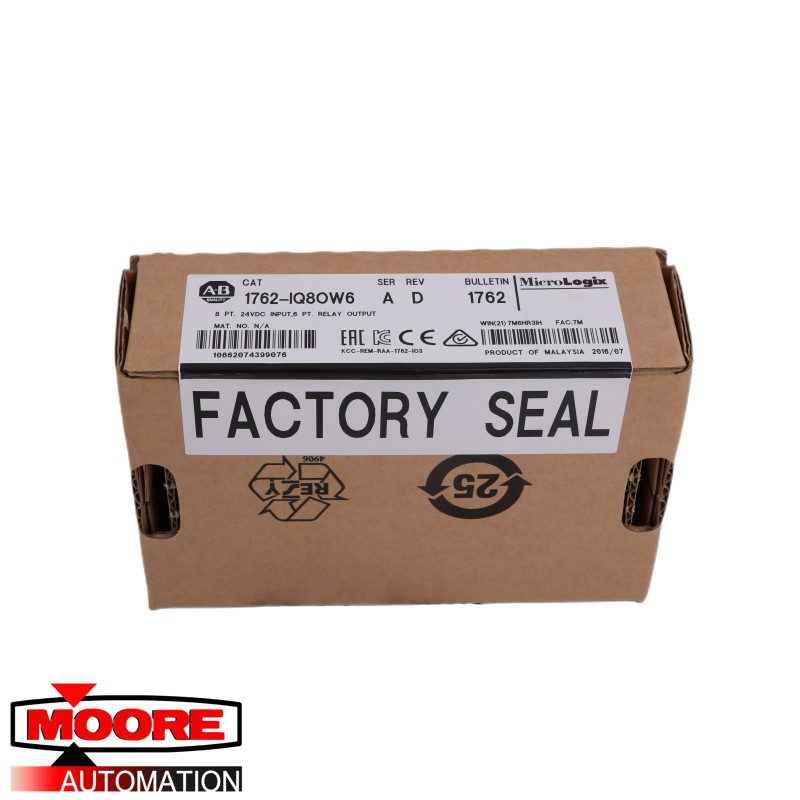

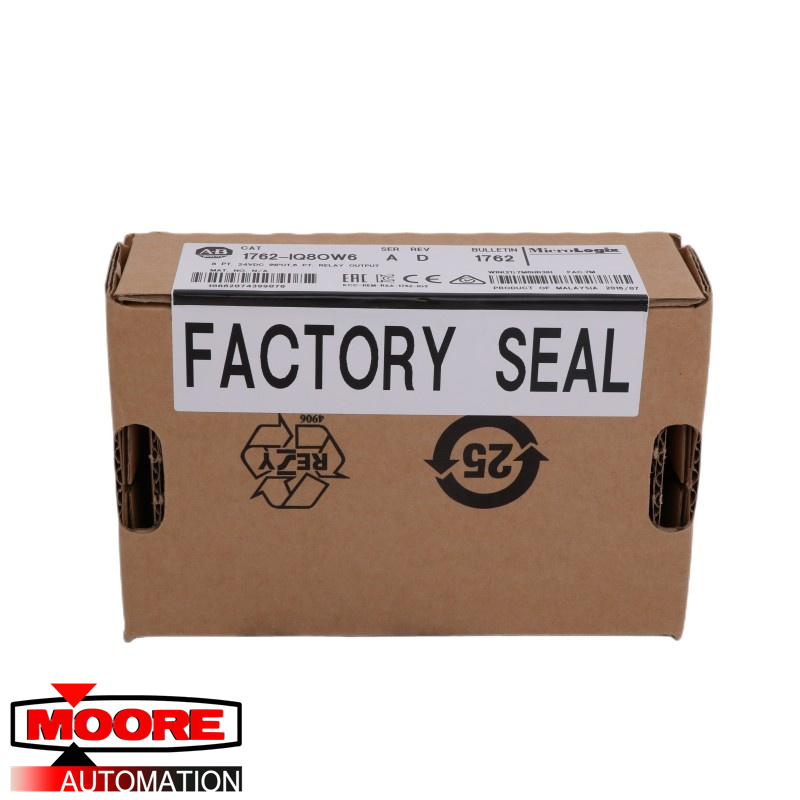

The Allen-Bradley 1762-IQ8OW6 is a MicroLogix combination I/O module. This module features Eight (8) 24VDC rated sink / source input channels and Six (6) Form A or Normally Open (N.O.) relay output modules that can be operated at 5-265VAC and 5-125VDC voltage range.
This module has a power supply distance rating of Six (6) modules which means that module cannot be installed more that 6 slots away from the power supply. Additionally, this module has a backplane current draw of 110 mA @ 5V DC and 80 mA @ 24V DC with heat dissipation of 5.0 W @ 30V and DC 4.4 W @ 26.4V DC.
The 1762-IQ8OW6 features Three (3) I/O groups. Group 1 is composed of input 0-3; Inputs 4-7 for Group 2 while Group 3 is composed of all the output channels. This module has physical dimension of 90 x 40.4 x 87 (3.54 x 1.59 x 3.43 in.) height including mounting tabs is 110 mm (4.33in.) and weighs approximately 280g (0.62 lbs.).
