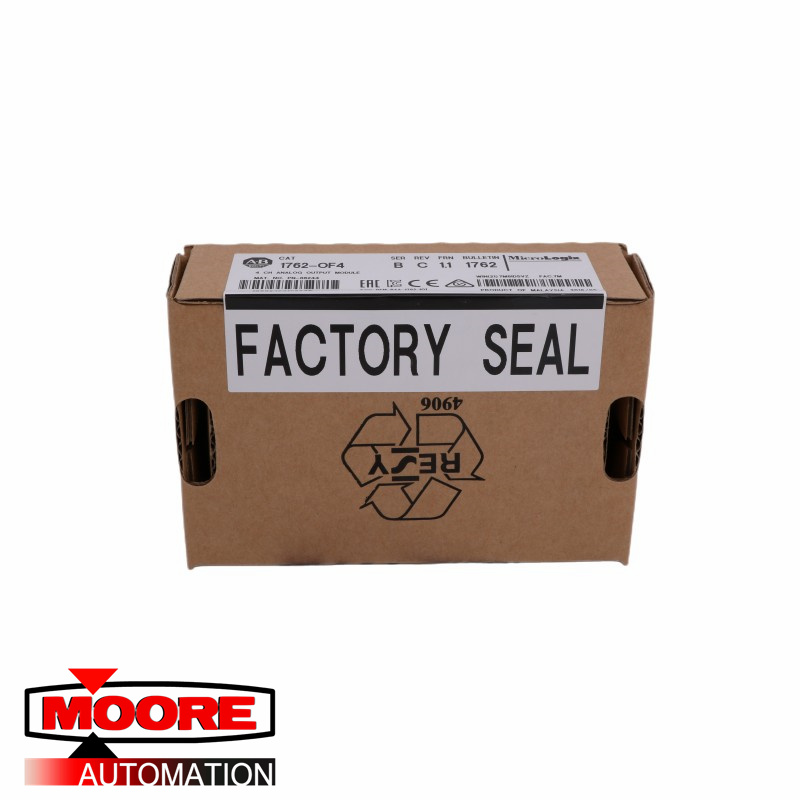

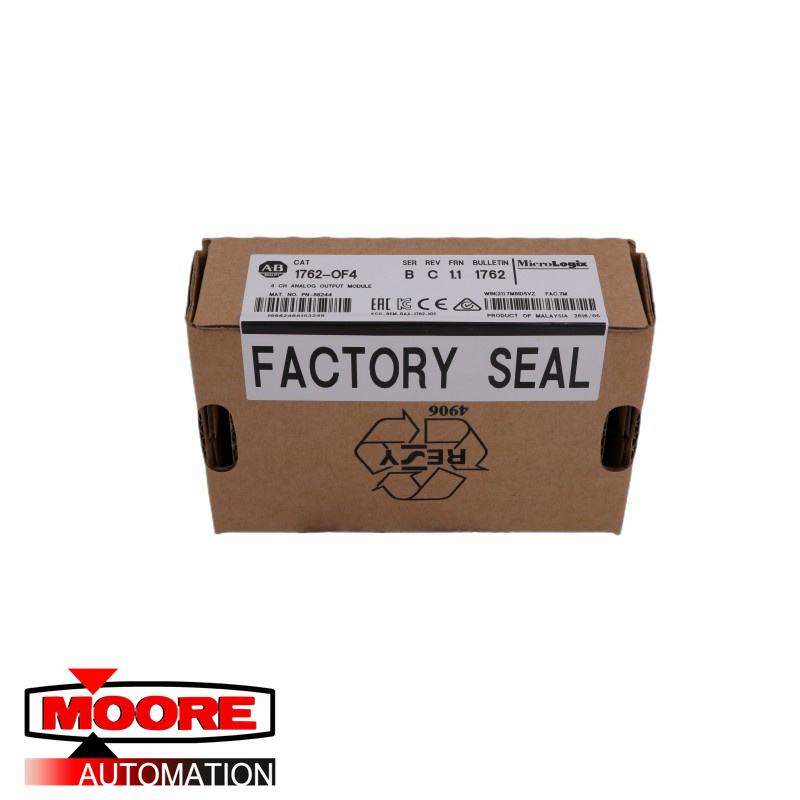

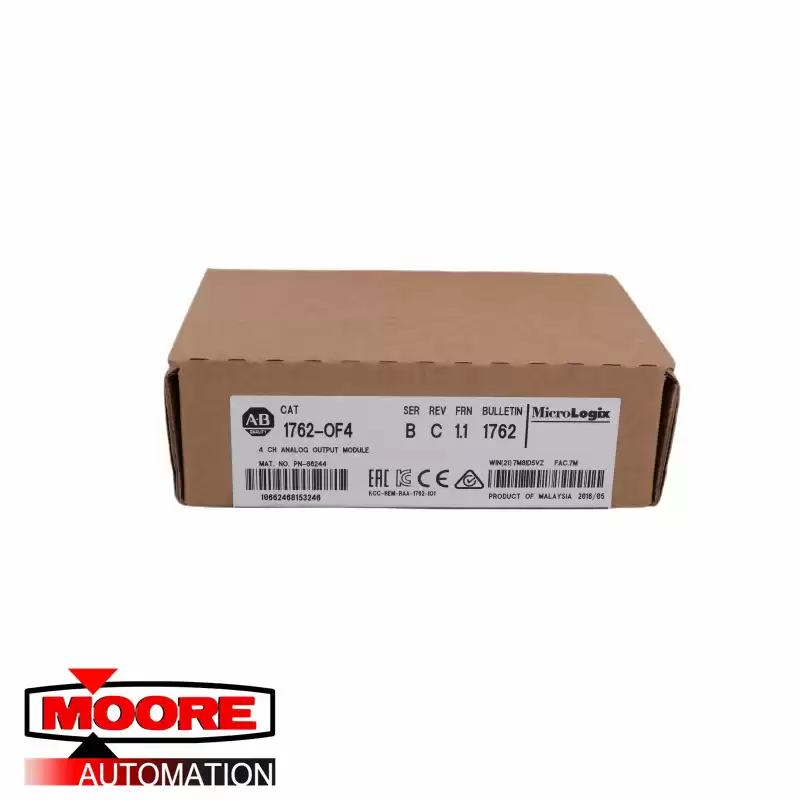

Technical Specifications for 1762-OF4
|
Part number
|
1762-OF4
|
|
Manufacturer
|
Allen Bradley
|
|
Country of origin
|
USA
|
|
Status
|
Brand New In Stock
|
|
Year of Production
|
2020-2022 available
|
About 1762-OF4
The 1762-0F4 has a heat dissipation of only 2.8 Watts. When wiring analog signals to the output channels, Belden 8761 as this cable is sensitive to electrostatic discharge (ESD). Follow ESD prevention guidelines during installation. The 1762-0F4 is meant to be mounted to a well-grounded surface such as a metal panel. Extra grounding connections from the mounting tabs or the DIN rail (if one is used) are not necessary unless the mounting surface itself cannot be grounded. The 1762-0F4 must be mounted horizontally.
The 1762-OF4 is a MicroLogix analog output expansion module. This module is designed to provide Analog output signals primarily used to drive modulating control elements such as valves, Variable Frequency Drive (VFD), Dampers, Louvers and other modulating devices. It may also be used to re-transmit to indicators, data loggers, isolators and converters.
This module is used with MicroLogix 1100 / 1200 and 1400 Programmable Logic Controllers (PLC). It has Four (4) single-ended output channels configurable for 0-20mA, 4-20 mA, ±10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5Vdc. The module’s analog ranges are 0-10.5VDC and Current of 0-21 mA. This module has an internal Digital to Analog Circuit (DAC) that uses R-2R Ladder Voltage Switching for converting binary data from the CPU to analog signal. The module’s resolution is 12 bits, unipolar with repeatability of ±0.12%.
