Product Discription

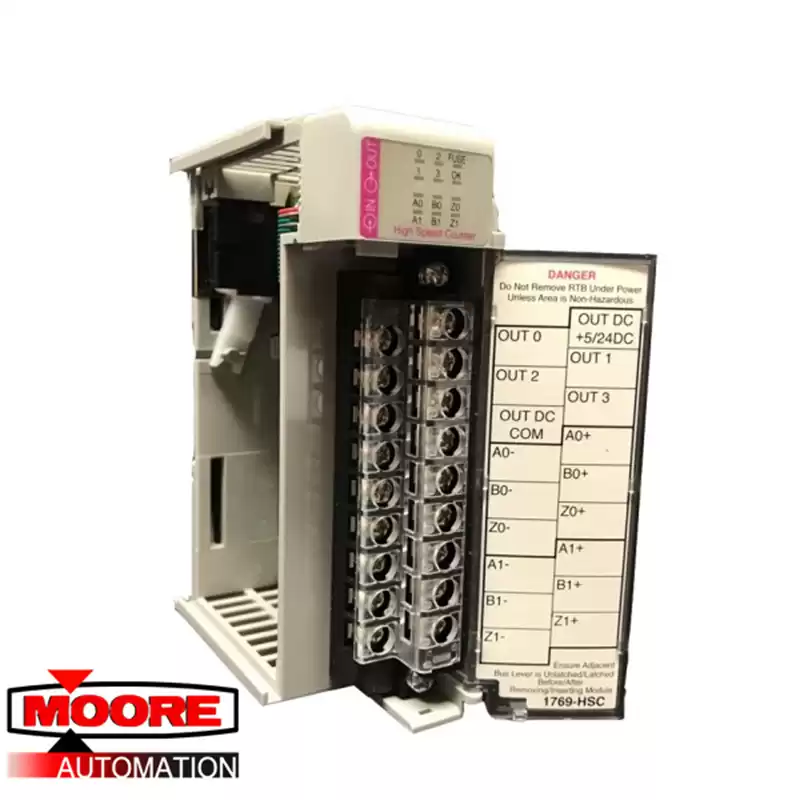

The Allen-Bradley 1769-HSC is a Compact I/O module that is used to interface signaling devices with high-frequency switching. Specifically, this module is typically used for counter applications, totalizer requirements and position monitoring and control.
This module is part of the 1769 Compact I/O modules and compatible for use in both the CompactLogix and MicroLogix Programmable Automation Controllers (PAC) and Programmable Logic Controllers (PLC) respectively. It can be used to directly interface with encoders, pulse output of Transmitters and direct connection with fast sensing devices.
The 1769-HSC features Two (2) quadrature (ABZ) differential inputs with input voltage range of 2.6…30V DC. It accepts a minimum pulse width of 250 ns and Pulse separation of 131 ns. The output channels of this module consists of Four (4) physical and Twelve (12) virtual outputs with output voltage range of 5-30VDC. Each channel has a maximum On-state current of 1A per point, for a total of 4 Amperes per module.
