AB | 1769-IF16C | (IN STOCK&READY TO SHIP)



Interface Bridge Module | ControlNet





































AB | 1769-IF16C | (IN STOCK&READY TO SHIP)




Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450



ATTENTION!

PAYMENT: T/T 100% IN ADVANCE

Lead Time : 3-5 Days

Minimum Order Quantity : 1 Piece

Warranty : 1 Year

Shipment: DHL,UPS,FEDEX,ARAMAX,TNT,etc.





1769-IF16C


Brand Name                 AB


Product reference       1769-IF16C

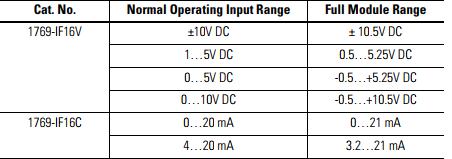

The modules convert and digitally store analog data for retrieval by controllers, such as the CompactLogix or MicroLogix 1500 controllers. The modules provide the following input types and ranges.



The data can be configured as: • engineering Units. • scaled-for-PID. • percent range. • raw/proportional data. Module configuration is normally done via the controller’s programming software. In addition, some controllers support configuration via the user program. In either case, the module configuration is stored in the memory of the controller. Refer to your controller’s user manual for more information

The modules communicate to the controller through the bus interface. The modules also receive 5 and 24V DC power through the bus interface. You can install as many analog modules as your power supply can support. However, the modules may not be located more than eight modules away from the system power supply.


When you cycle power, the modules perform a check of their internal circuits, memory, and basic functions. During this time, the module status OK indicator remains off. If no faults are found during power-cycle diagnostics, the module status OK indicator is turned on. After power-cycle checks are complete, the modules wait for valid channel configuration data. If an invalid configuration is detected, the modules generate a configuration error. Once a channel is properly configured and enabled, it begins the analog-to-digital conversion process. Each time a channel is read, the converted analog data value is tested for an over-range or under-range condition. In addition, the modules support user-configured high and low alarm condition tests for each channel. If any of these conditions are detected, unique bits are set in the channel status words.



Addtional similar product


KUKA MFC2 MFC2-IC3 00-125-236 00-108-766
KUKA ESC-PLATINE
KUKA SPS-DY150H/00-105-904
KUKA KVGA 1.0-71-039-276
KUKA VKCP2
KUKA KPS-600/20-ESC
THERMO 3050
TOKUDA TPG-1RM






If you have any question pls do not hesitate to contact us.We can supply all kind of the

automaiton parts,if you want to purchase

parts pls send the parts model to my mail, I will prompt reply you asa I receive the mail.Hope anyone enquire from us.


 Waiting for your inquiry.
