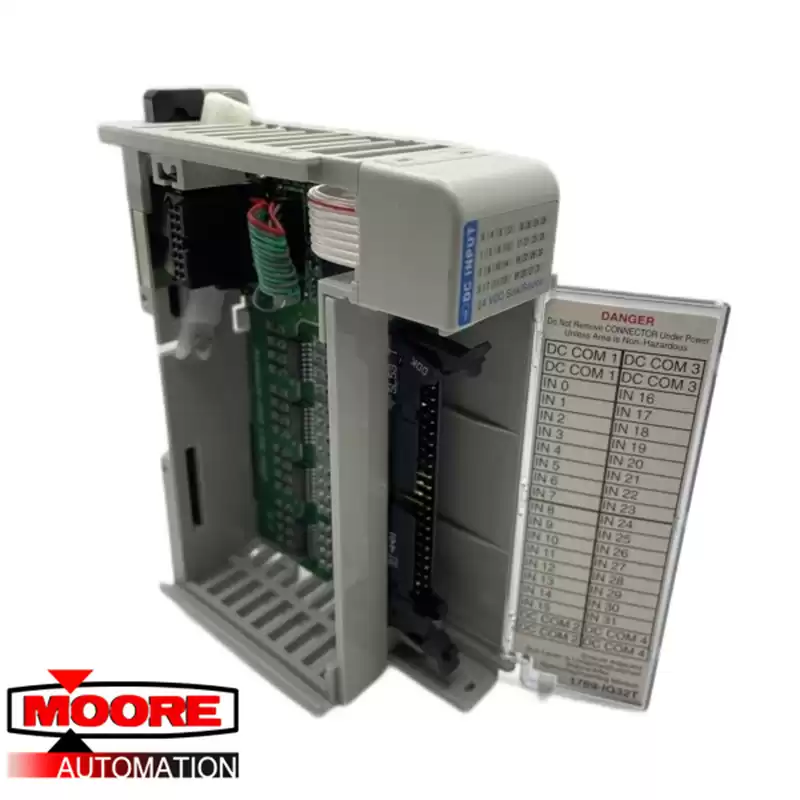

The Allen-Bradley 1769-IQ32T is a Compact I/O module that features a High number of discrete input channels embedded in a compact assembly. This module is Programmable Logic Controller (PLC) component that is used to interface field devices that operate in binary or ON/OFF actions.
The 1769-IQ32T features Thirty-Two (32) input channels for interfacing switches, auxiliary contacts, sensors and other devices. This module is compatible for installation with MicroLogix 1500 and 1769 CompactLogix Controllers.
This compact I/O module due to its high-density I/O capability is shipped with a 40-pin female connector (1746-N3). This connector is an assembly of conductors in a compact terminal that directly installs to the module’s front panel. It has 40 terminals to accommodate each input channels. This prevents the front panel from being covered with signals wires, leaving no room for troubleshooting and future modification. Additionally, this module may use the Allen Bradley 1492 wiring system.
