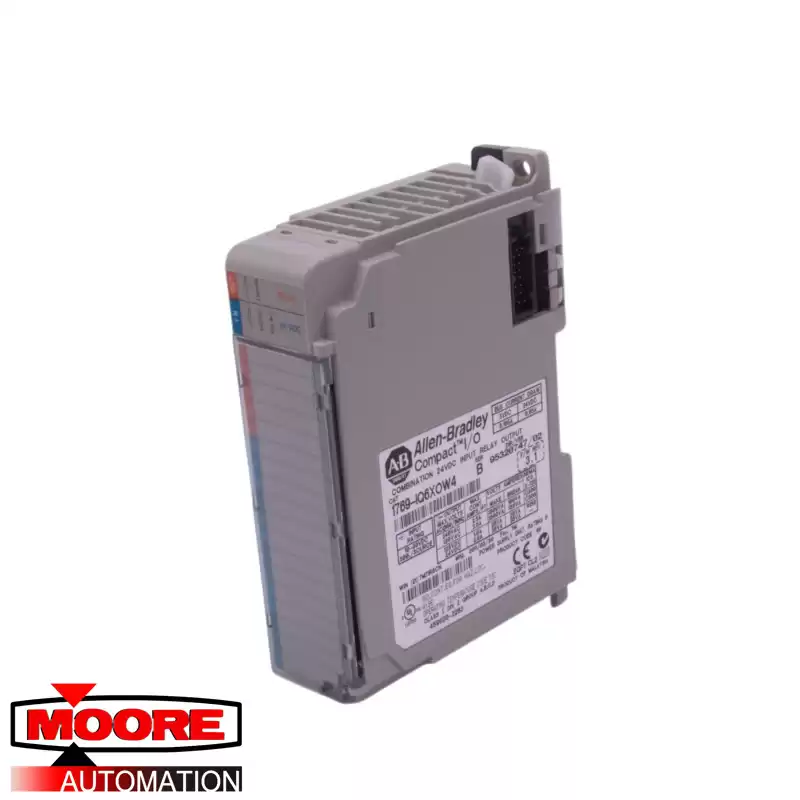

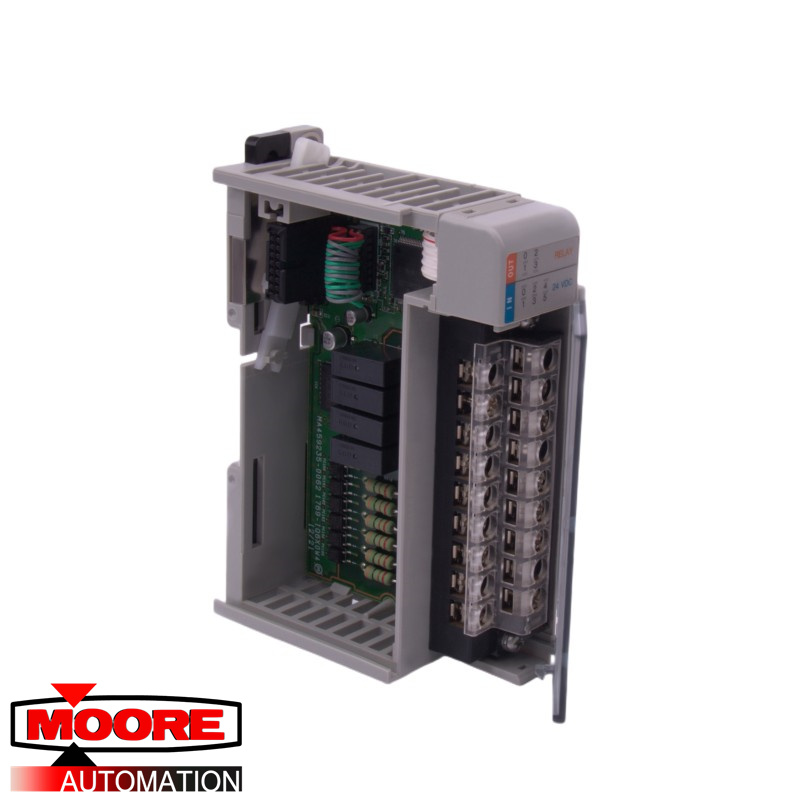

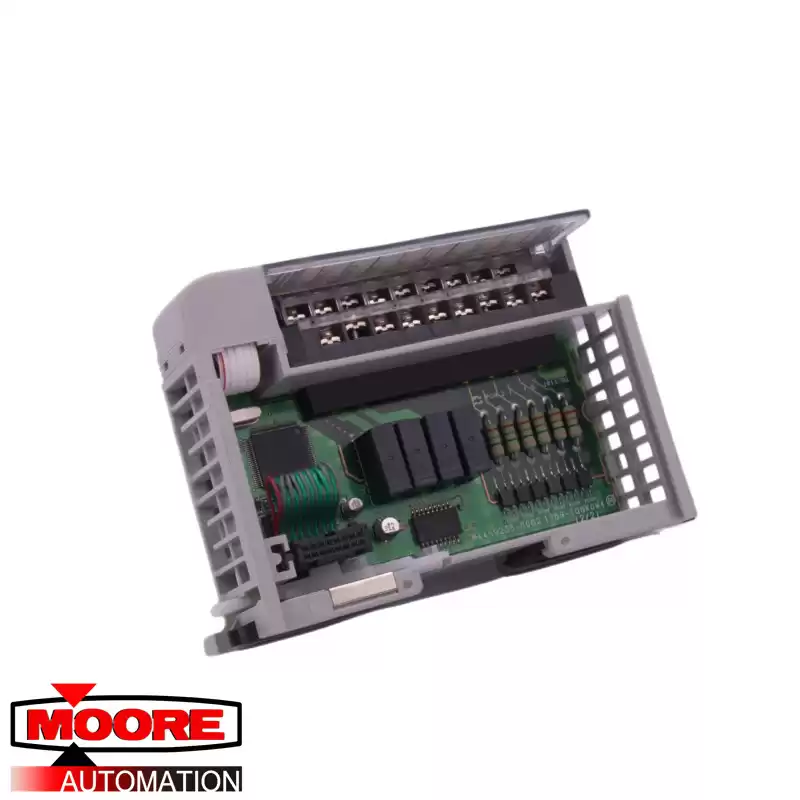

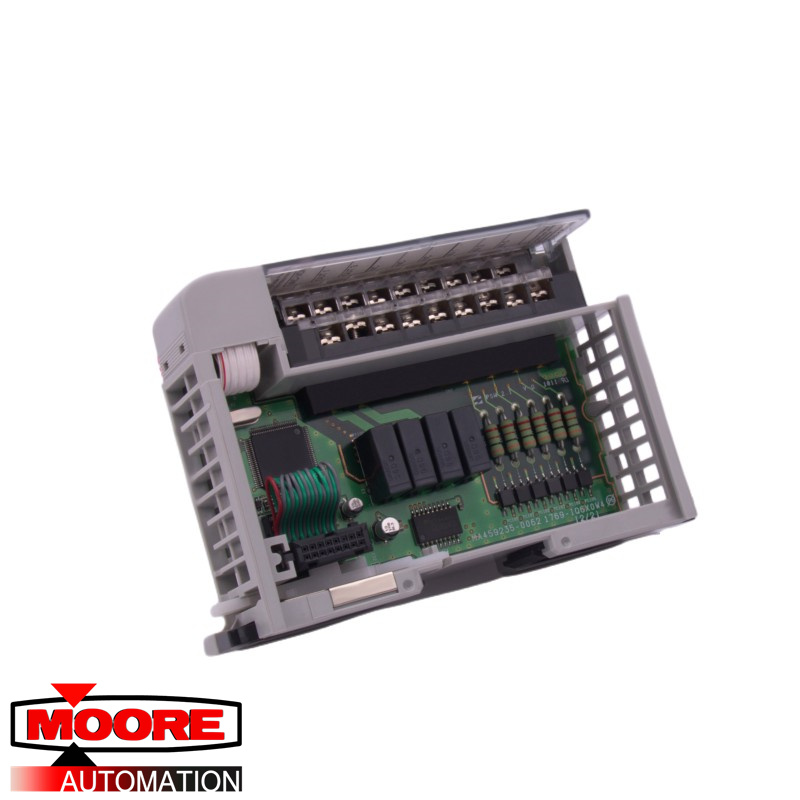

The Allen-Bradley 1769-IQ6XOW4 Compact Digital DC I/O Module is a combination sink/source input and AC/DC relay output module. It can be installed on a DIN rail or a panel using mounting screws. It is designed to fit perfectly with other modules to build an assembly or system. The 1769-IQ6XOW4’s tongue-and-groove design locks it together with other modules. It also features an integrated communication bus that connects one module to another via the movable bus connector.
The 10-Channel 1769-IQ6XOW4 Compact I/O Module comes with six 24V DC sink/source inputs and four AC/DC normally open relay contact outputs. For its input, it has an operating voltage range of 10-30V DC at 30 °C (86 °F) and 10-26.4V DC at 60 °C (140 °F). For output, the operating voltage is rated between 5 and 265V AC and between 5 and 125V DC. It has a maximum inrush current of 250 mA with type 3 IEC input compatibility. Its maximum current per point is 2.5 A while per module the maximum is 8 A.
The 1769-IQ6XOW4 Combination Module is C-UL certified (under CSA C22.2 No. 142), UL 508 listed, and is compliant with CE and C-Tick for all applicable directives. For optimal performance, it should be mounted 8 modules away from the power supply. Ensure enough ventilation and proper location for smooth operation and extended device life.
