Technical Specifications for 1769-L32E
|
Part number
|
1769-L32E
|
|
Manufacturer
|
Allen Bradley
|
|
Country of origin
|
USA
|
|
Status
|
Brand New In Stock
|
|
Year of Production
|
2020-2022 available
|
About 1769-L32E

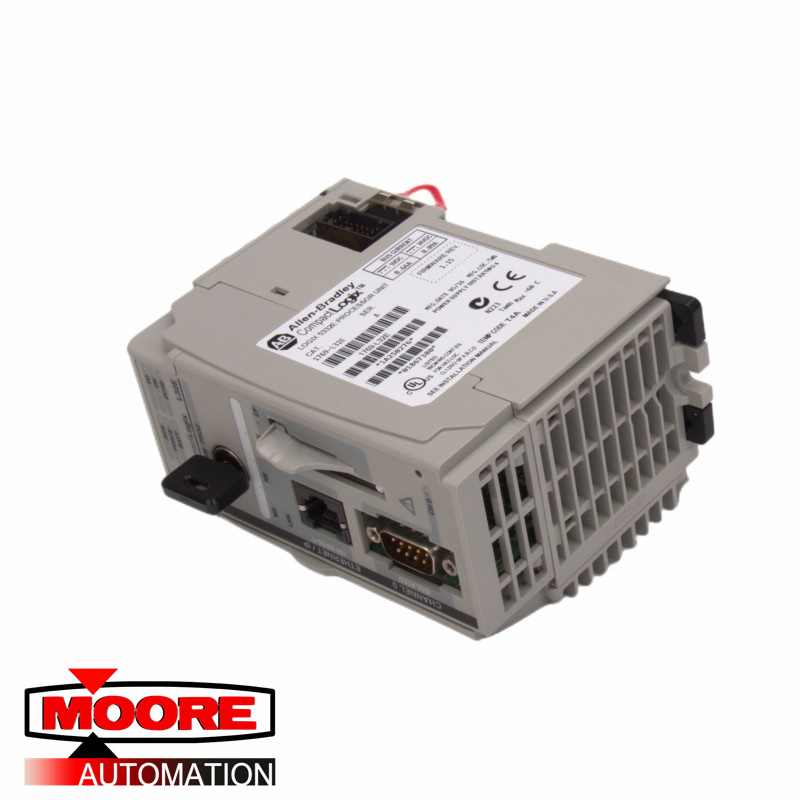

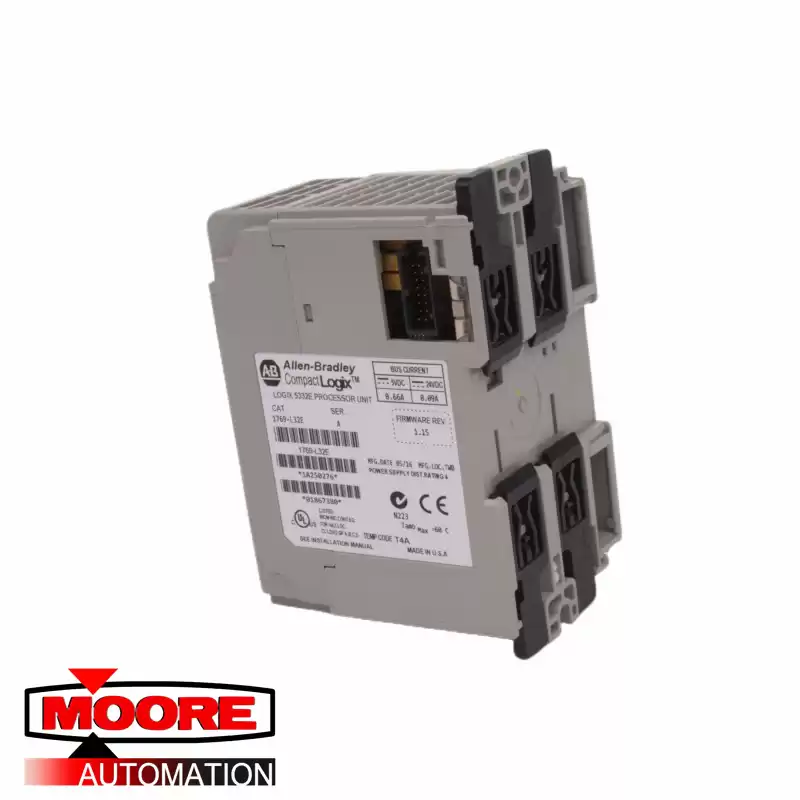

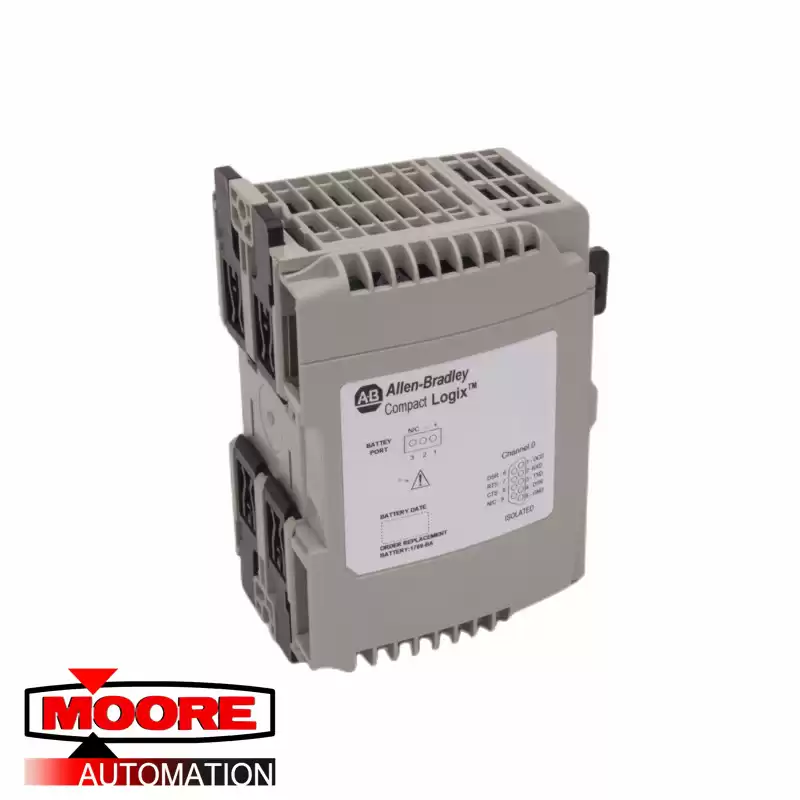

The CompactLogix modular controller with part number 1769-L32E is a Programmable Automation Controller (PAC) that is manufactured by Allen-Bradley. This controller is typically used in machine control and medium sized process applications. The controller has an integrated One (1) RS232 and One (1) Ethernet communications port.
The default configuration of the RS232 interface are DF1 full-duplex, 19.2 Kbps, no parity, Station Address 0, No Handshaking, BCC error detection, Auto Detect embedded responses, 8 Data bits and 1 Stop bits. This default configuration may be manually configured to establish initial communication to the device. If used with RSLinx, auto-configure maybe used to automatically detect the communication settings. This same RS232 port may also be configured as ASCII protocol interface to connect to barcode instruments, typically used in manufacturing process.
The ethernet communication requires initial configuration which may be done by using BOOTP-DHCP or by downloading through the RS232 interface. By using BOOTP-DHCP, an ethernet cable is needed to connect the controller to the BOOTP host.
The Allen-Bradley 1769-L32E compact Logix controller comes in a unique, compact, and cost-effective package. It features an integrated One (1) EtherNet and One (1) serial communication port. It can connect to devices through the 1747-CP3 or the 1756-CP3 cable or an Ethernet cable. It has an integral user memory of 750 KB with an expansion option using a CompactFlash card with part number 1784-CF128.
