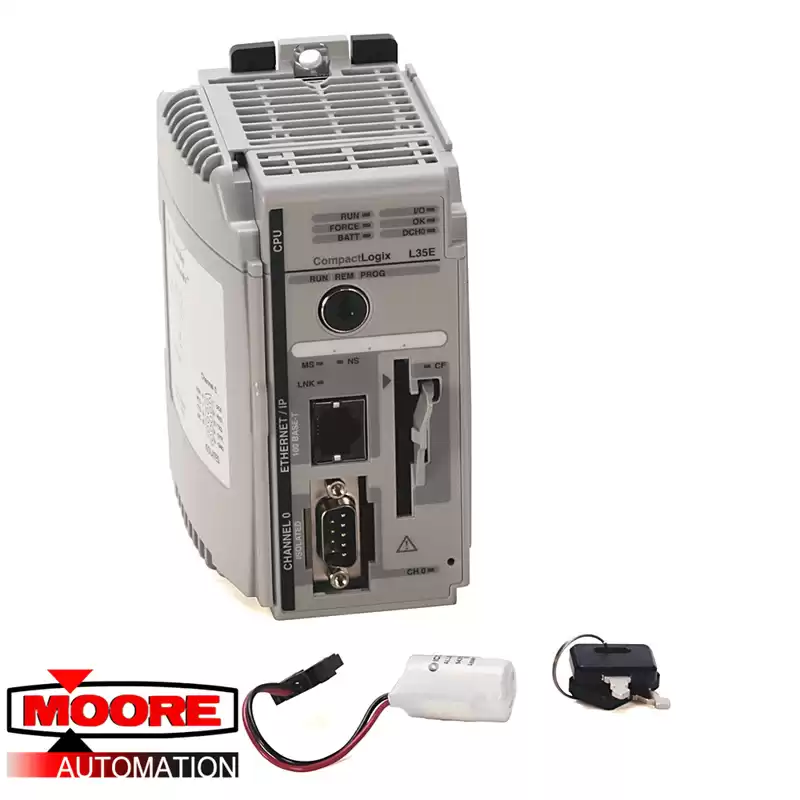

The 1769-L35E CompactLogix controller by PLC provides sophisticated system control and a communication domain and is compatible with various industrial machine systems. It is equipped with Ethernet and an RS-232 serial communication port, with an operational memory of 1.5 Megabytes. The 1769-L35E is compatible with the 1784-CF64 compact flash non-volatile memory module, it can support a maximum of 30 I/O modules, and it has an PLC 1769-BA replaceable battery. The 1769-L35E has an expansion capacity of up to 30 modules and a power supply rating of 4 modules. The 1769-L35E has a draw current at 5 Volts DC of 660mA, a 5.5-Watt heat dissipation rate, 30 Volts of maximum insulation voltage, and a 660 mA backplane current (at 5 Volts DC).Even though this is an end of life product, we will continue selling the 1769-L35E even after it has gone obsolete.
The 1769-L35E can be programmed using the PLC 1747-CP3/1756-CP3 cables over Ethernet and it can be easily mounted either by using a DIN rail (with an operational shock rating of 20 G), or a panel mount (with an operational shock rating of 30 G). The 1769-L35E has an operational vibration of 5 G at a frequency of 10 to 500 Hertz. The 1769-L35E can withstand a 1.1 to 1.8 N-m mounting torque. It has a CISPA11 Class 1 (Group 1) emission certification and an open style enclosure. The 1769-L35E has an approximate weight of 0.30 kilograms (0.66 pounds). It also has an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), a storage temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), and a relative humidity range of 0 to 95%, non-condensing. This unit can be installed with several different power supplies including the 1769-PA4.
