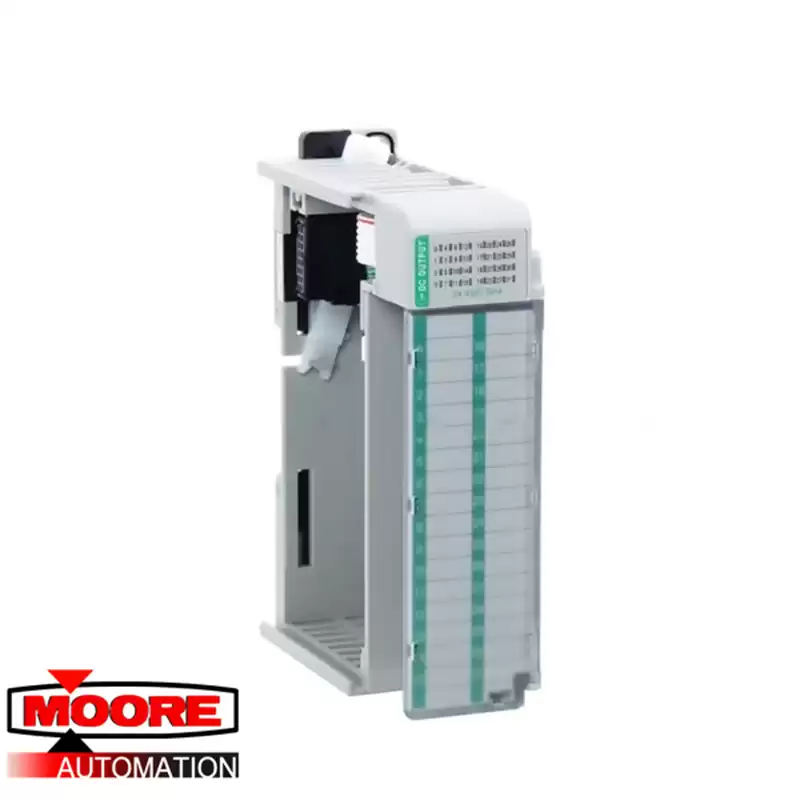

The 1769-OV32T is a DC digital PLC CompactLogix I/O module. It is solid state and runs on 10.2-26.4 volts of DC power. The module 32 terminated outputs arranged in groups of 16. It uses 90-degree Celsius (194-degree Fahrenheit) copper wire and has no enclosure. Because the 1769-OV32T has no enclosure, keep it away from debris, static, and UV radiation during installation, operation, and storage.
The 1769-OV32T is easy to mount on panel or DIN rail because of its tongue-and-groove connectors. These connectors also allow the module to connect to other I/Os in PLC’s 1769 series.
The 1760-OV32T I/O can use a variety of applications including MicroLogix 1500 controllers, 1769-ADN DeviceNet adapters, 1769-AENTR adapters, and CompactLogix controllers. It can take wire sizes between 14-22 AWG for solid wire or between 16-22 AWG for stranded wire.
