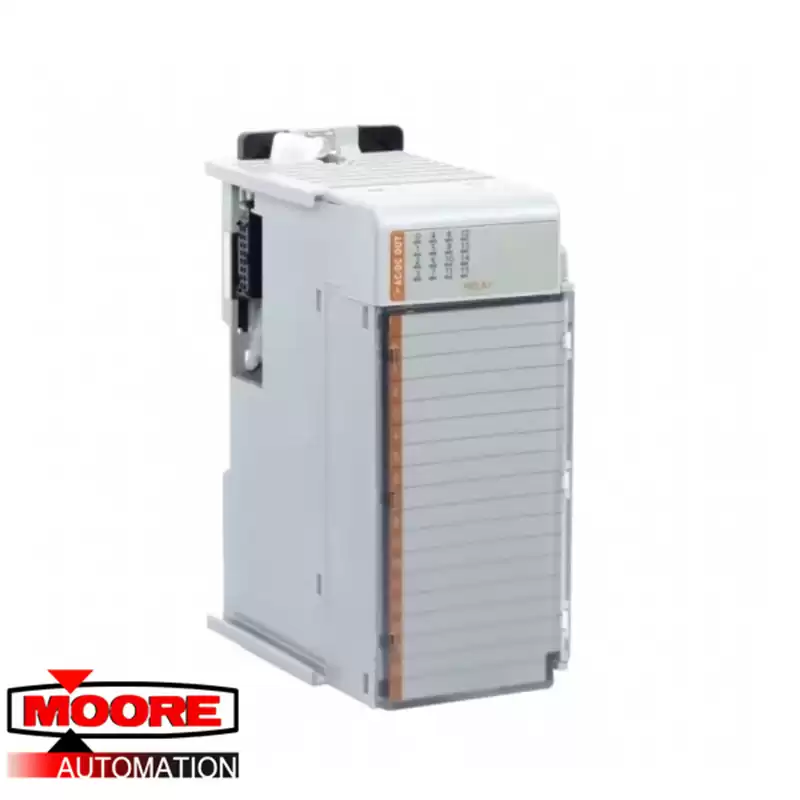

The 1769-OW16 is a Sixteen (16) channel Relay output module. This module is manufactured by Allen-Bradley for the 1769 CompactLogix product family. This module has Two (2) groups of Eight (8) channels each. This input groups are individually isolated which permits the group to operate with different or similar voltage category.
This module has Sixteen (16) form A dry contacts, with each channel capable of up to 2.5A per point. This allows the module to drive electrical and inductive loads with higher current rating. This module is also practical for use in system that operate in different voltage categories.
The 1769-OW16 connects to the MicroLogix or CompactLogix communication bus. Install this module to any adjacent module in the controller assembly. The communication bus also carries the supply voltage that powers the Compact I/O module. It occupies single slot in the chassis of either controller system.
