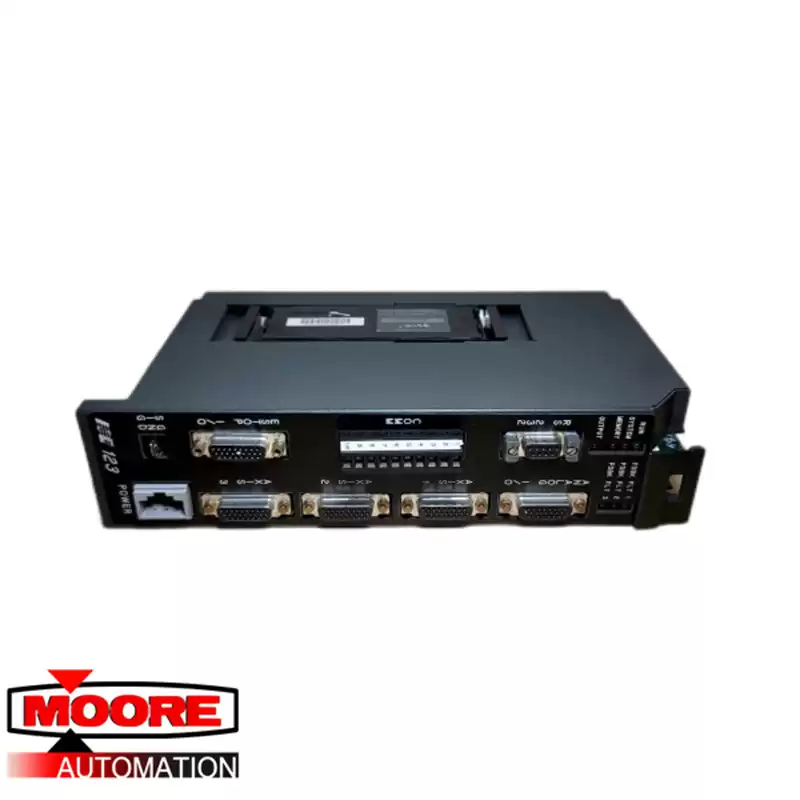

The 1771-HS3A IMC 120 Servo Controller Module by PLC is a 3-axis servo controller module specially designed for use with the 1771 I/O chassis series and it consists of a memory module, a power module, an encoder module, a resolver, and an optional Hand-Held pendant. The module has similar specifications to most IMC 120 servo controllers with an additional 3-axis capability. The 1771-HS3A uses a power supply module (1771-PS7) which supplies 120-240V AC at 1A and 2A, using the 9-pin connected cable (1771-CAS) connected the controller’s power connector and it uses the 1771-HMA 96 KB battery-backed memory cartridges which store the servo controller’s AMP parameters and MML downloaded programs.
The 1771-HS3A uses the RS-232 connector to connect to the connector of the T45 and T50 ODS and by using an optional Hand-Held pendant through the ODS users can modify the system’s variable and parameter values. It comes with LED light indicators which indicate the 1771-HS3A’s various status. The 1771-HS3A uses a resolver feedback and with a resolver excitation module, it can produce Sine and Cosine signals which excite and activate the stator of the resolver. It uses an encoder feedback which provides 10V DC isolated outputs, and a 250 KHz and 20 KHz differential and single-ended inputs. Its operational temperature ranges between 0 and 600C at an ambient relative humidity range of 5-95% without condensation and it is c-UL, C-TICK, and CE-certified.
