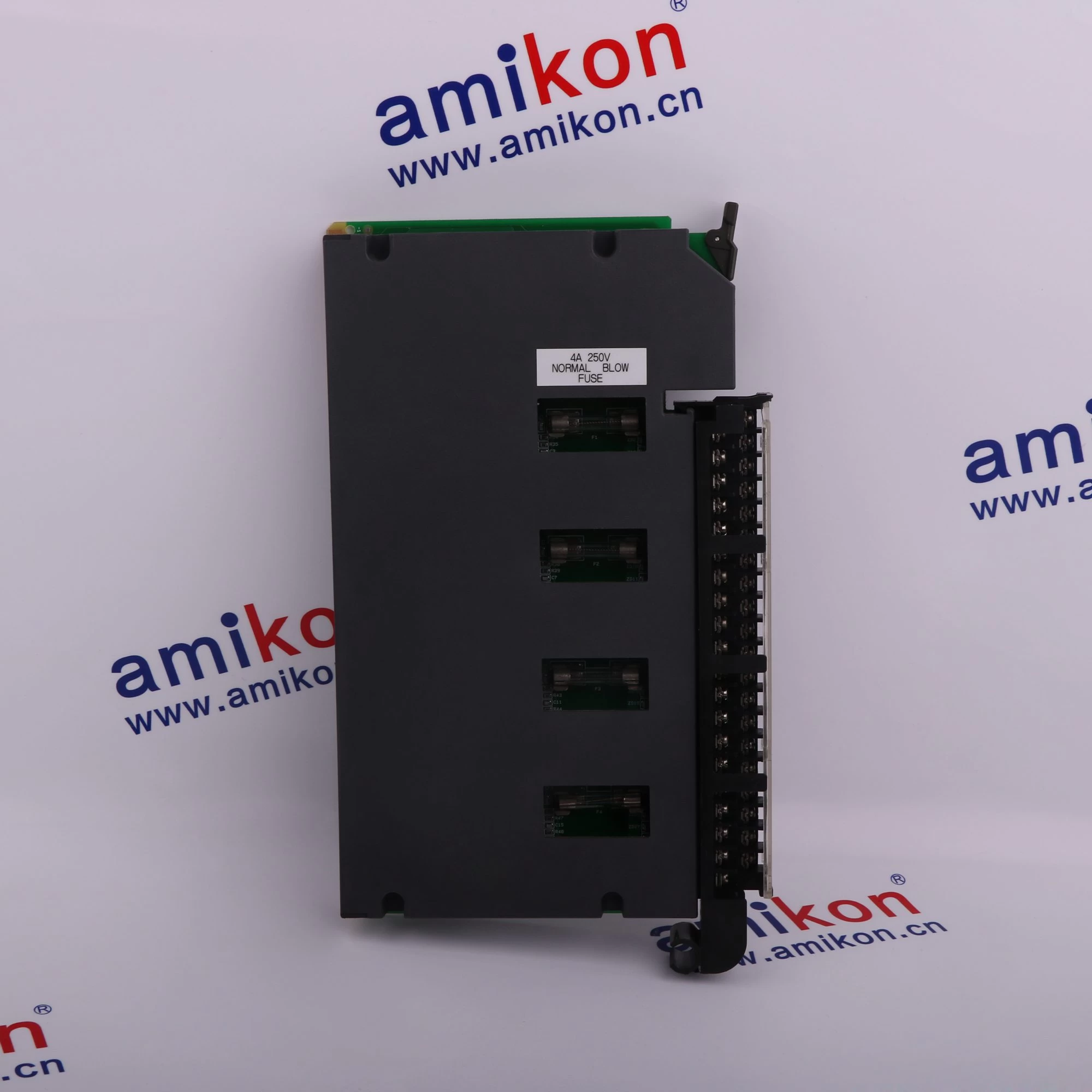

Product data




Main  & Complementary



Outputs per Module

8

Module Location

1771 I/O chassis

Output Voltage Range

92 to 138V ac @ 47 - 63Hz

Output Current Rating

1.5A per output not to exceed 6A per module

Surge Current (maximum)

4A per output for 8.3ms at 120V ac, repeatable every 1 second

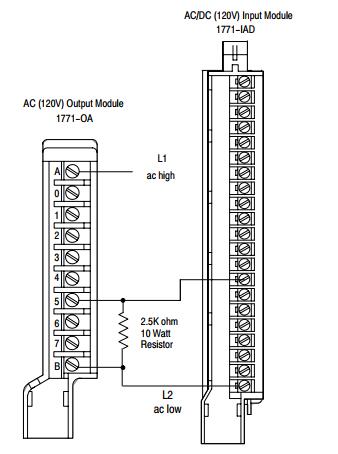

Load Current (minimum)

50mA per output @ 120V ac, 60Hz

On State Voltage Drop

2V at 100mA

Off State Leakage Current (max.)

5mA per output @ 120V ac

Signal Delay Off to On

1.0ms

On to Off

8.3ms @ 60Hz

Power Dissipation

10.7 Watts, 2V (max.), 1.1 Watts (min.

Thermal Dissipation

36.6 BTU/hr (max.), 3.4 BTU/hr (min.)

Backplane Current

210mA @ 5V dc + 5%

Isolation Voltage

Isolation meets or exceeds UL Standard 508, and CSA Standard C22.2 No. 142.

Field Wiring Arm

Catalog Number 1771 WA

Wiring Arm Screw Torque

7 9 inch pounds

Agency Certification (when product or packaging is marked)

• CSA certified
• CSA Class I, Division 2, Groups A, B, C, D certified
• UL listed
• CE marked for all applicable directives

Installation Instructions

1771 2.5
