AB 1771-P7/D Power Supply

AB  1771-P7/D  Power Supply

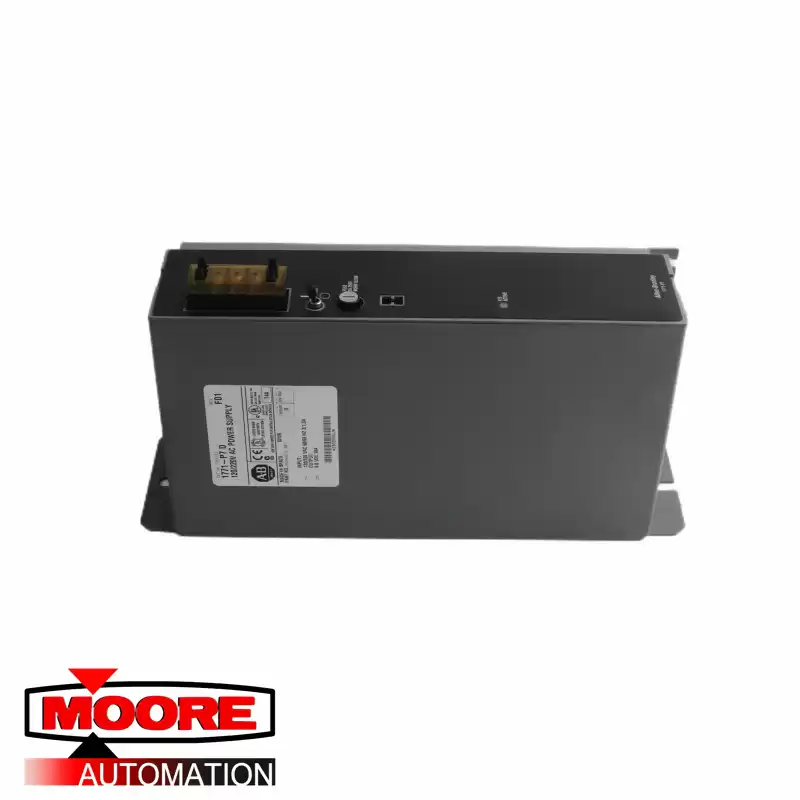

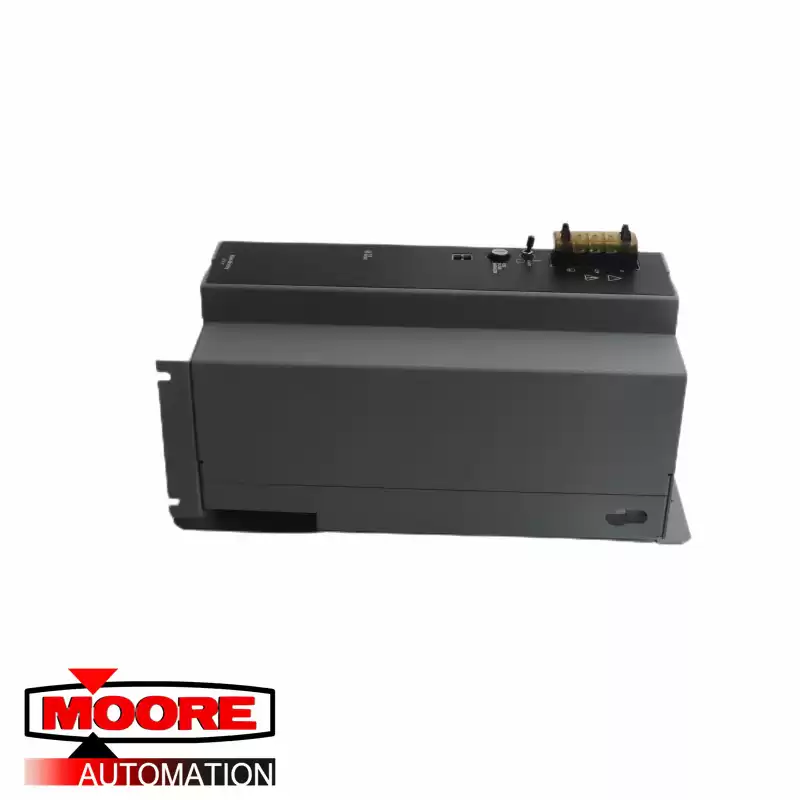

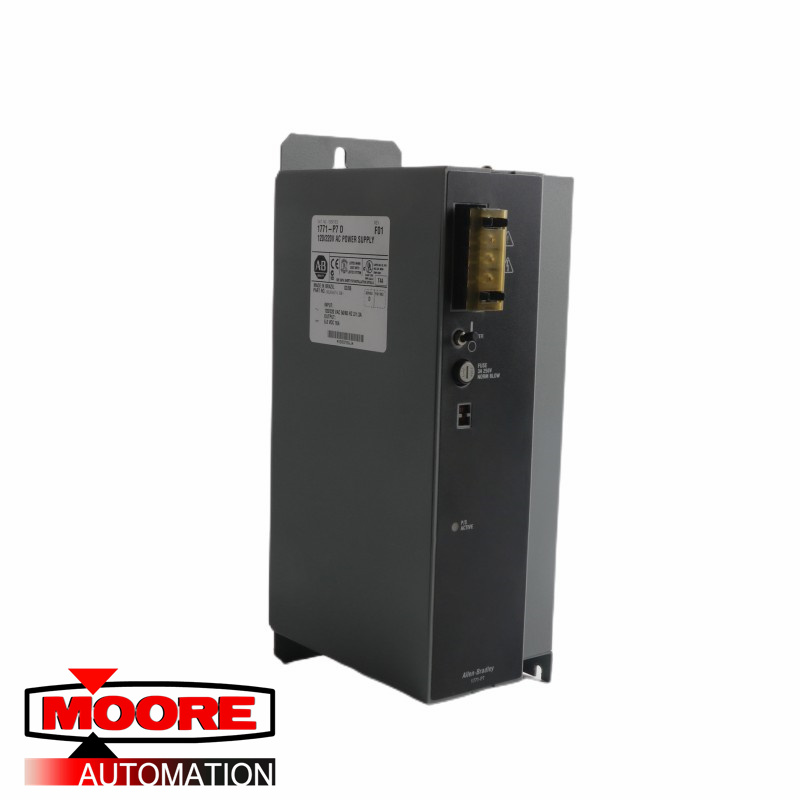

The 1771-P7 is an Allen-Bradley power Supply that belongs to the 1771 Product category. This Power Supply unit is used with 1771-A1B, -A2B, -A3B, -A3B1, or -A4B I/O when used with 771 Adapter module and mini-PLC-2/02, Mini-PLC-2/05, Mini-PLC-2/16, Mini-PLC-2/17, or PLC-5 Programmable Logic Controllers.

This power supply is an stand-alone power supply which means that it cannot be used in parallel with any power supply. Never attempt to install this power supply in this configuration as it may result to controller data loss as well as cause unwanted operation that may pose potential safety risk and unwanted operation stoppage.

This power supply is equipped with a D-Shell power connector that is used to connect to the PLC5 backplane for power distribution. Specific cables compatible with this power supply include 1771-CP2 used with 1771-A3B, 1771-CP1 and 1771-CP3 used with 1771-A1B, 1771-A2B, 1771-A3B1 or 1771-A4B.

When using the 1771-CP2, the power supply module must be within 1.52m or 5ft of the I/O chassis; 1771-CP1 requires within 0.32m or 1.04ftor on the left-side of the I/O chassis while 1771-CP3 requires a maximum distance of 1.68m (5.5ft) of the I/O chassis to mount and connect the 1771 Power Supply.
