Technical Specifications for 1783-BMS10CA
[Origin]：USA
[Status]: Brand New In Stock
[Year of Production]: 2020-2022 availab
[Shipment]: From Xiamen, China to Worldwide
-------------------------------------------------------------
Product Description

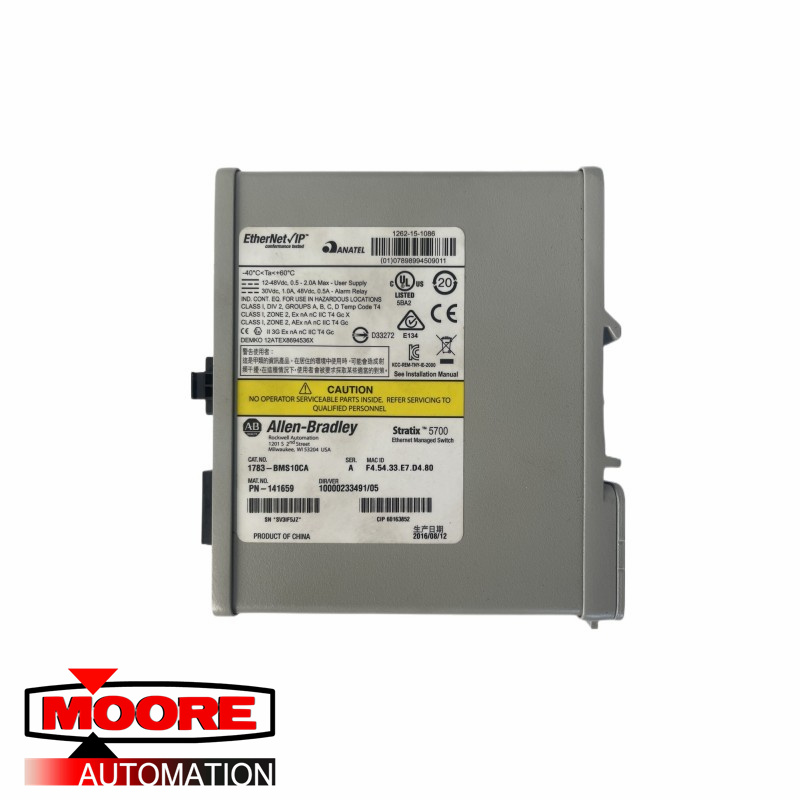

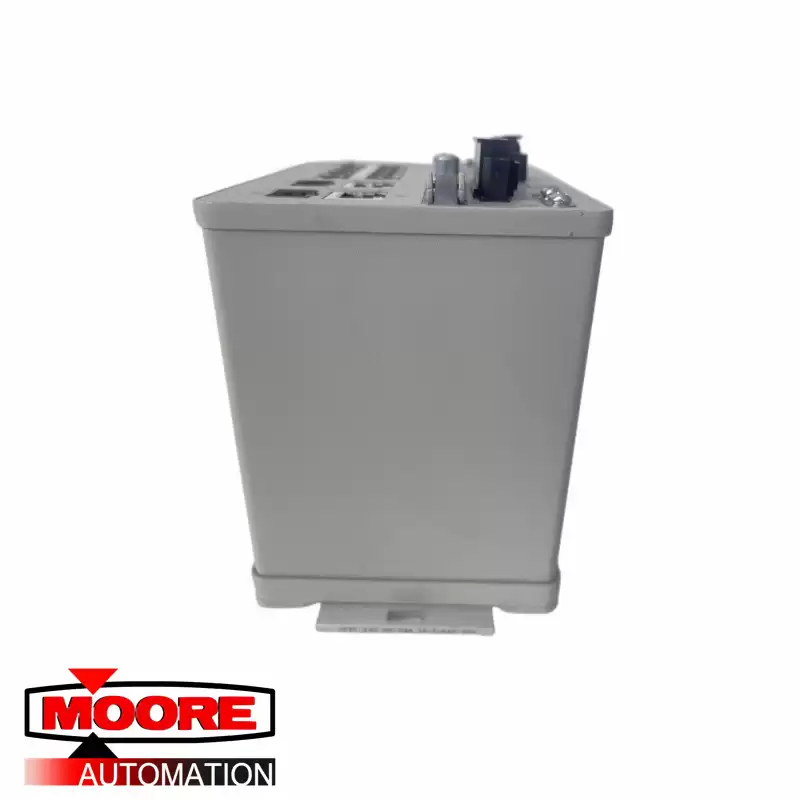

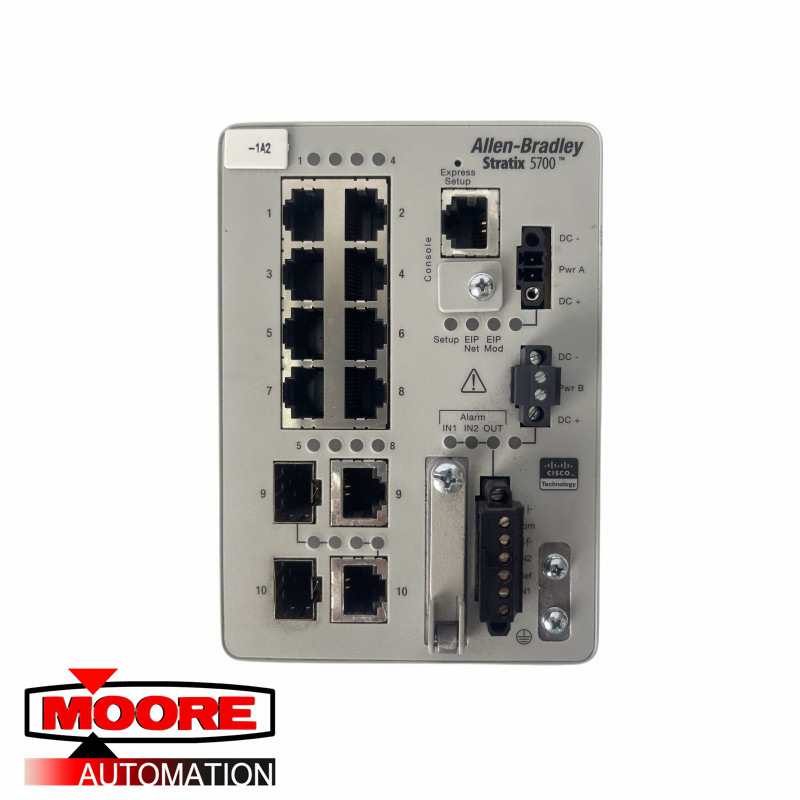

The Allen-Bradley 1783-BMS10CA switch is a managed Ethernet switch with a total of 10 ports. Eight of the ports are copper ports and the other 2 ports are combo ports. The eight copper ports support fast Ethernet communication over an RJ-45 interface. The combo ports support fast Ethernet communication through either an RJ-45 interface or a fiber SFP slot. The 1783-BMS10CA switch belongs to the Stratix 5700 series of Ethernet switches. The alarm relay on the 1783-BMS10CA switch has a current rating of 1 Amp at 30 Volts DC and of 0.5 Amps at 48 Volts DC. The 1783-BMS10CA switch consumes a maximum of 17 Watts of power. The typical power consumption of the switch is 12.5 Watts at 24 Volts DC. The rated power dissipation for the 1783-BMS10CA switch is 17 Watts.
The 1783-BMS10CA switch supports multiple SFP modules, including the 1783-SFP100FX, 1783-SFP100LX, 1783-SFP100EXC, 1783-SFP100ZXC, 1783-SFP100T, 1783-SFP1GSX, 1783-SFP1GLX, 1783-SFP1GEXE, 1783-SFP1GZX, and the 1783-SFP1GTE module. The 1783-BMS10CA switch supports the 1784-SD1 memory card. Industry standards with which the switch complies includes the IEEE 1613 and IEC 61850-3 standards. The working temperature range for the 1783-BMS10CA switch is from -40 to 140 degrees Fahrenheit. The non-operating temperature range is from -40 to 185 degrees Fahrenheit. The enclosure of the switch is open and it measures 5.1 x 3.6 x 4.59 inches. To ensure that the ambient temperature around the switch remains within the recommended limits, Allen-Bradley recommends that a minimum of 2 inches of space be maintained around all sides of the switch. The wire recommended for DC power connections is 20 to 18 AWG copper wire.
