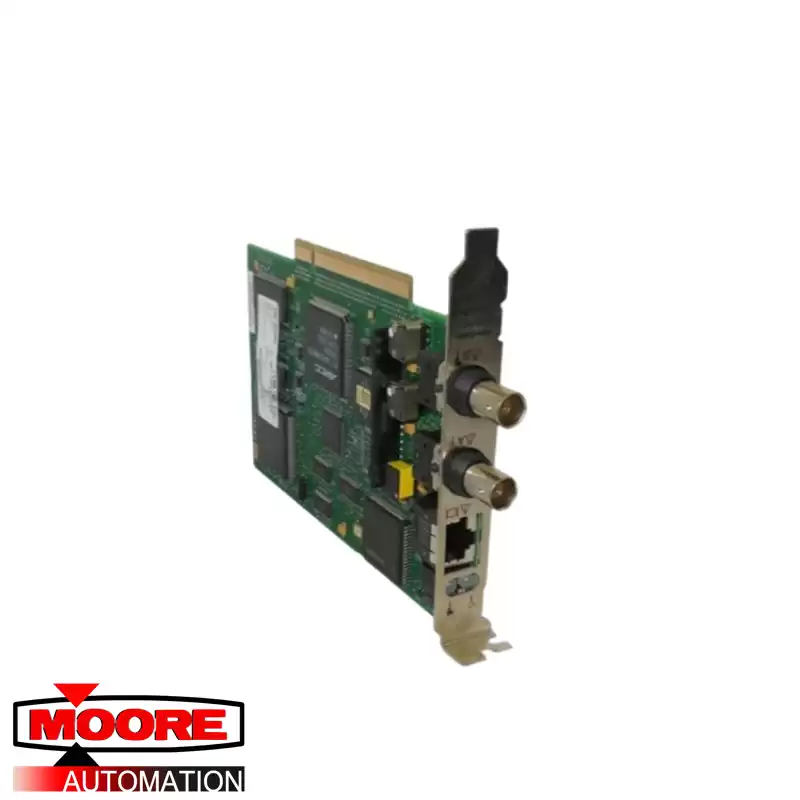

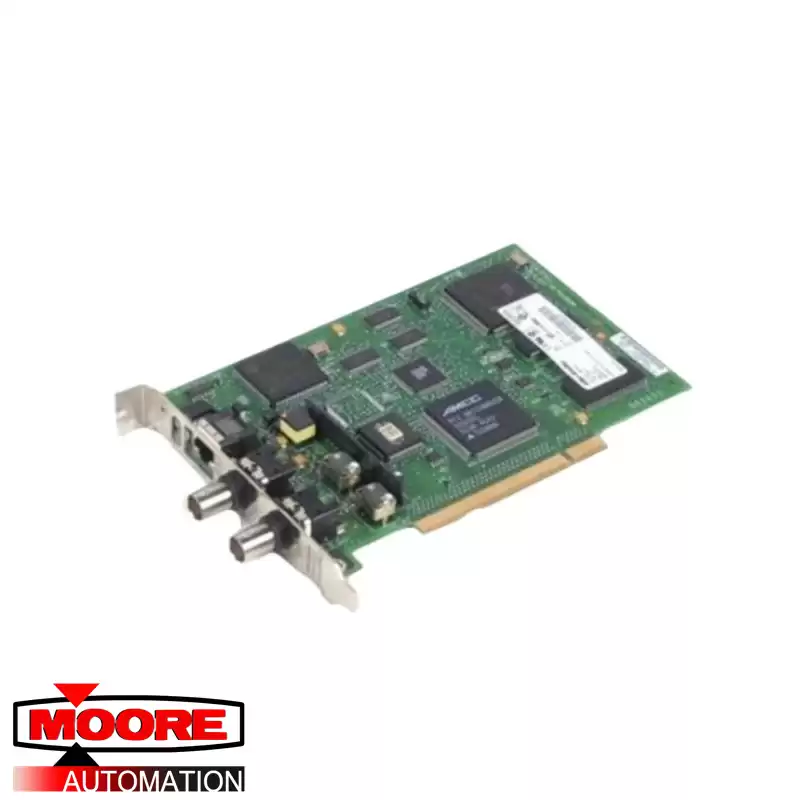

The 1784-PCIS card is an PLC PCI card. The 1784-PCIS card enables computers to interface with ControlNet networks.
The PLC 1784-PCIS card is a ControlNet universal PCI communication card. For installation, the host computer’s expansion slots need to be accessed and then the card needs to be inserted into the computer. The computer must be shut down prior to the card installation. Because the card is sensitive to damage caused by ESD, the following guidelines should be while handling the card: the users should touch a grounded object to discharge static, use grounded wrist straps, avoid touching card components and pins and connectors, work in status-safe areas, and store the card in a static-safe container when not in use. The dimensions of the 1784-PCIS card are 4.2 x 6.5 inches. The 1784-PCIS card has an RJ-45 connector for connecting programming terminals to ControlNet devices. It also has redundant BNC connectors for ControlNet connection.
