AB | 1784-PKTS| (IN STOCK)

PCI Bus Card With RIO Scanner- 1 Channel











Power Supply, Performance, 120W, 24 - 28VDC, 1-Phase




























AB | 1784-PKTS| (IN STOCK)



Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450


ATTENTION!

PAYMENT: T/T 100% IN ADVANCE

Lead Time : 3-5 Days

Minimum Order Quantity : 1 Piece

Warranty : 1 Year

Shipment: DHL,UPS,FEDEX,ARAMAX,TNT,etc.





1746-A7


Brand Name                 AB


Product reference       1784-PKTS

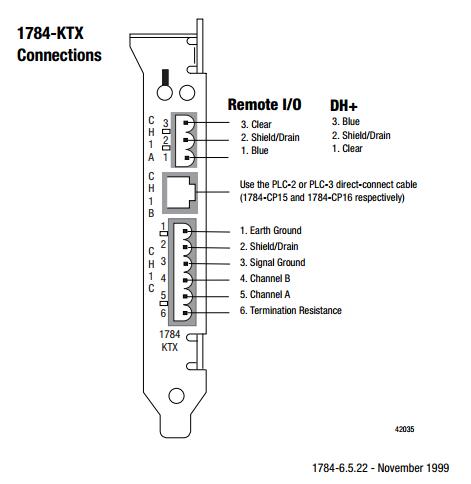

How the 1784-KTx Card Operates

The 1784-KTX and -KTXD cards: • communicate with nodes on Data Highway networks, including PLC-2® , PLC-3® , and on Data Highway Plus networks, including PLC-5® , and SLC 5/04 processors, and SLC 5/01™, SLC5/02, and SLC 5/03 processors (only via 1784KA5) • communicate with SLC™ processors on DH-485 networks • act as a remote I/O scanner The 1784-KTS card acts only as a remote I/O scanner. The 1784-KTx performs data transmission, management, and local network diagnostics. The interface to the host processor is through a board-resident dual-port memory. Allen-Bradley interface software (including RSLogix via RSLinx, AI, 6200, and INTERCHANGE) manages data transmission and reception through dual-port memory. Remember to set the base memory address on the KTx card so that it does not interfere with selected addresses of other expansion cards in your computer. On dual-channel cards, set two addresses. Important: Although the 1784-KTXD has two channels, you cannot use the card to directly bridge between two networks.

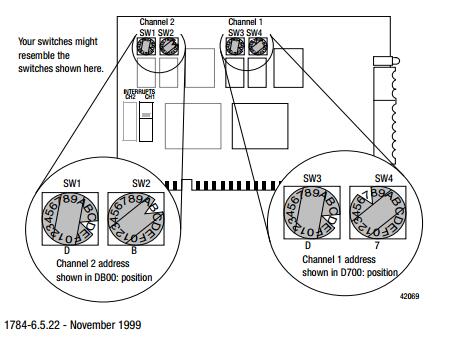

Configure the Card Hardware Before you install the KTx card inside your computer, you must set the: • base memory address - the card’s physical addresses for the expansion memory area of the host processsor’s system memory, that enables the KTx card and the host computer to exchange data through the dual-port interface • card’s interrupt setting Select the Base Memory Address Location The host computer and the KTx card exchange data via a dual-port interface. The dual-port interface requires 4 Kbytes of memory (2 Kbytes for dual-port and 2 Kbytes for the rest of the interface). It begins at the specified base memory address location. You must select an area where there is at least a 4 Kbyte memory block available. If you have MS-DOS 6.0 or later, use the memory option in Microsoft Diagnostics (MSD) to identify available memory.

 Select the Interrupt Setting Important: If you need to use the KTx as a remote I/O scanner within a SoftLogix5 system, you must set an interrupt for the scanner channel Important: When selecting configuration settings, check for conflicts with other interface cards and system memory. If there is a conflict, the system will not operate properly. To avoid the conflict, select a unique interrupt setting for each channel. If another card is already using a channel’s default interrupt, you must pick a new interrupt for the channel.




Our advantages:

Industrial automation spare parts failure often causes tens of thousands of business losses to the enterprise.AMIKON LIMITED is the

world's leading provider of high quality industrial automation spare parts, whether it is a new spare parts, or outdated / discontinued parts, and the technology is dedicated to the normal operation of the enterprise at the best cost, the best quality and efficient way.

Whether it is customer service, work efficiency or delivery speed, we always strive for excellence and to be better and better.

The philosophy of excellence is integrated into all aspects of our

service.AMIKON LIMITED will be the best staff and spare parts together, adhere to provide customers with first-class service.

Professional multilingual service team

A large number of parts inventory, lower the costs of waiting for maintenance

Without any expedited fee, fee or implicit charges

We deliver diversified industrial parts








Addtional similar product



AB            1746SC-INO4I BACHMANN      FS211/N
AB 1746-HSRV BACHMANN    DIO264
AB 1747-AICR BACHMANN    DIO248
AB 1746SC-IA8I BACHMANN    CM202
AB 1746-OB16E BACHMANN    MC205
AB 1746-IA8 BACHMANN    DIO232
AB 1746-FIO4V BACHMANN    SEM201
AB 1756-SYNCH BACHMANN   CNT204








If you have any question pls do not hesitate to contact us.We can supply all kind of the

automaiton parts,if you want to purchase

parts pls send the parts model to my mail, I will prompt reply you asa I receive the mail.Hope anyone enquire from us.


 Waiting for your inquiry.
