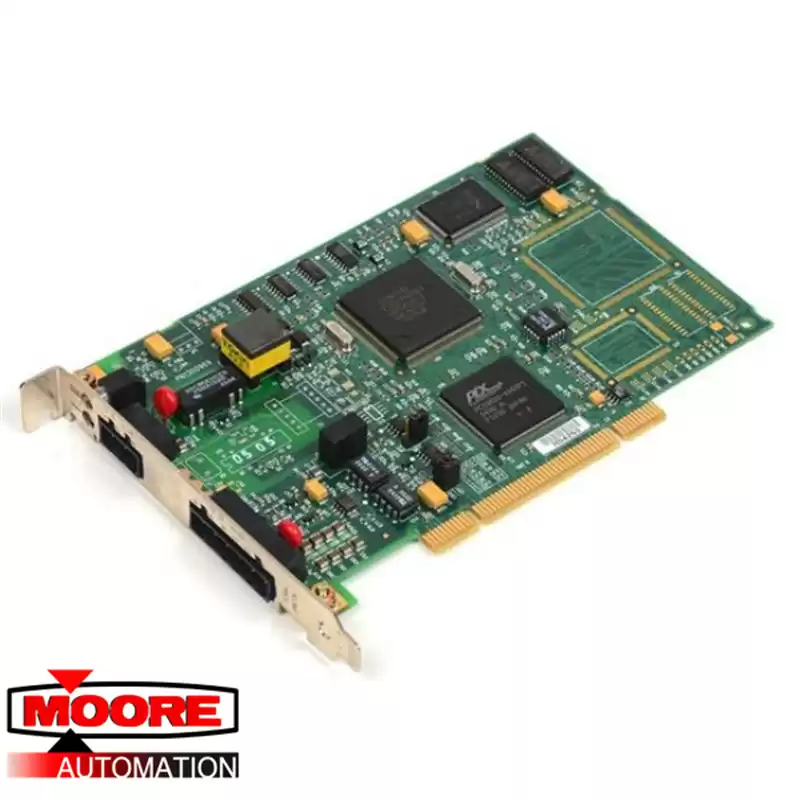

Use PCI technology to interface your PC or PC-based
controller to Data Highway Plus™, Data Highway
485 or remote I/O networks with Allen-Bradley’s
1784-PKTx family. This family of PCI interface
cards leverages PCI and plug and play technology.
All three cards allow for the automation of base
memory addresses and interrupt requests.
Features/Benefits
• provides a single channel for selective support of DH+, DH485, or remote I/O
• two physical communication ports associated with a single
protocol channel provide connections to networks
• can be configured to support a Man/Machine Interface
(MMI) operating on either DH+ or DH-485 networks, or as a
scanner module on the remote I/O network
