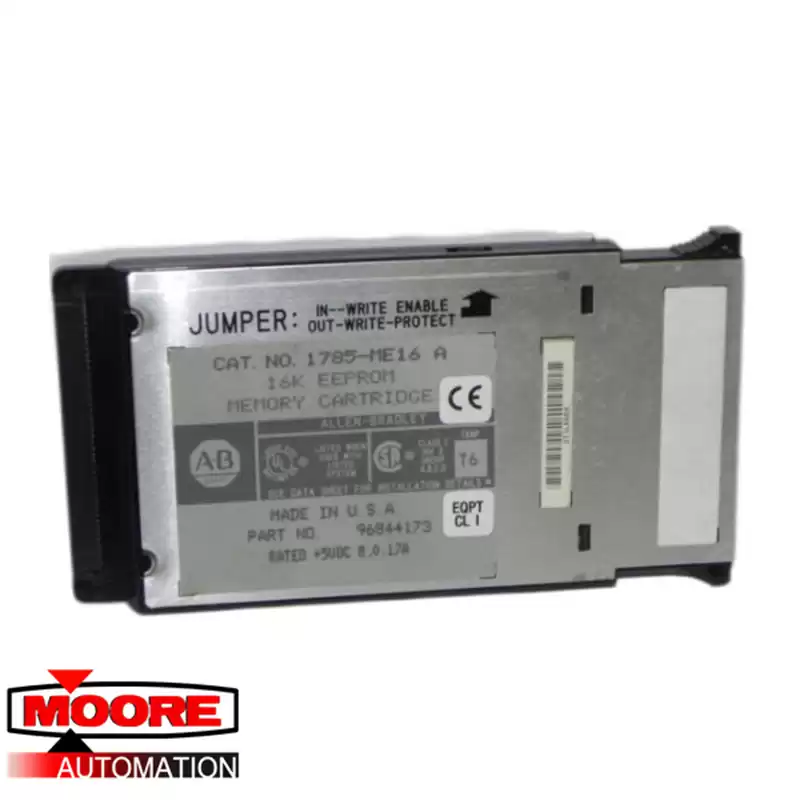

The PLC 1785-ME16 PLC 5 Memory Device has a memory of 16 K words. This module is an EEPROM module. This module has user-modifiable ROM which can be erased and reprogrammed repeatedly. The 1785-ME16 can be used as a backup device. The operating temperature of the 1785-ME16 is 0-60 °C (32-140 °F). The storage temperature is -40-85 °C (-40-185 °F) and the relative humidity range is 5-95% without condensation. The PLC 1785-ME16 has an operating shock of 30.0 g (3 pulses, 11 ms). The nonoperating shock of this module is 50.0 g (3 pulses, 11 ms). The 1785-ME16 also follows some Electromagnetic Compatibility (EMC) standards. The PLC 1785-ME16 has passed EN 50081-2 EMC - Generic Emission Standard, Part 2 - Industrial Environment regulations. If you are connecting or disconnecting the cable with power applied to this module or any device on the network, an electrical arc can occur and this can cause damage or injury.
The PLC 1785-ME16 is a Memory Module with PLC-5 Programmable Logic Controllers (PLC). This module provides a removable, non-volatile memory amounting to 16K Words. The embedded memory is of Electronically Erasable Programmable Read-Only Memory (EEPROM). It features write protection through the removable jumper installed at the side of the module.
