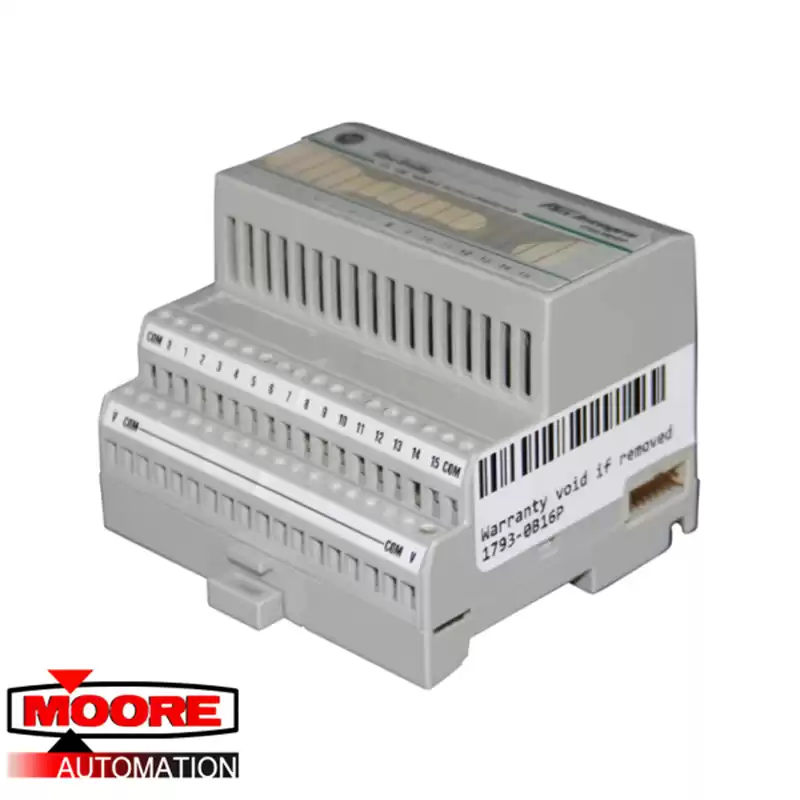

This module mounts on a DIN rail. It connects to an adapter or another FLEX I/O or Integra module. Note: If using this module with FLEX I/O modules, do not mount between FLEX I/O modules. Mount Integra modules to the right of the FLEX I/O modules. To mount this module:
1. Remove the cover plug (if used) in the male connector of the unit to
which you are connecting this module.
2. Position the module on the 35 x 7.5mm DIN rail A (A-B pt. no.
199-DR1).
3. Rotate the module onto the DIN rail with the top of the rail hooked
under the lip on the rear of the module.
4. Press down to lock the module on the DIN rail.
5. Firmly push the module into the adjacent module/terminal base until
the units lock together.
6. Repeat the above steps to install the next module.
7. To remove an Integra module, you must work from the right side and
remove one module at a time. To disengage a module from its
neighbor, place a common flat-bladed screwdriver between the 2
modules and turn 1/4 turn to separate the modules.
8. Then slide the module away from its left neighbor, and release the
locking lever to remove the module from the DIN rail
