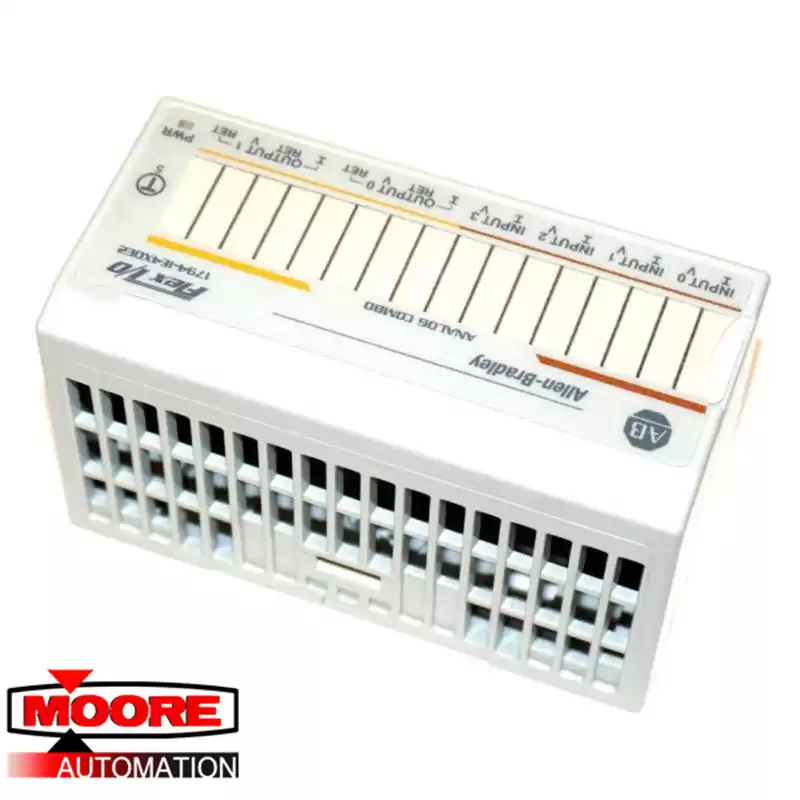

The PLC 1794-IE4XOE2 is a combination I/O module. This module is part of the Flex I/O product family that are popularly used to implement distributed I/O architecture. The 1794-IE4XOE2 features the combined capability of analog and input channels as this module comes with Four (4) single-ended, non-isolated analog input channels and Two (2) single-ended, non-isolated analog output channels.
The analog input channels are configurable to receive analog input signals such as 0-20 mA and 4-20 mA signals and 0-10VDC and +/- 10VDC voltage signals. It has a built-in Analog to Digital converter (ADC) using the successive approximation method. Each channel has a conversion rate of 256μs with step response to 63% of 9.4 ms for voltage and 18.2 ms for current. It has an absolute accuracy of 0.20% Full Scale @ 25°C. This module saves the converted data into left justified, 16 bit 2s complement data format.
