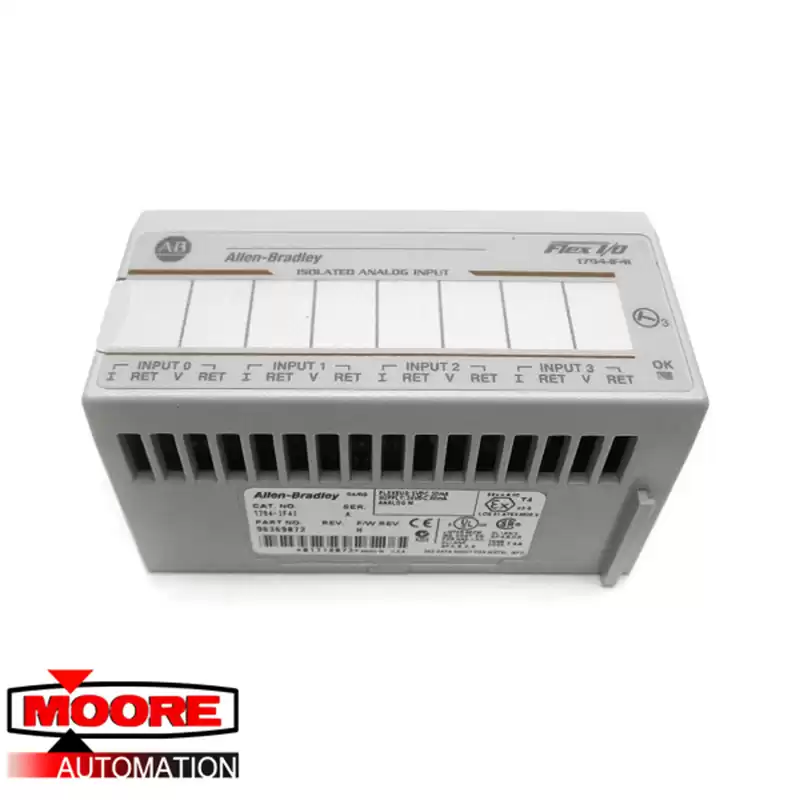

The PLC 1794-IF4I is a FLEX I/O isolated analog input module. This 24 Volts DC analog module has Four (4) differential-ended, isolated inputs and comes with a power and status indicator. It is compatible with a number of terminal base units, namely the 1794-TBT, 1794-TBT3S, 1794-TB3, 1794-TB3S, 1794-TBNF, and the 1794-TBN.
The 1794-IF4I has a 16 bits unipolar resolution, 15 bits + bipolar resolution, and an open-type enclosure. It can be mounted using a DIN rail or a panel. The 1794-IF4I has a sigma-delta input conversion type with an input conversion rate of 2.5 to 7.5 milliseconds for all channels. It arrives factory-calibrated and it can be recalibrated when necessary. Its accuracy is 0.1% full scale at 25 degrees Celsius for both the voltage input and current input. Note that the voltage input accuracy includes gain, repeatability, offset, and nonlinearity error terms. The module has a Flexbus current of 50 mA and a Flexbus voltage of 5 Volts DC.
