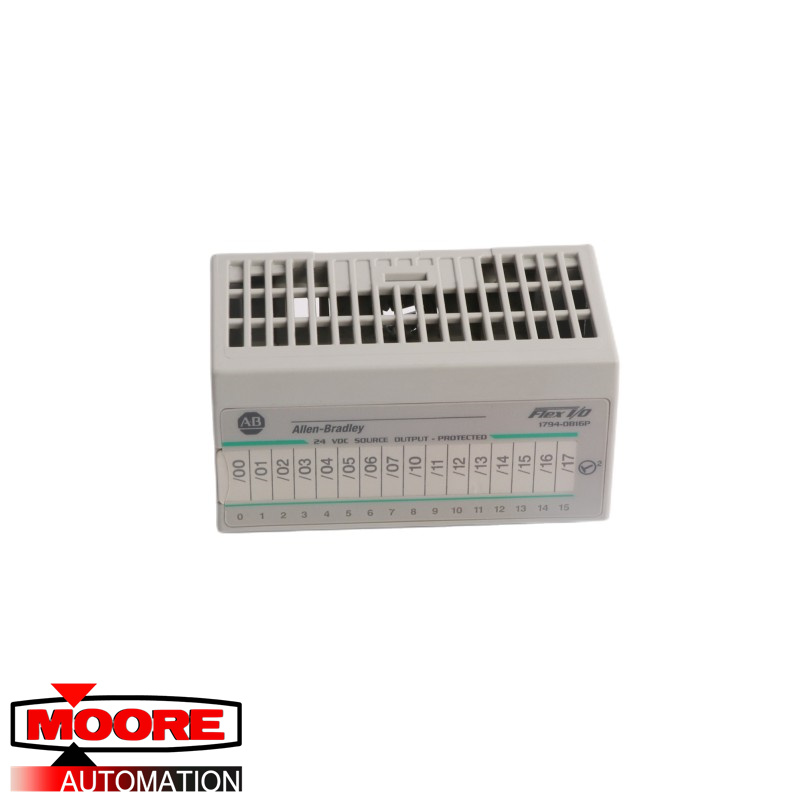

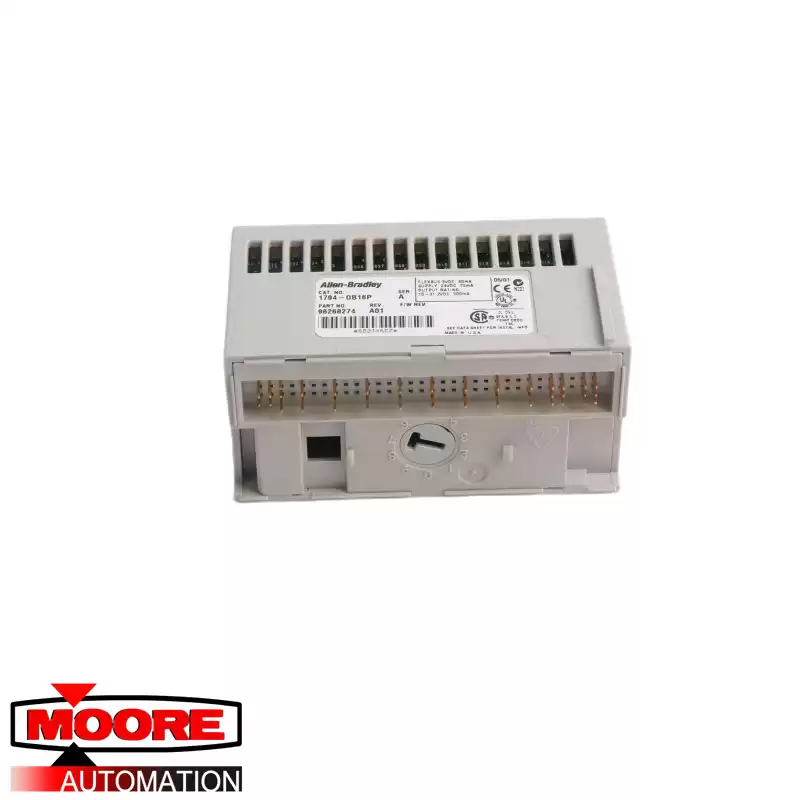

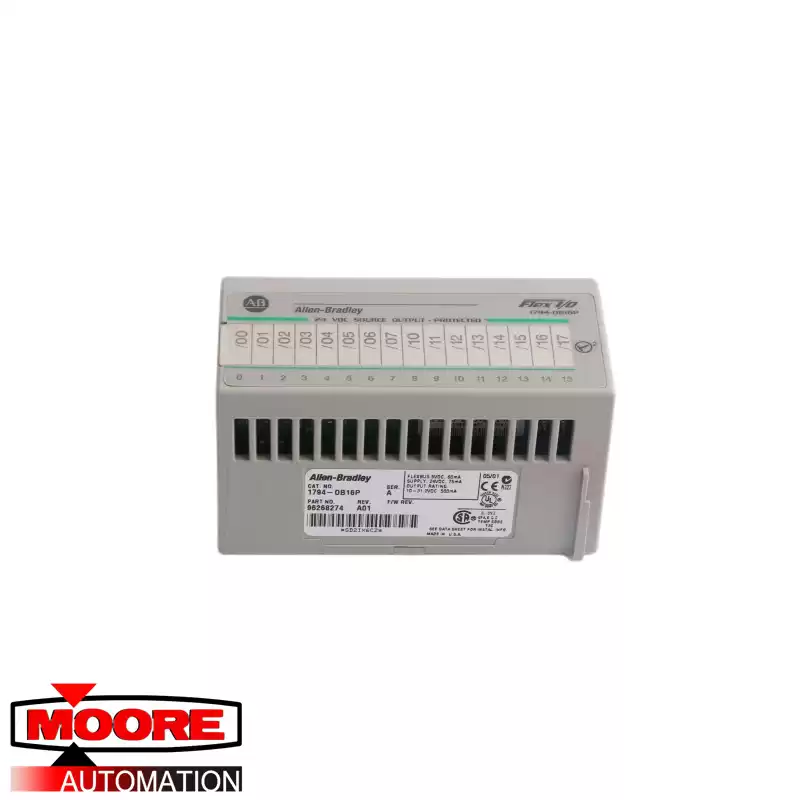

The Allen-Bradley 1794-OB16P is a Flex I/O module that functions as a Discrete output module. This module is used to energize electrical components that operate in 24VDC voltage categories such as indicator light and lamps, solenoid actuated devices, relay coils, and other field instruments.
The 1794-OB16P has Sixteen (16) electronically fused output channels, supporting source wiring configuration. Each channel has a minimum output rating of 1.0 mA and maximum of 500 mA per channel. Each channel is capable of withstanding surge current of 2 A for 50 ms, repeatable for every 2 seconds.
The 1794-OB16P internal circuitry is energized via the Flex I/O bus. It requires a FlexBus current of 60 mA @ 5V DC and with maximum power dissipation of 5.0 W @ 31.2V DC and thermal dissipation of 17.0 BTU/hr @ 31.2V DC. Each channel is equipped with electronic fusing.
