Technical Specifications for 1794-OE12
|
Part number
|
1794-OE12
|
|
Shipment
|
From Xiamen, China to Worldwide
|
|
Manufacturer
|
Allen Bradley
|
|
Payment
|
T/T
|
|
Origin
|
USA
|
|
Status
|
Brand New In Stock
|
|
Description
|
Flex 12 Point Analog Output Module
|
|
Year of Production
|
2020-2022 available
|

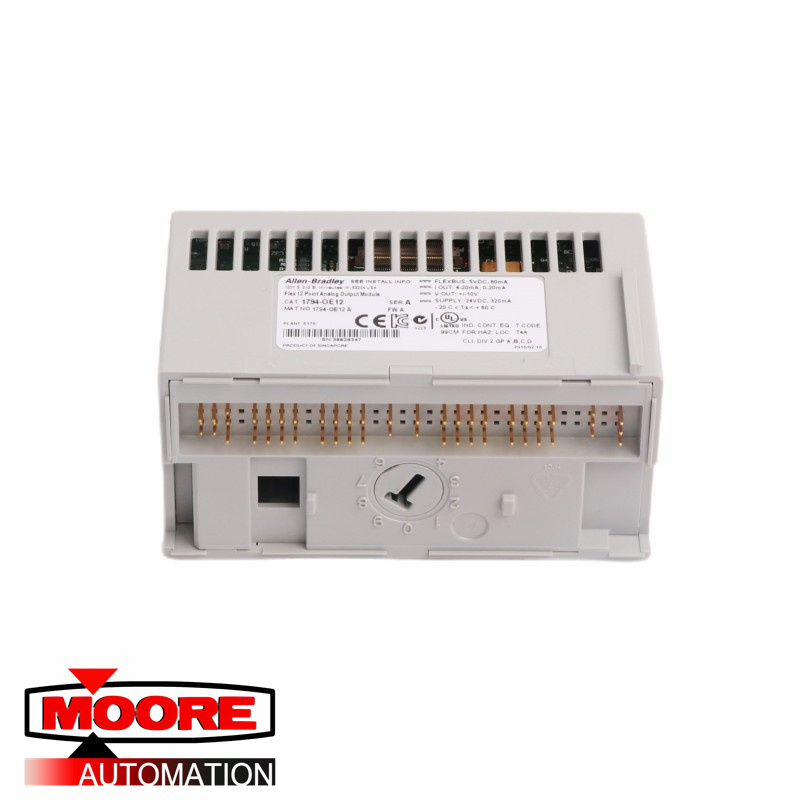

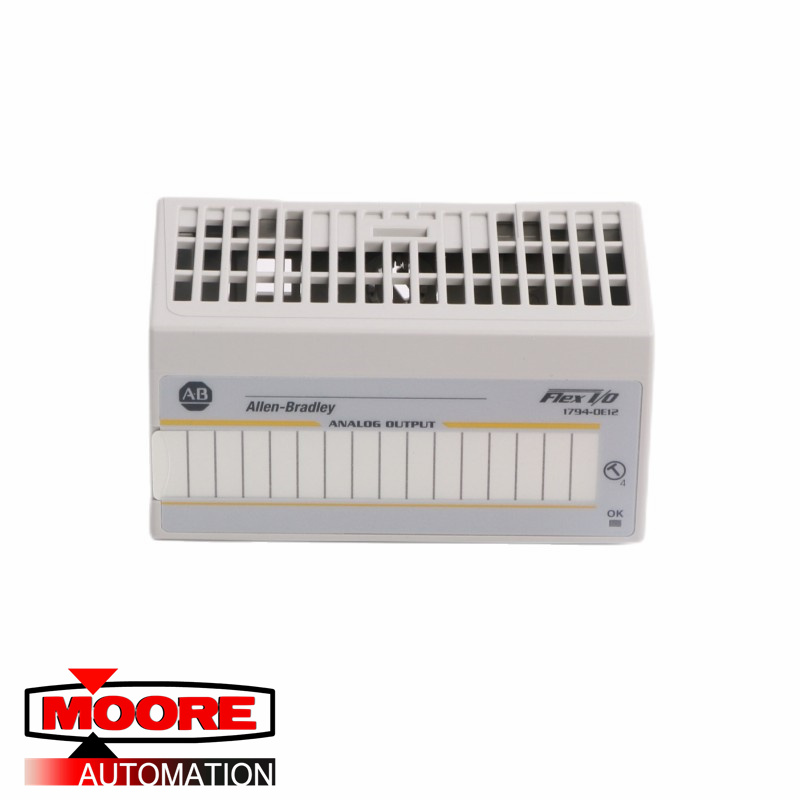

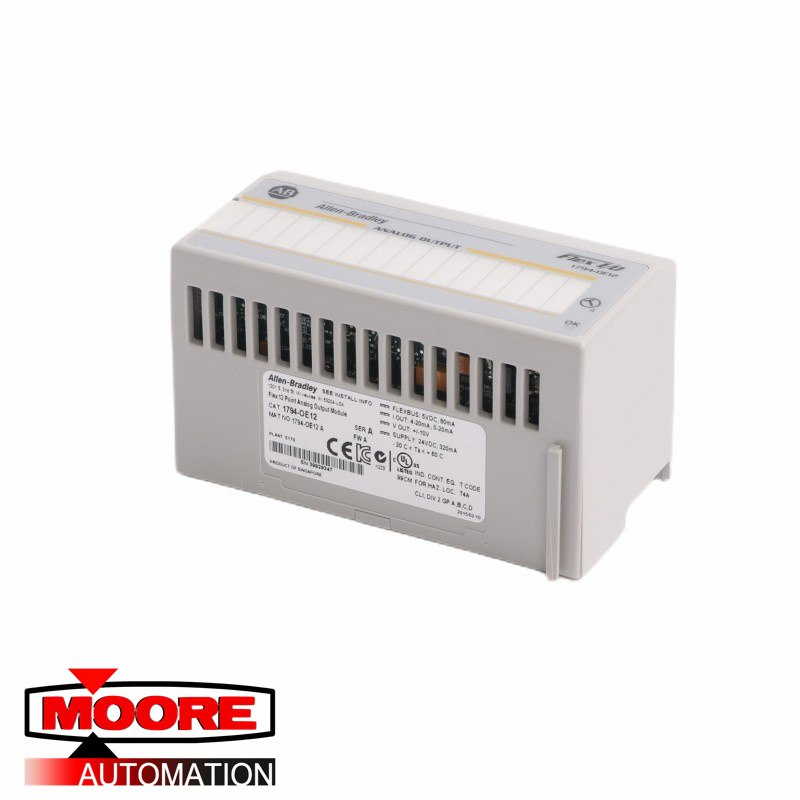

About 1794-OE12
The Allen-Bradley 1794-OE12 is a high-density analog output module that is part of the Flex IO product family. This module features Twelve (12) output channels configurable for 0-20mA, 4-20 mA current signals and +/- 10VDC voltage signals. The module’s channels are non-isolated and supports single-ended wiring configuration.
The 1794-OE12 is used with terminal bases such as 1794-TB3G and 1794-TB3GS with keyswitch position 4. It has an open-type enclosure which means this module and the entire Flex I/O assembly must be installed inside an enclosure that offers adequate protection against industrial elements.
The 1794-OE12 comes with an internally installed analog to digital circuit (ADC) converter. It converts digital data to analog signal with conversion resolution of 16 bit in 2’s complement data format. Each output channels has an absolute accuracy of 0.1% Full Scale @ 25 °C, both for Voltage and Current signals with accuracy drift of 0.004% full scale/°C on both signal configuration.
The 1794-OE12 has a Current draw of 80 mA and supply voltage requirement of 10.5-31.2VDC. It has a power dissipation of 7.68 W @ 24V DC, Thermal dissipation of 26.2 BTU/hr @ 24V DC and isolation voltage of 50V (continuous), Basic Insulation Type. It does not have isolation between channels.It has a physical dimension of 94.0 x 94.0 x 53.3 mm or 3.7 x 3.7 x 2.1 in and built-in group diagnostic LEDs.
