Product Description:

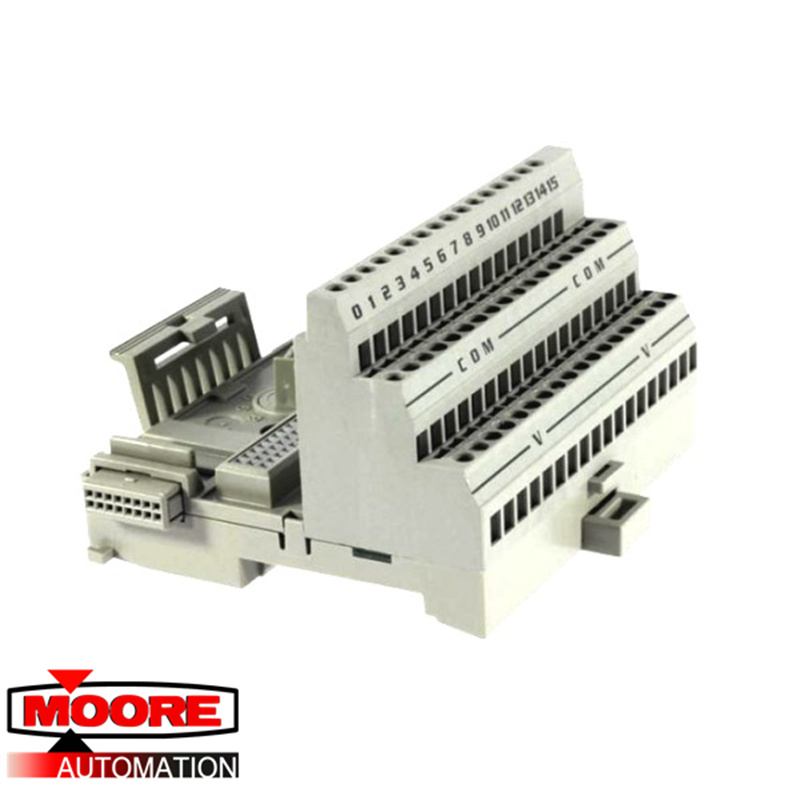

The 1794-TB3G Flex I/O Terminal Base Unit by Allen-Bradley is a terminal base unit module that is installed with a panel or DIN rail and provides terminal I/O wiring connection points. It has 36 maximum input/output terminal points with 2 common terminals and 2 positive voltage terminals. It has 10 Chassis Ground Terminals and is built for uses in 10A and 31.2V DC applications. It provides I/O termination through the Grounded Screw Clamp and has a terminal screw torque of 0.56 x 0.79 Nm (5-7lb-in). The I/O modules are connected to the I/O bus through the 1794-TB3G and it also provides a FLEXBUS current of 640mA at 5V DC with a 2A maximum I/O terminal current.
