Product Description:

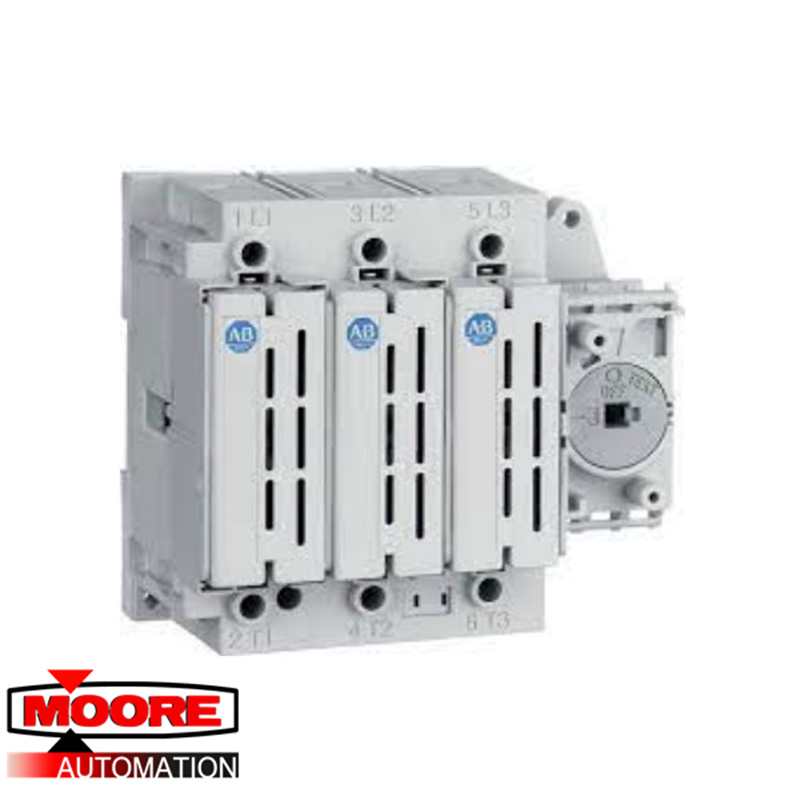

The 194R-J400-1753 switch is an Allen-Bradley 400 Amps disconnect switch. The disconnect switch features a current rating of 400 Amps and the module comes with the panel mounting option. The 194R-J400-1753 switch is a 3-pole disconnect switch and the module comes with a 600 Volts AC voltage rating and a 250 Volts DC alternative voltage rating. The fused disconnect switch has a rated voltage of 690 Volts AC while the short circuit rating is 200 kiloamps. The ambient operating temperature is rated at -20 to 60 degrees Celsius while the ambient storage temperature range is -40 to 65 degrees Celsius. The protection class per the IEC 529 standards is switch bodies with the IP 20 rating and fuse carriers with the IP 30 rating. The 194R-J400-1753 switch supports up to 6 auxiliary contacts.
The Allen-Bradley 194R-J400-1753 switch weighs approximately 4.85 kilograms. The module features a height of 39.4 inches, a width of 31.5 inches, and a depth of 11.8 inches. The Allen-Bradley disconnect switches function by interrupting the power to an electrical circuit or to a group of electrical circuits. The disconnect switches can also be used as the main disconnecting device ,especially on switchboards or as feeder disconnects. The 194R-J400-1753 switch features an interrupting capacity of up to 200 kiloamps, allowing single units to address several applications. To ensure proper operation, the 194R-J400-1753 switch is mounted within an enclosure with disconnect switches also available with a range of flange-mounted handles or rotary-style handles, ensuring compliance with global requirements. The 194R-J400-1753 switch comes with a rotary operational style and it has the flange mounting option, the rotary handle option, and the cable actuation option.
