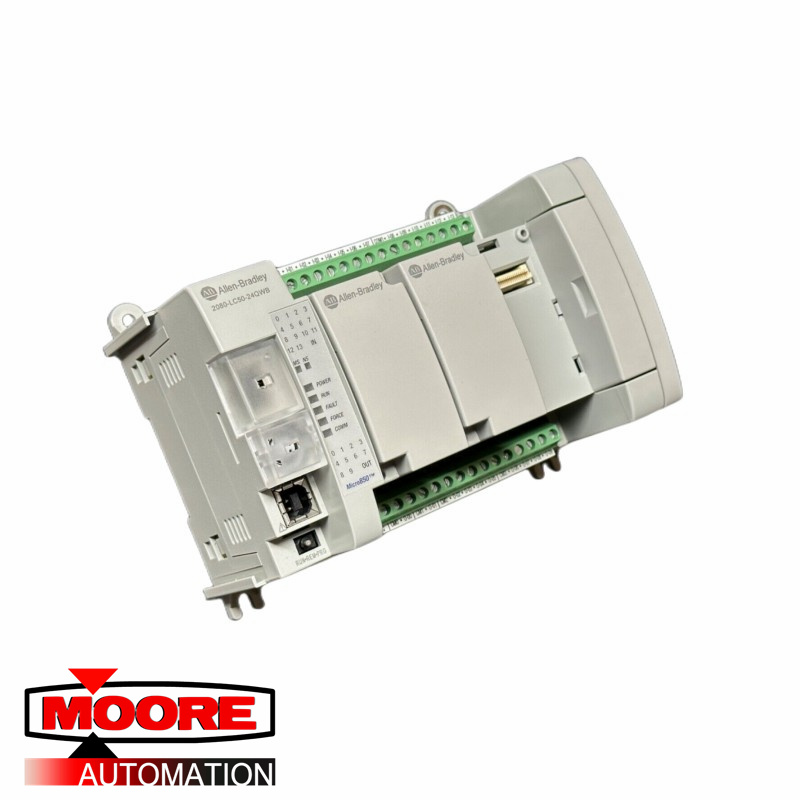

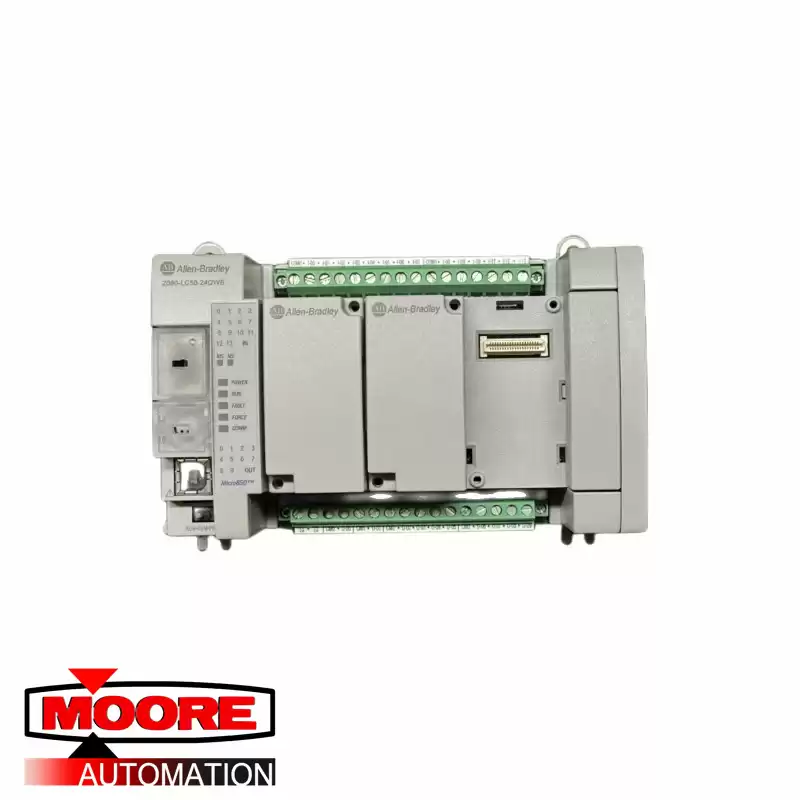

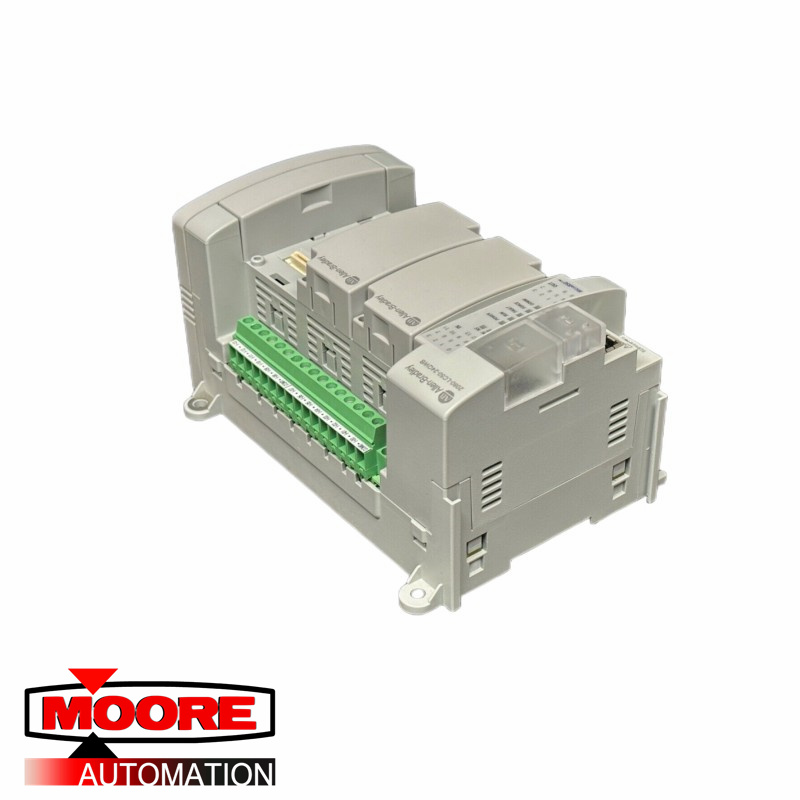

The 2080-LC50-24QWB Micro850 24 Point Controller by Allen-Bradley is an expandable brick modeled controller with 14 embedded inputs and 10 embedded outputs, up to 3 plugin modules, and it is designed specifically for low-budget, stand-alone machines. It has 14, 24V sink/source (high-speed) input circuits, with 10 relay outputs, and a Class 2 input voltage range of 20.4-26.4V DC, with 28W maximum power consumption. The controller provides 250V AC isolation voltage between outputs to Aux, and between network inputs to output, tested at 3250V DC for 60s, using the reinforced insulation type. It has C300, and R150 pilot duty rating, with 7mm (0.28in) insulation strip length, and it is enclosed in an IP20-rated enclosure. The controller has six 24V sink/source standard DC inputs (input 8 and higher), with an ON-state voltage range of 10-30V DC, at 3.74kOhms nominal input impedance, and it has 50V DC working voltage isolation, from input group to backplane, tested at 720V DC for 2s, using IEC Class 2 rated reinforced insulation type. The 2080-LC50-24QWB has 8 isolated AC inputs, with 12/24V AC ON state voltage at 50-60Hz, and an OFF-state voltage of 4V AC at 50-60Hz operating frequency. It has 10 relay outputs with 125V DC maximum output voltage and a maximum load current of 2A. Its relay outputs also have a 5A maximum current per common with a maximum Turn ON/OFF time of 10ms, and it has a maximum MAKE/BREAK amperage of 0.22A, and a MAKE/BREAK real power rating of 28VA. It has an IEC-tested operational temperature range between -4 and 149 oF at 5-95% non-condensing relative humidity, and it is stored between -40 and 185 oF. It can withstand an operational shock of 25G, with a 2G vibration at 10-500Hz, and it is designated with the T4 (North America) temperature code. It weighs 0.423kg (0.933lb), and it is shipped with net dimensions of 90mm x 158mm x 80mm (3.54in x 6.22in x 3.15in).
|
