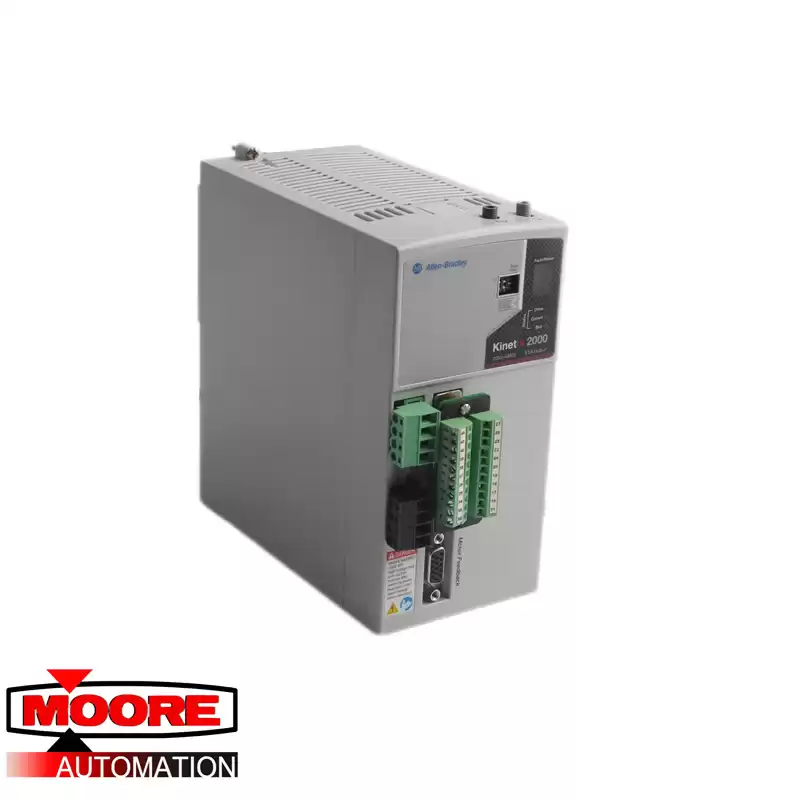

2093-AMxx is one of the series of Kinetix 2000 multi-axis servo drive. It is specially designed to provide a Kinetix Integrated Motion solution for applications. The 2093-AM02 like every product in the 2093-M0x series is made up of several components which include; the Axis Module (AM (double width)) which is a shared 230V dc bus power inverter, which mounts on a Kinetix 2000 power rail with cables. However, the cables are of different types and of different function, but the 2093-AM02 cable, which are the motor power, and the feedback and brake cables, which include integrally molded, and bayonet-style quick connect/quick-release connectors at the motor. The power and feedback cables are made up of flying leads on the drive and straight connectors that allow connection to the servo motors. In addition, the standard feedback cables are made up of 45o angle connectors that connect to servo motors while the optional feedback cables are made up of a straight connector on the motor end and flying leads that wire to a low-profile connector kit on the drive end.
