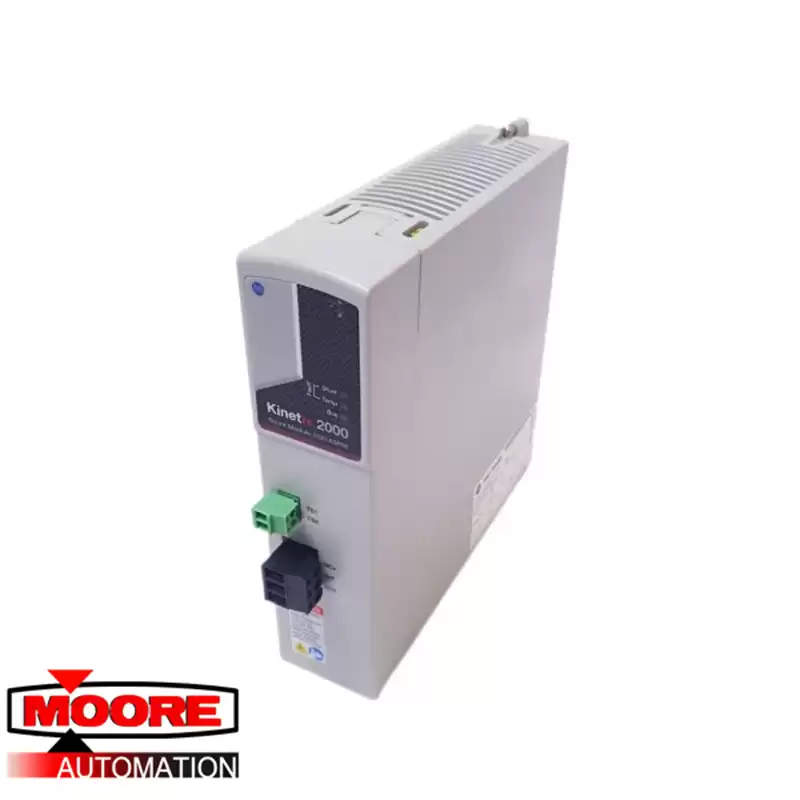

The 2093-ASP06 Kinetix 2000 Shunt Module by Allen-Bradley is a component of the Kinetix 2000 Drive System which is located on any inverter slot (the rightmost slot for the 2093-PRS8) of the 2093 Kinetix 2000 Power Rail and it is suitable for 230V AC applications. It has a drive voltage of 230V AC, with 15Ω internal resistance, and it is capable of delivering 10.9 KiloWatts of maximum power output. The shunt module has a maximum current rating of 27A, and it has a continuous output power of 50W with a capacitance of 164μF. The module is not internally fused and it is built to be compatible with the 2093-AC05-MP1, 2093-AC05-MP2, and the 2093-AC05-MP5 Kinetix 2000 Integrated Axis Modules.
