2094-BC07-M05-S
AB Integrated Axis Module
-------------------------------------------------------------
|
General
|
|
Origin
|
USA
|
|
Status
|
Brand New In Stock
|
|
Year of Production
|
2020-2022 available
|
|
Shipment
|
From Xiamen, China to Worldwide
|
-------------------------------------------------------------
Product Description

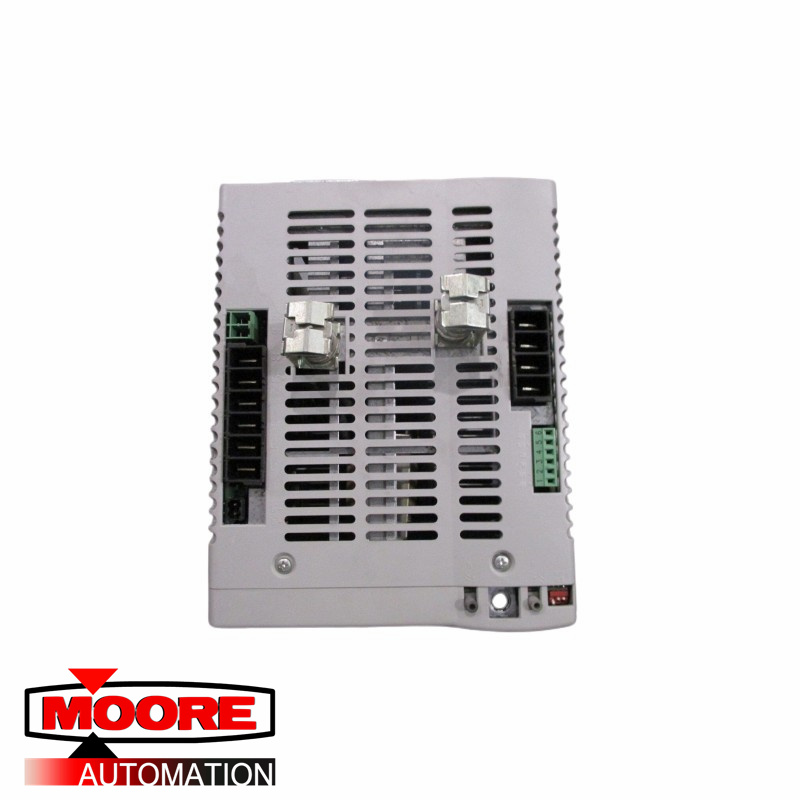

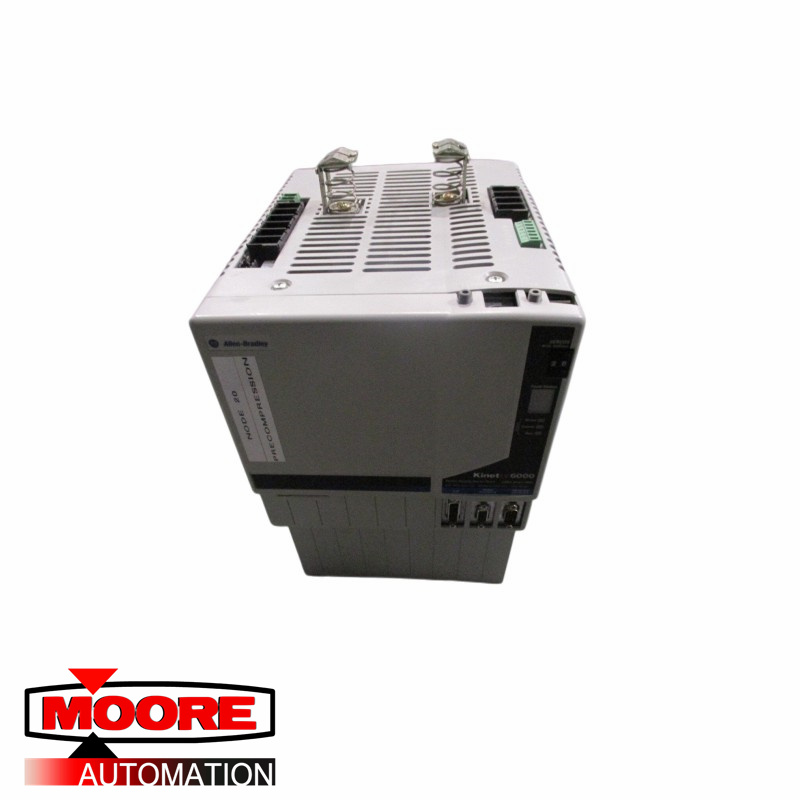

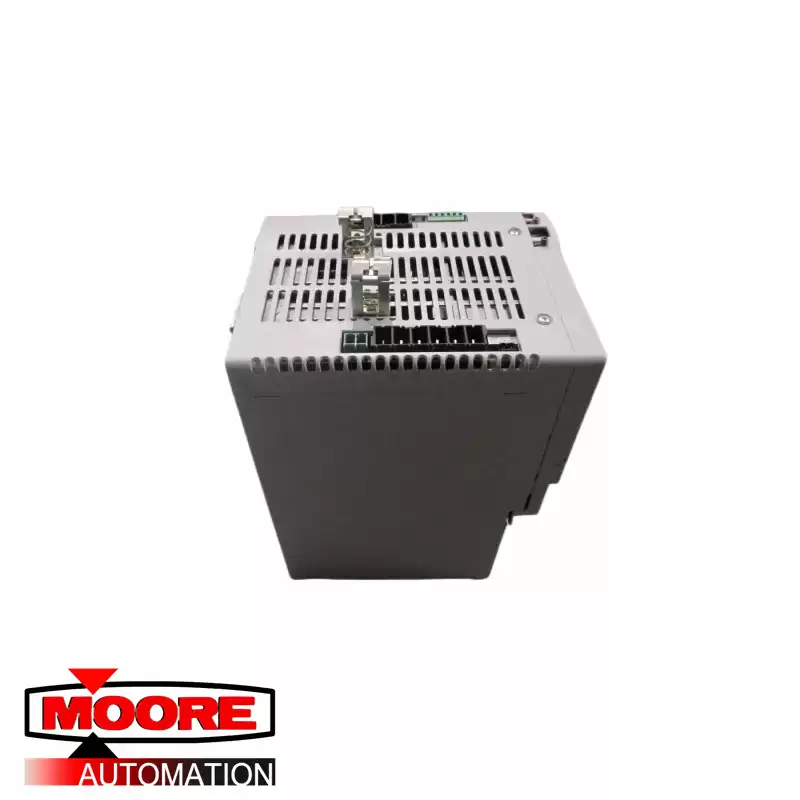

The 2094-BC07-M05-S is a Kinetix 6000 Drive component. This product is an integrated axis module, that is installed on the leftmost side of the power rail. This module is operated with an input voltage range of 360-480V nominal, with range of 324…528V rms, 3-phase along an input frequency range of 47063 Hz.
The 2094-BC07-M05-S is integrated with Safe Torque-off feature. This particular catalog number is available in Three (3) series, specifically series A with standard overload support while Series B and C has Standard or Peak Enhanced option. Standard mode is set as the default setting for preserving backward compatibility however, the peak enhanced mode can be activated to achieve increased peak current performance. The Peak enhanced current of the 2094-BC07-M05-S has a peak inverter current rating of 150% for standard and 200% for enhanced while the peak converter current rating for is 200% for Series A and 300% for Series B.
The recommended control input power fuse and circuit breaker for the 2094-BC07-M05-S is Bussmann fuse FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A) and 1492-SPM2D060 or 1492-SPM1D150 respectively. For DC bus power, the recommended Bussmann fuse is FWJ-125A and Mersen fuse A70QS125-4. For control input power, the FNQ-R-7.5 for high single cycle inrush current capability. When the continuous control power current exceeds 3.0A, this fuse is recommended.
