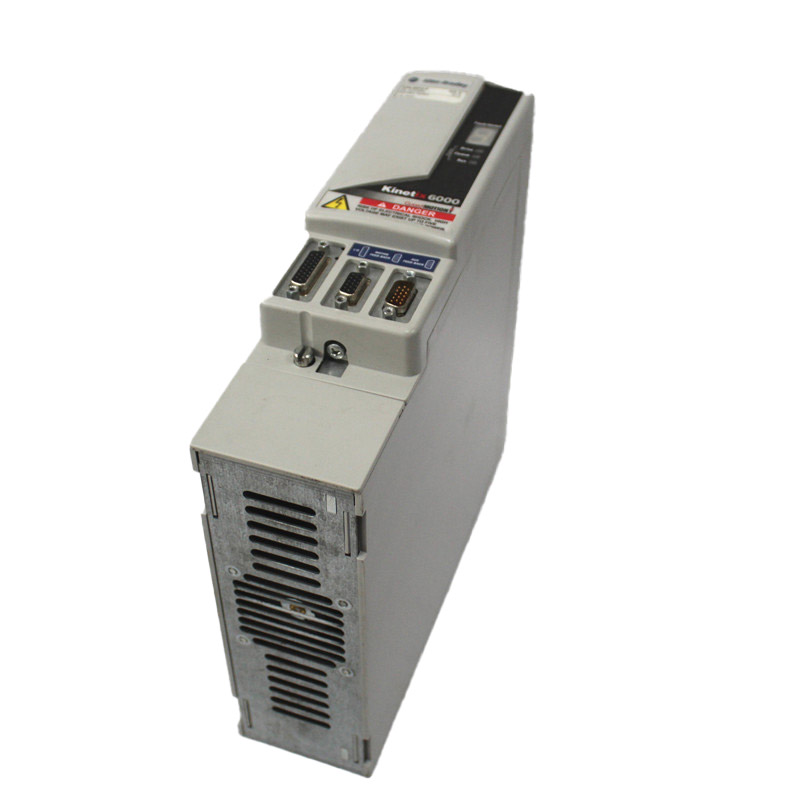

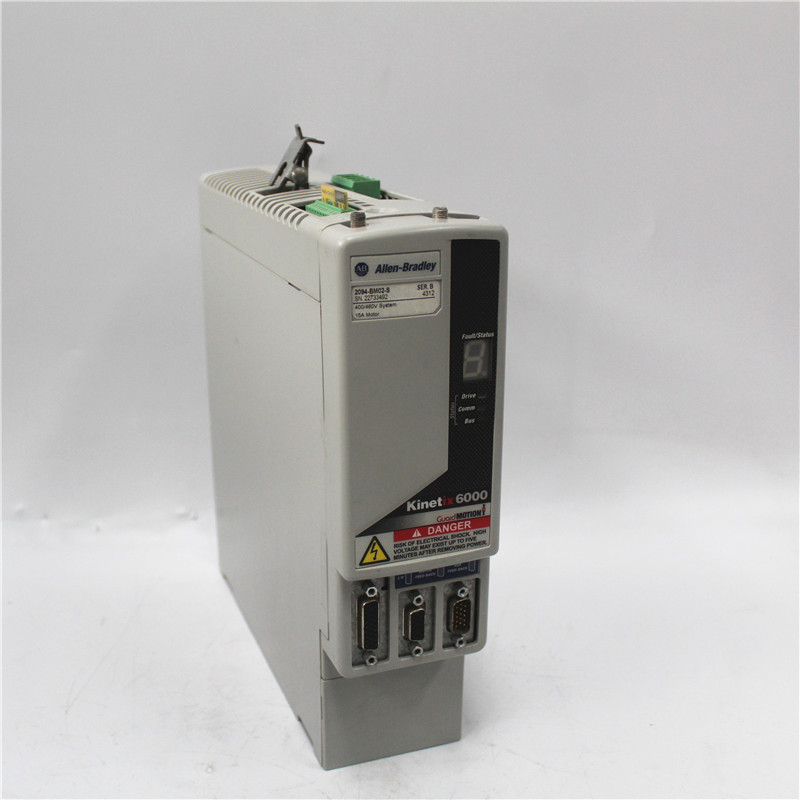

AB 2094-BM02-S Kinetix 6000 Drive

    Description:

• The 2094-xCxx-Mxx-S and 2094-xMxx-S drive modules, and the Kinetix 6000M integrated drive-motor system (2094-SEPM-B24-S IPIM module and MDF-SBxxxxx IDM units) use internal solid-state motor short-circuit protection and, when protected by suitable branch circuit protection, are rated for use on a circuit capable of delivering up to 200,000 A (fuses) and 65,000 A (circuit breakers).

• Input Power Circuit Protection (LIM) The 2094-AL09 and 2094-BL02 line interface modules (LIM) contain supplementary protection devices and, when protected by suitable branch circuit protection, are rated for use on a circuit capable of delivering up to 5000 A. When these modules are used, protection on the line side of the LIM module is required. Fuses must be class J or CC only. The 2094-ALxxS, 2094-BLxxS, and 2094-XL75S-Cx LIM modules contain branch circuit rated devices suitable for use on a circuit capable of delivering up to 65,000 A (400V-class) or 100,000 A (200V-class). Refer to the Line Interface Module Installation Instructions, publication 2094-IN005, for power specifications and more information on using the LIM module. Refer to Input Power Circuit Protection (without LIM) on page 23 when your drive system does not include the LIM module. Input Power Circuit Protection (without LIM) The fuses and Allen-Bradley circuit breakers shown in Table 9 are recommended for use with 2094-xCxx-Mxx-S IAM modules when the line interface module (LIM) is not used.
