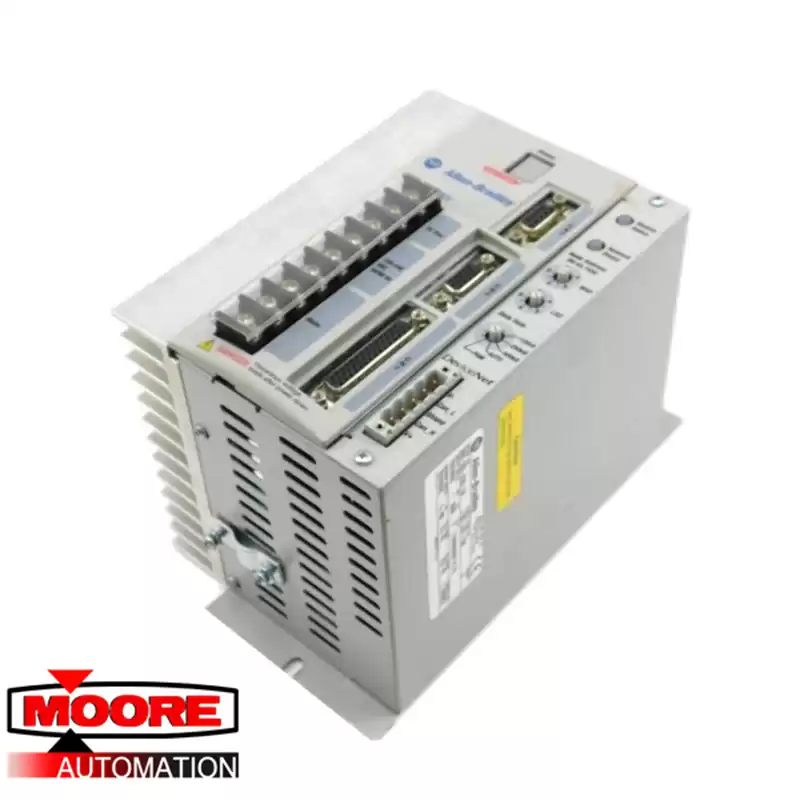

The Allen-Bradley 2098-DSD-010X-DN is an Ultra 3000 Digital Servo Drive Module (with DeviceNet and Indexing). This module is a single-phase AC drive used for control of most industrial servo motors. The 2098-DSD-010X-DN weighs 2.1Kg (4.6 lbs). This module has a total volume of 98.1 mm x 32.77 mm x 65.02 mm. The operating temperature of this module is 0-55 °C (32-131 °F). The storage temperature of this module is -40-70 °C (-40-158 °F). The relative humidity of this module is from 5-95% without condensation. The 2098-DSD-010X-DN has an operating shock of 15 g (3 pulses, 11 ms). The nonoperating shock of this module is 30 g (3 pulses, 11 ms). This module is designed to maintain optimum functionality at 2.5 g vibration. It can operate at altitudes of up to 1000 m (3280 ft) without derating. However, continuous current values must be declared at 3% for each additional 300 m (984 ft) to 3000 m (9842 ft).
The 2098-DSD-010X-DN has 8 active digital inputs. This module also has an optically-isolated immersed current stream with 4 output current sources with a relay output of 30V DC (max) and 1A (max) Normally-Open relay. The Allen-Bradley 2098-DSD-010X-DN has an input rating of 9A (with 100 A current surge) and 100-240V AC (single phase) at 47-63Hz. This module has an output rating of 15A (intermittent). This module has a maximum output power of 1 kW at 230V AC with 51 Joules maximum energy absorption capability and a BUS capacitance of 1880μF (capacitance). The Bus overvoltage of this module is 400V DC.
