The PLC DTAM plus Operator Interface Module number 2707-L40P2 is a versatile programmable Human Machine Interface (HMI) suitable to interface simple processes or machinery operation to operators.

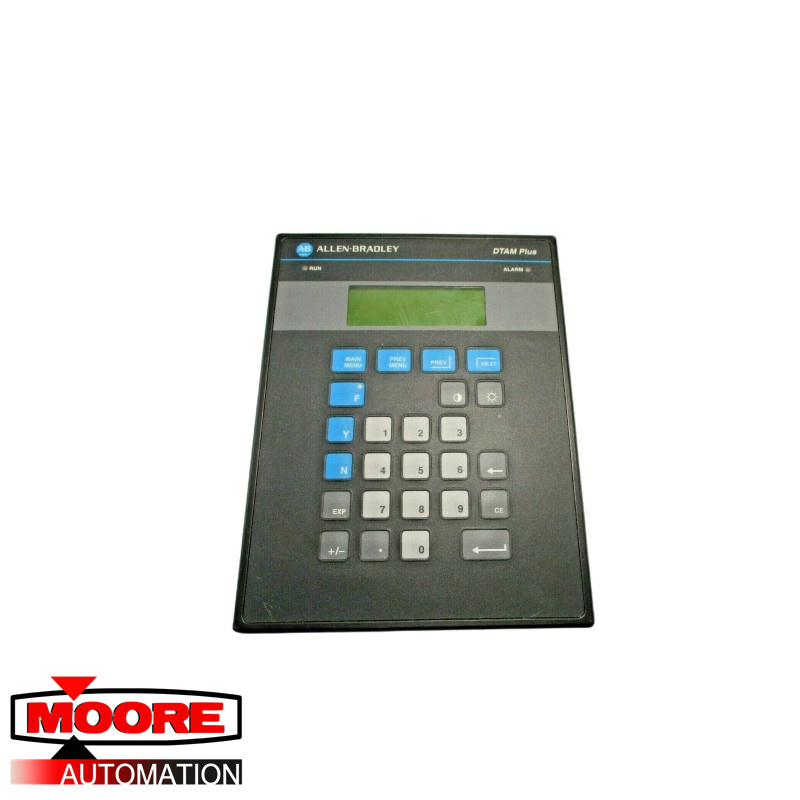

The DTAM PLUS 2707-L40P2 features a keypad with 4 lines of 20 characters each, a 1 x 3 inch LCD screen, and an adjustable LED (yellow) backlighting system, along with a hardened, multicolor, durable keypad, that contains multiple LED indicators to stimulate operator attention when needed. It has an input type of ASCII and is powered by 110 to 300 Volts of DC power
It contains a 40K nonvolatile memory that stores display configurations and Operating Systems, and can be loaded up with maximum 244 “Application Screens” and is provided with a Real Time Clock to time stamp critical data and reports.
This 2707-L40P2 model contains various types of “Application Screens” that can fulfill the requirements of most applications and can even help a user to cut the cost and complexity of installing a dedicated Alarm or Bar Graph indicator. Screen types that are available include “Menu” and “Sub-Menu” Screens, Security Screens, Data Display Screens, Data Entry Screens, Recipe Screens, Bargraph Screens and Alarm Screens.
