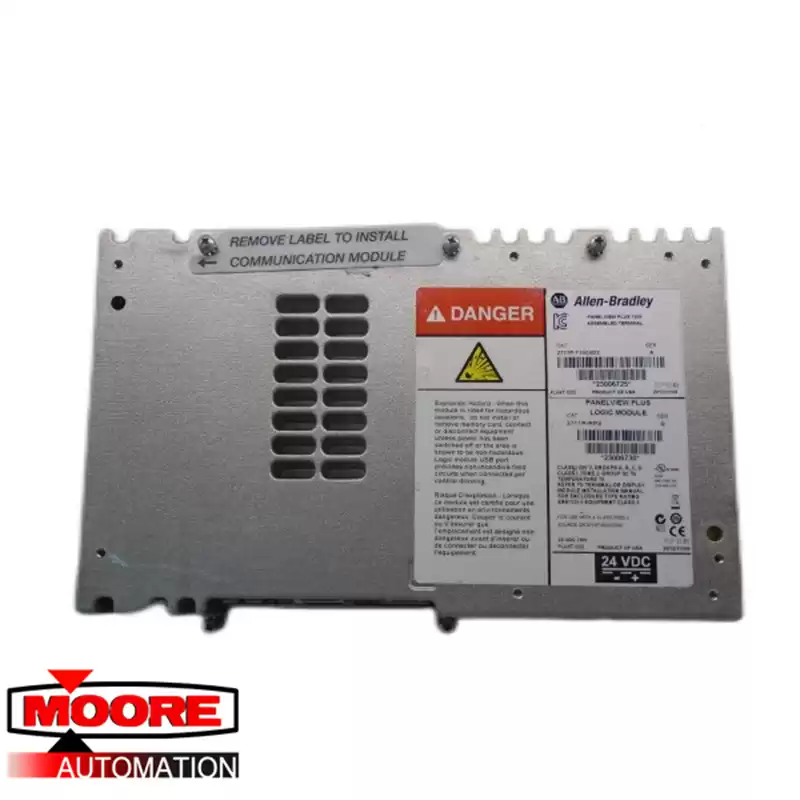

The PanelView Plus operator terminal component with part number 2711P-RP2 is a logic module that has a built-in internal memory of 128 MB Flash Memory and 128 MB Random Access Memory. This logic module is compatible for installation to PanelView Plus 700-1500 operator terminals.
The 2711P-RP2 is attached to the display module. It hosts a variety of communication interfaces as well as the supply voltage terminal. Specifically, it has One (1) Ethernet Communication Port, One (1) Serial communication terminal and Two (2) USB ports. It is powered by an external 24VDC Power supply with a Power Dissipation of 70W.
