AB 2711P-RP3 Marine Certified Logic Module 256 MB Flash

Technical Specifications for 2711P-RP3

About  2711P-RP3

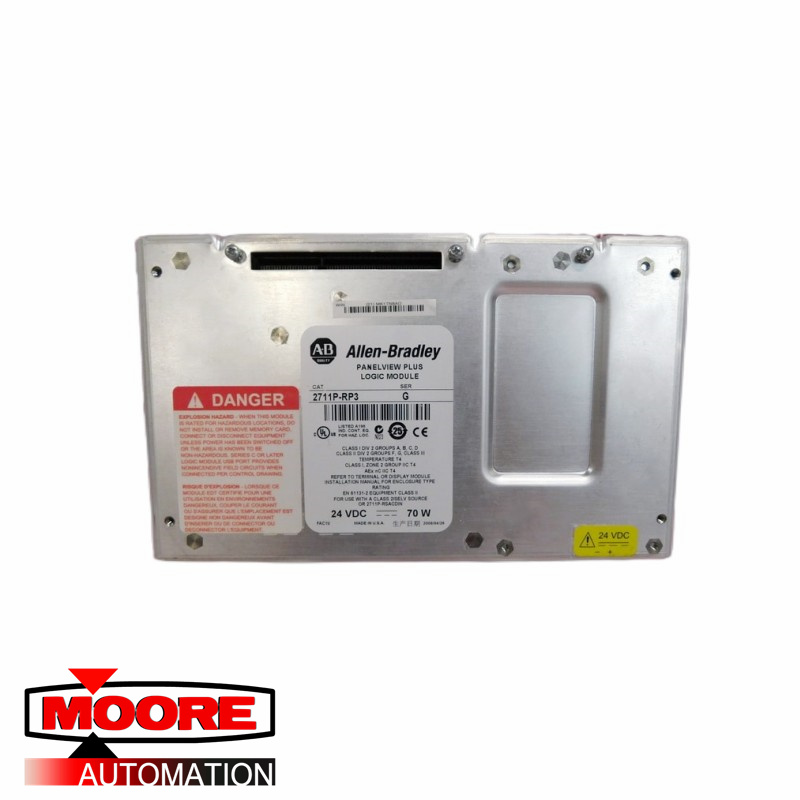

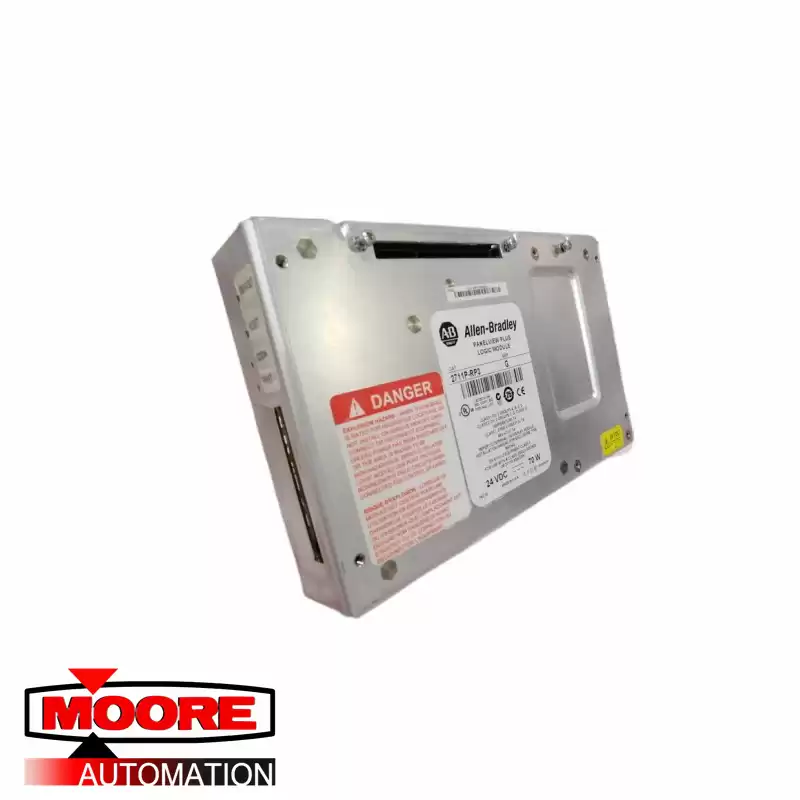

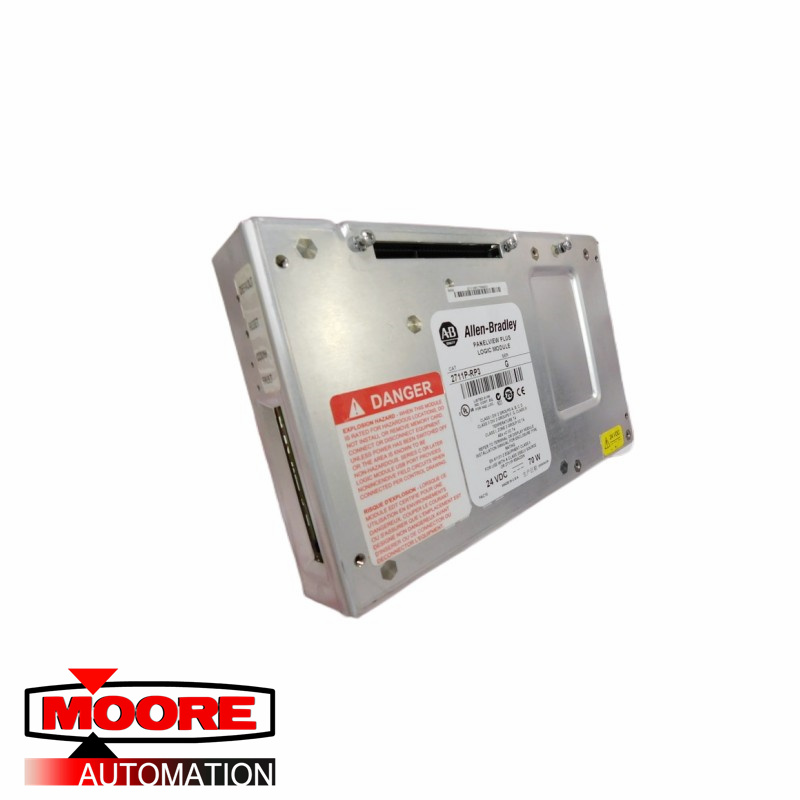

The Allen-Bradley 2711P-RP3 falls under the PanelView Plus 700 to 1500 Logic Modules series. It is a logic module with a flash memory of 256 MB, a RAM of 256 MB, and DC input. The features of the device include the Compact Flash card slot, the Ethernet slot, the Serial port, and 2 USB ports. The device is not compatible with the terminals from the Allen-Bradley PanelView Plus 6 series. When the users reorganize or start the terminal, it automatically leads to the configuration mode apart from the MER application that is spontaneously fixed to run on startup.

On the issue of the 2711P-RP3’s ambient temperatures and the acceptable level of voltages in the 700 to 1500 terminals, users should check the display temperature and the battery voltage. The procedure to do that is to enter pattern mode and choose the terminal settings tab on the screen menu, choose the structure information tab, and then choosing the terminal information tab. Conversely, for Panel Outlook Plus CE terminals, users can open the hardware display regulator panel application. The battery energy is required to be a minimum of 275 Volts AC, and if it is lower than that, it needs to be replaced with another one. The use of the 2711P-RP3 requires no special knowledge to understand how the device and its terminals are to be operated. covering users in case of damage.
