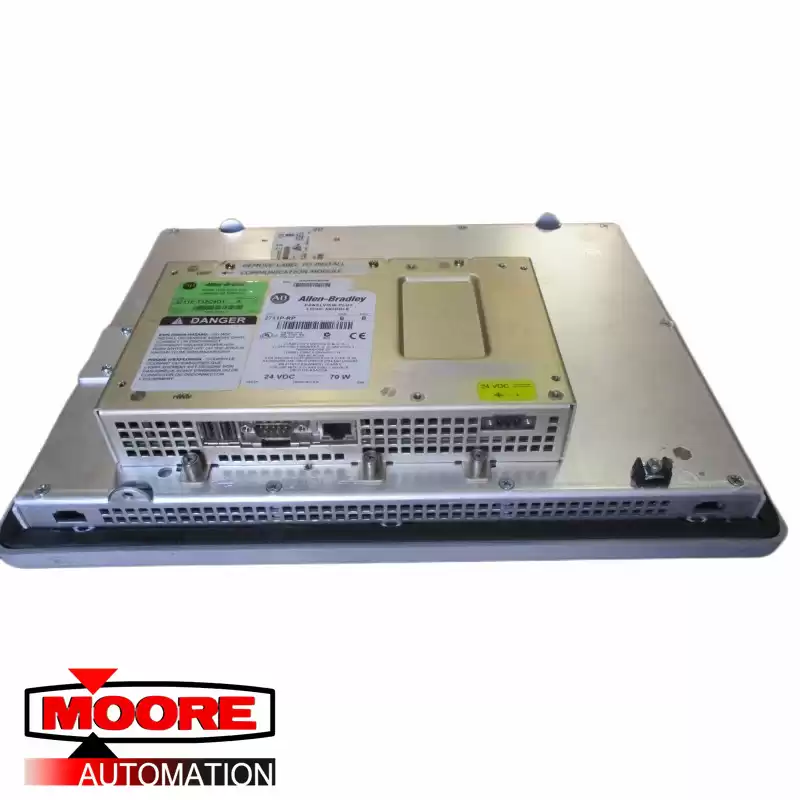

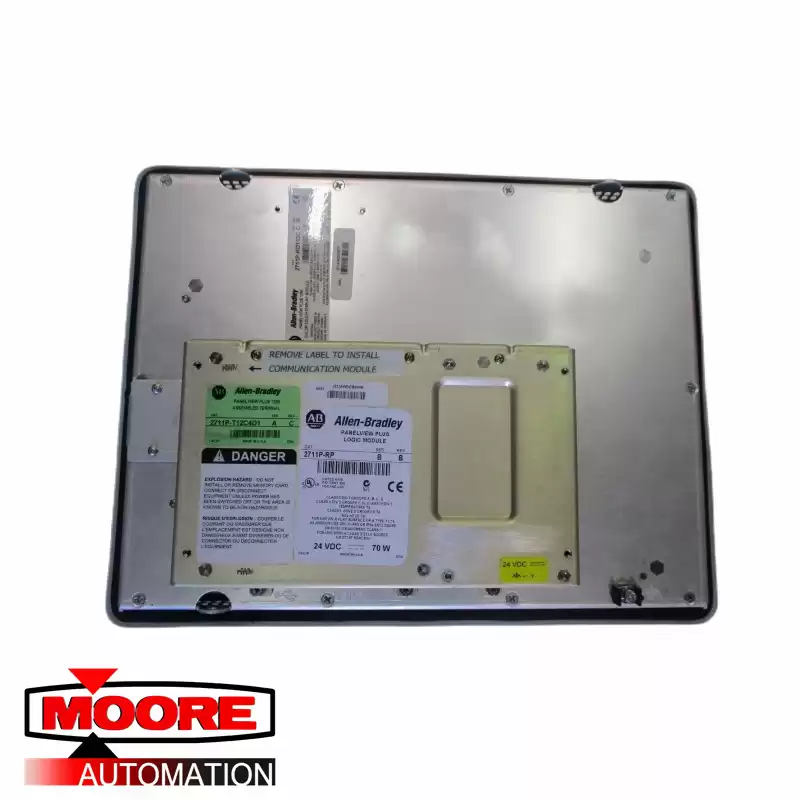

AB 2711P-T12C4D1 PanelView Plus 1250 Touch Screen

The Allen-Bradley PanelView Plus operator terminal with catalog number 2711P-T12C4D1 is a Human Machine Interface (HMI) device. It specifically belongs to the PanelView Plus 1250 operator terminals. It is designed with a 12-inch colored display screen having a resolution of 800 x 600 pixels with display are of 246 x 184 mm or 9.7 x 7.2 inches. The operator is able to control the process through the embedded analog resistive touchscreen interface. It also comes with an RS232 and Ethernet communication interface for peer-to-peer and networked communication, respectively.

The 2711P-T12C4D1 is powered by wiring an external supply voltage of 18-32VDC. It has a power consumption of 70 W, maximum and typical rating of 39W while the device’ power dissipation is 240 BTU/hr.

This operator terminal only supports horizontal mounting. It is flush mounted horizontally to an enclosure with protection rating of NEMA Type 12, 13, 4X (Indoor use only), IP54, and IP65.

This operator terminal has USB ports which can be used for connecting external peripherals such as keyboard and mouse. Some of the compatible USB keyboard include Ortek MCK-600USB, Dell RT7D10, Rockwell Automation 6189-KBDEPU1U; USB mouse such as Logitec Optical Mouse - M-BJ58, Microsoft Intellimouse D58-00026, Atek USB Mouse, VersaView (Rockwell Automation) USB Mouse and USB Hub Belkin USB 4-Port Hub - ESU021.
