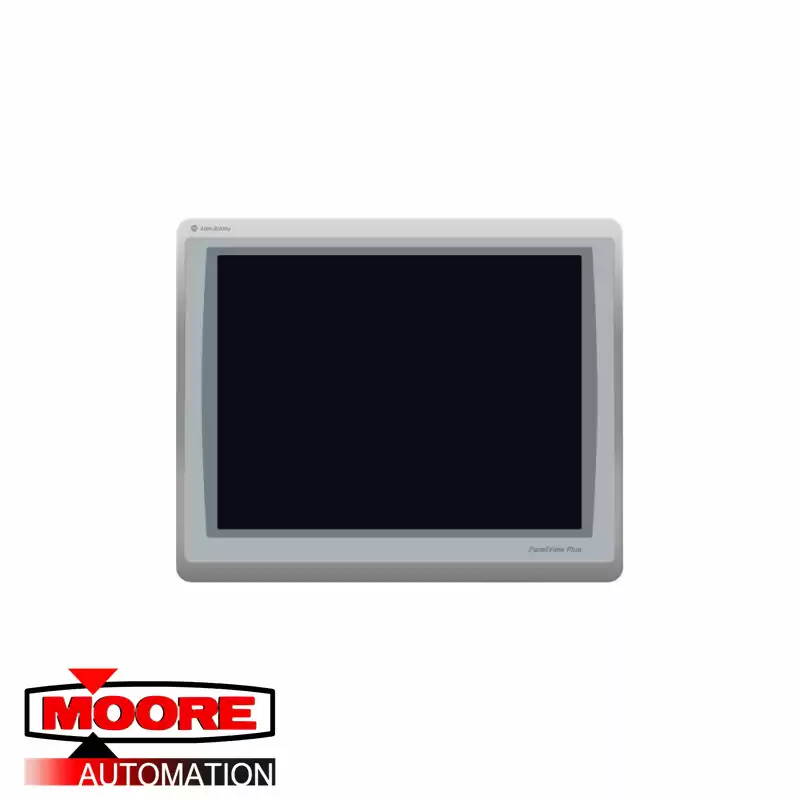

AB 2711P-T15C22A9P PanelView Plus 7 Graphic Terminal

The 2711P-T15C22A9P is a PanelView Plus 7 Performance operator terminal. This device is manufactured by Allen-Bradley that is mainly used to implement process visualization and control in the factory floor area. With its modern design, the 2711P-T15C22A9P is compatible for use in a wide variety of applications that demand connectivity up to enterprise floor as well as implement advanced functions in high-availability manner.

The 2711P-T15C22A9P is compatible for use in large or complex applications. The colored screen may be designed to implement high-level of information with color coded animations. This operator terminal also supports alarm handling, security, trending, data logging and recipe management.

This operator terminals is a modern visualization component or more commonly referred to as Human Machine Interface (HMI). This operator terminal supports connection to a linear, Ring or Star Ethernet topologies. Being in the performance operator terminal category, the built-in memory of this HMI device is 512 MB for System memory and 512 MB for user memory. It may be installed with memory expansion card such as 1784-SD1 or 1784-SD2. Only one (1) SD card slot is available in the 2711P-T15C22A9P. The 2711P-T15C22A9P operator terminals has a scalable and configurable hardware. It comes with a removable logic and display module and also supports installation of additional communication module. Since the 2711P-T15C22A9P is a touchscreen operator terminal, actuate the touch membrane with a force equivalent to 100 grams. If possible, cover the actuating finger with glove or use stylus to prevent damage to the touch terminal. Supply this operator terminal with a power supply voltage range of 100-240VAC along a frequency of 50-60 Hz. This operator terminal also has a battery-backed real-time clock.
