Product Discription

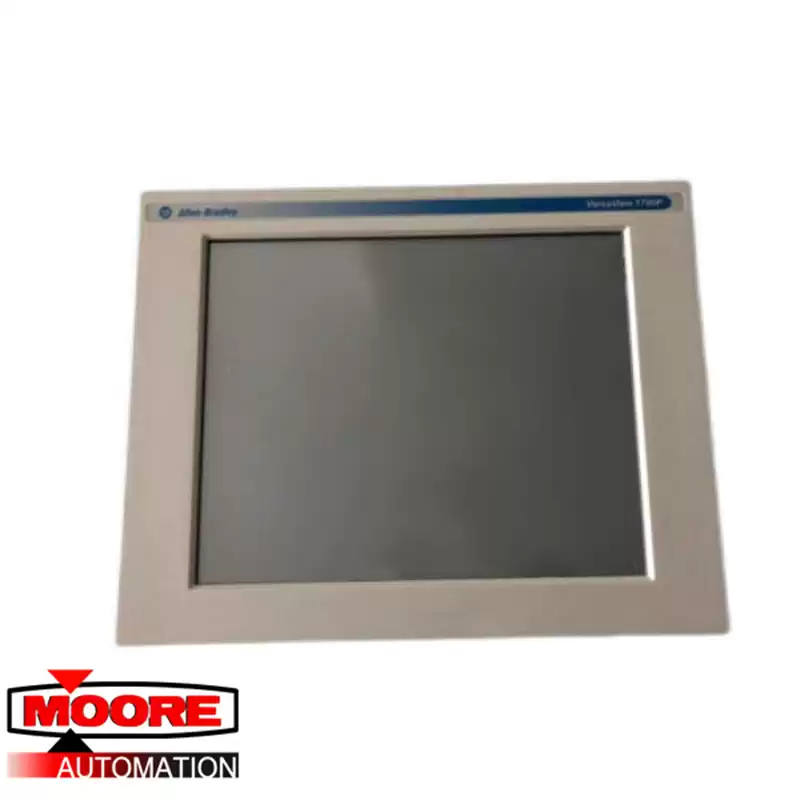

The Allen-Bradley 6181P-17TPXPH is a VersaView 1700P integrated display performance computer that comes with a 17-inch touchscreen display. The touchscreen used is a PCAP touchscreen type with a resistive antiglare and the display is an active color matrix thin film transistor (TFT) type. This display has a native resolution of 1284 x 1024 and 24-bit colors. It is equipped with an Intel Pentium 4 2.0 GHz processor and a 1 GB DDR RAM that can be expanded to 2 GB. Ports present on this computer include 1 parallel port, 3 serial ports, 2 USB 2.0 ports, 2 PS/2 ports for the keyboard and mouse, 1 10-100 Ethernet port, microphone port, 1 video port, and audio line in and out. It also has a half-length PCI slot and 1 CompactFlash Type 2 slot for additional storage. Drives installed are a slim floppy drive and a slim DVD/CD-RW drive.
The input power of this computer is 90-264V AC, which is auto-ranging, and the line frequency is 47-63 Hz. The 6181P-17TPXPH’s operating temperature range is 0-50 oC and its non-condensing relative humidity is 10-90%. It also comes with an operating shock of 15 g at ½ sine for 11 ms and an operating vibration of 1 g peak, swept sine at 10-500 Hz. This computer has approximate dimensions of 14.02 x 17.80 x 4.32 inches. Note that the 6181P-17TPXPH computer is panel-mounted.
The 6181P-17TPXPH ships with a cutout template, an installation guide, mounting clips, and a support CD. It can be installed in an industrial environment with a pollution level of Pollution Degree 2, a Category II overvoltage rating, and with a maximum altitude of 6562 feet. Minimize the electrical noise in the work environment to ensure that the touchscreen will respond properly.
