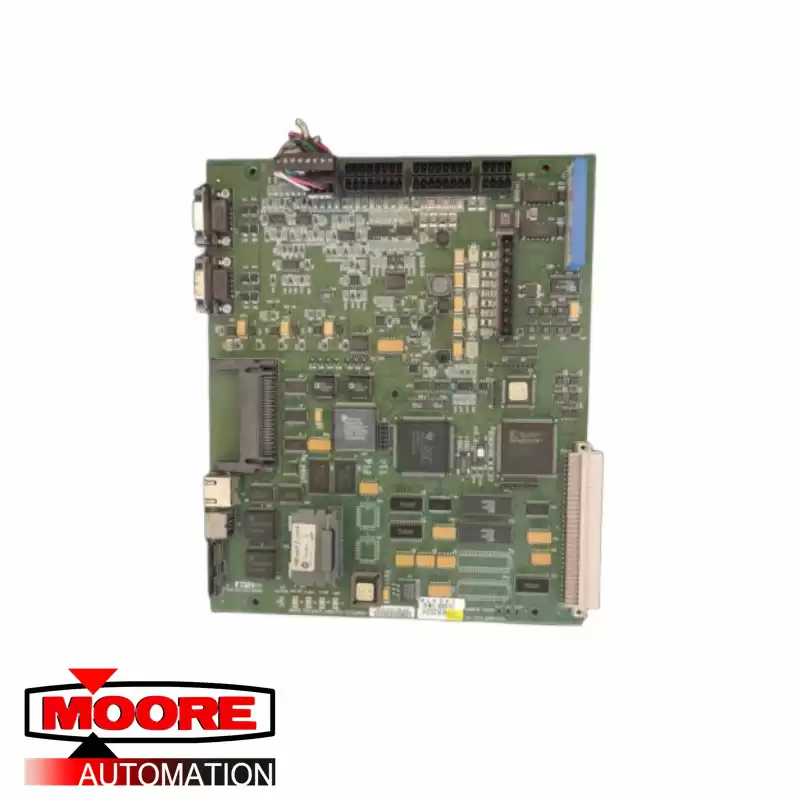

Technical Specifications for 80190-320-03-R
|
Part number
|
80190-320-03-R
|
|
Shipment
|
From Xiamen, China to Worldwide
|
|
Manufacturer
|
Allen Bradley
|
|
Payment
|
T/T
|
|
Origin
|
USA
|
|
Status
|
Brand New In Stock
|
|
Description
|
PKGD CUSTOMER CIB BOARD ASSY
|
|
Year of Production
|
2020-2022 available
|
About 80190-320-03-R
|
Route the field cable (DC) into the cabinet through conduit D. Route the cables behind the current transformer mounting plate and into the lower power cell. You will need approximately 3 meters (10 feet) of
cable.
Pull the cables into the lower power cell and route them behind them mounting plate to the floor of the cabinet. Connect the cables to the field cable terminal block on the floor of the cabinet . Connect the positive power cable to terminal F1 of the field cable terminal block. Connect the negative power cable to terminal F2. Torque the screws to 35-50 lb-in.
|
