Brand Name                 AB

Product reference      1769-IR6

 Allen Bradley1769-IR6 CompactLogix 6 Channel RTD-Resistance Input I-O Module.RSLogix5000, series A&B | copper wire type. This module digitally converts analog data and stores the converted data. Each of the 6 supported channels provides open-circuit and short-circuit as well as over- and under-range detection and indication. Weighs 2lbs and is 8x8x5 inches.

The Allen-Bradley 1769-IR6 is a CompactLogix analog RTD/resistance input module that has 6 RTD input channels available. Each channel can be configured individually for a specific input device and this is done via the RSLogix5000 software. The input ranges of this module are 0-150 Ω, 0-500 Ω, 0-1000 Ω, and 0-3000 Ω and it has a maximum common mode voltage range of +/- 10V DC. The 1769-IR6 module has a 1.5W power dissipation and draws currents of 100 mA at 5.1V and 45 mA at 24V. It also has an isolation of 720V DC for 1 minute from channel to bus, optical and magnetic (qualification), as well as a working voltage of 30V AC/30V DC. Its open circuit detection time ranges from 6 ms to 303 s and it has impedances of 25 Ω for the cable and more than 10 MΩ for the input.
This module has a built-in status LED available and it can be mounted using a DIN rail or panel mount. When using a panel mount, the 1769-IR6 module has an operating shock of 30g, a relay operating shock of 7.5g, and a non-operating shock of 40g. A DIN-rail mounted module has an operating shock of 20g, a relay operating shock of 5g, and a non-operating shock of 30g. It also has an operating vibration of 5g at 10-100 Hz and its non-condensing relative humidity is 5-95%. This module has a removable terminal block (RTB) interface and an open-type enclosure. The entire 1769-IR6 module measures approximately 1.38 x 3.43 x 4.65 inches.
The 1769-IR6 module supports RTD and direct resistance signal measurement applications. This module digitally converts analog data and stores the converted data. Each of the 6 supported channels provides open-circuit and short-circuit as well as over- and under-range detection and indication.

Configuring a 1769-IR6 RTD Input Module To configure the 1769-IR6 module in slot 1, click on the plus sign left of Local:1:C. Configuration data is entered under the Local:1:C.Data tag. Click the plus sign to the left of Local:1:C.Data to reveal the 8 integer data words where configuration data may be entered for the 1769-IR6 module. The tag addresses for these 8 words are Local:1:C.Data[0]…Local:1:C.Data[7]. Only the first 6 words of the configuration file apply. The last 2 words must exist but should each contain a value of 0 decimal. The 6 configuration words, 0…5 apply to IR6 channels 0…5 respectively. All 6 words configure the same parameters for the 6 different channels. The following shows the various parameters to configure in each configuration word. For a complete description of each of these parameters and their possible settings

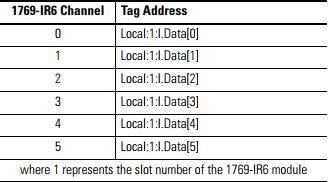

Once you have entered your configuration selections for each channel, enter your program, save your project, and download it to your CompactLogix Controller. Your module configuration data is downloaded to your I/O modules at this time. You 1769-IR6 module input data is located in the following tag addresses when the controller is in Run mode

Configuring the 1769-IR6 Module in a Remote DeviceNet System with a 1769-ADN DeviceNet Adapter This application example assumes your 1769-IR6 RTD/resistance input module is in a remote DeviceNet system controlled by a 1769-ADN DeviceNet adapter. RSNetworx for DeviceNet is not only used to configure your DeviceNet network, but is also used to configure individual I/O modules in remote DeviceNet adapter systems. For additional information on configuring your DeviceNet scanners and adapters, please refer to the documentation for these products. This includes the Compact I/O 1769-ADN DeviceNet Adapter user manual, publication 1769-UM001. The adapter manual also contains examples on how to modify I/O module configuration with Explicit Messages, while the system is running. Whether you configure an I/O module offline, then download to the adapter or you accomplish the configuration online, the 1769 RTD/resistance Input module must be configured prior to configuring the DeviceNet adapter in the DeviceNet scanner’s scanlist. The only ways to configure or re-configure I/O modules after the adapter is placed in the scanners scanlist are via Explicit Messages or by removing the adapter from the scanner’s scanlist, modifying the configuration of the I/O module, then adding the adapter back into the scanner’s scanlist. This example takes you through configuring your 1769 RTD Input module with RSNetWorx for DeviceNet, version 3.00 or later, prior to adding your adapter to the scanlist of your DeviceNet scanner.
