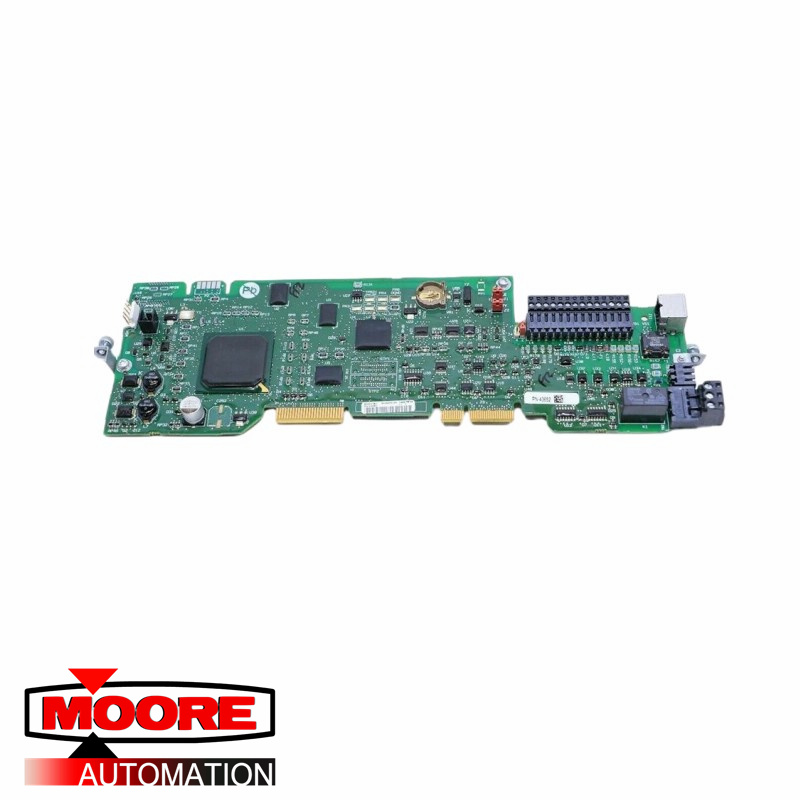

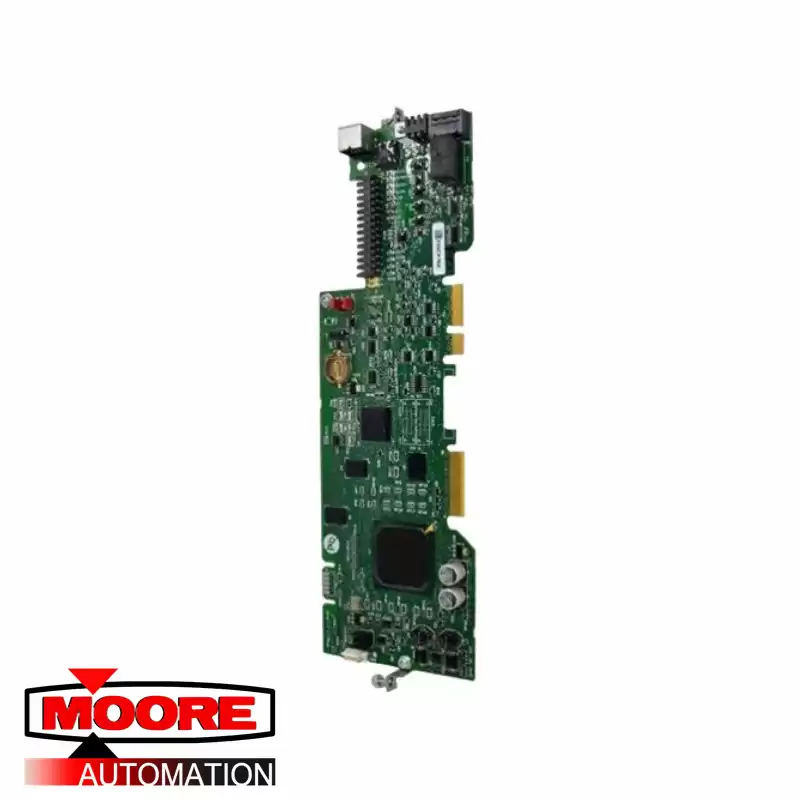

AB PN-43652 Control Board

AB  PN-43652  Control Board
• At the motor end, the motor cable shield or conduit must terminate in a shielded connector that must be properly installed in an earthed motor wiring box that is attached to the motor. The motor wiring box cover must be installed and earthed.
• All control (I/O) and signal wiring to the drive must use cable with a braided shield that provides 75% or greater coverage, or the cables must be housed in metal conduit, or equivalent shielding must be provided. When shielded cable is used, the cable shield is terminated with a lowimpedance connection to earth at only one end of the cable, preferably the end where the receiver is located. When the cable shield is terminated at the drive end, it can be terminated by using a shielded connector with a conduit plate or conduit box, or the shield can be clamped to an ‘EMC plate’.
• Motor cables must be separated from control and signal wiring wherever possible.
