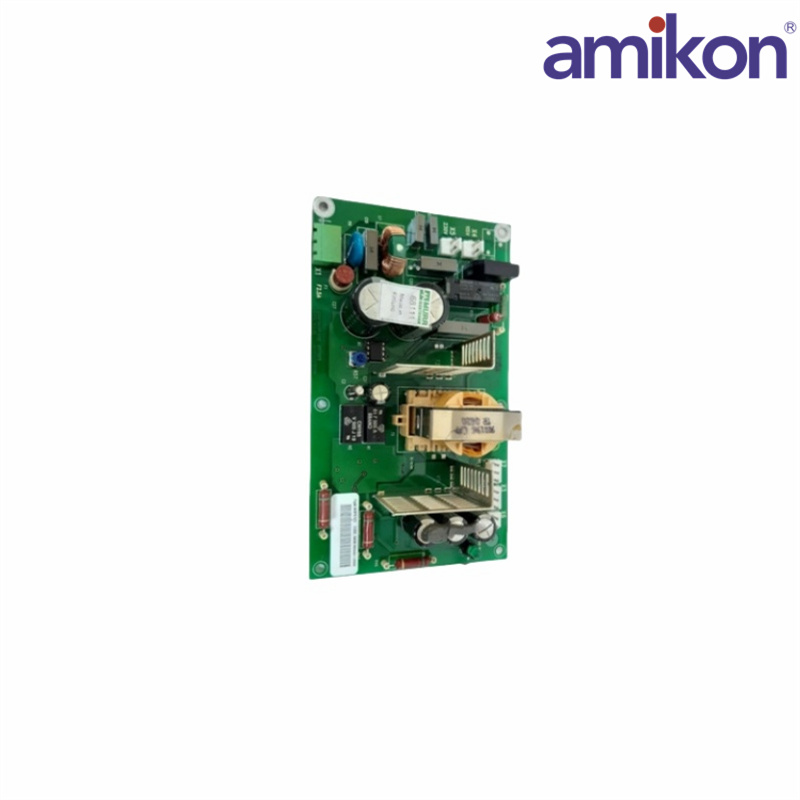

The ABB NTAM01 Analog Master Termination Unit is a key component in ABB's control systems, specifically designed to manage and terminate connections for analog signals. This unit is typically used in conjunction with ABB's analog master modules to facilitate the integration and management of analog input and output signals within a control system.
Key Features and Functions:
Signal Termination: The NTAM01 provides a means to properly terminate analog signals, ensuring reliable and accurate signal transmission between the field devices (such as sensors or actuators) and the analog master modules.
Connection Interface: It features terminal blocks or connectors where field wiring is connected. This allows for the easy and organized connection of analog signals to the control system.
Signal Conditioning: May include signal conditioning features to adjust or filter the signals before they are sent to the master modules, improving accuracy and reducing noise.
Mounting and Integration: Typically designed to be mounted in a control cabinet or rack, the NTAM01 integrates seamlessly with ABB’s analog master modules and other control system components.
Field Wiring: Supports various types of field wiring configurations, accommodating different signal types such as voltage (e.g., 0-10V) or current (e.g., 4-20mA).
|
