| Manufacture |
ABB |
| Model |

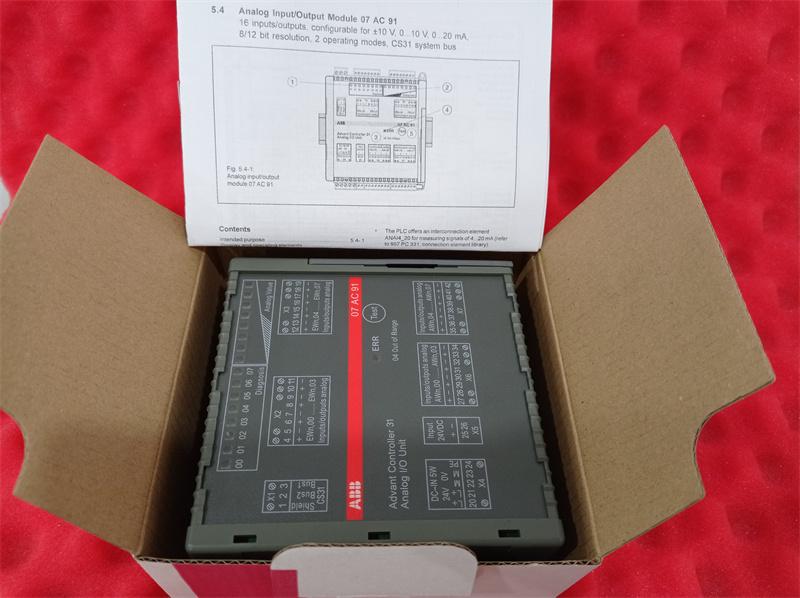

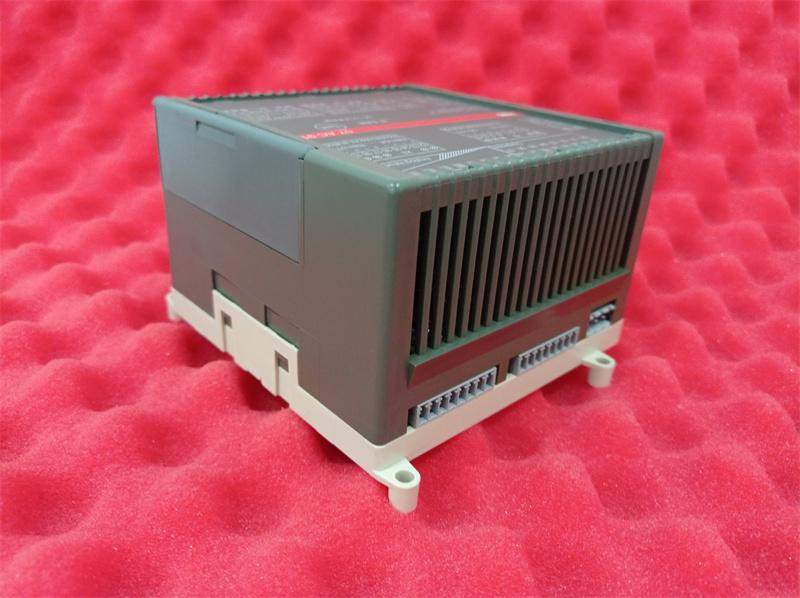

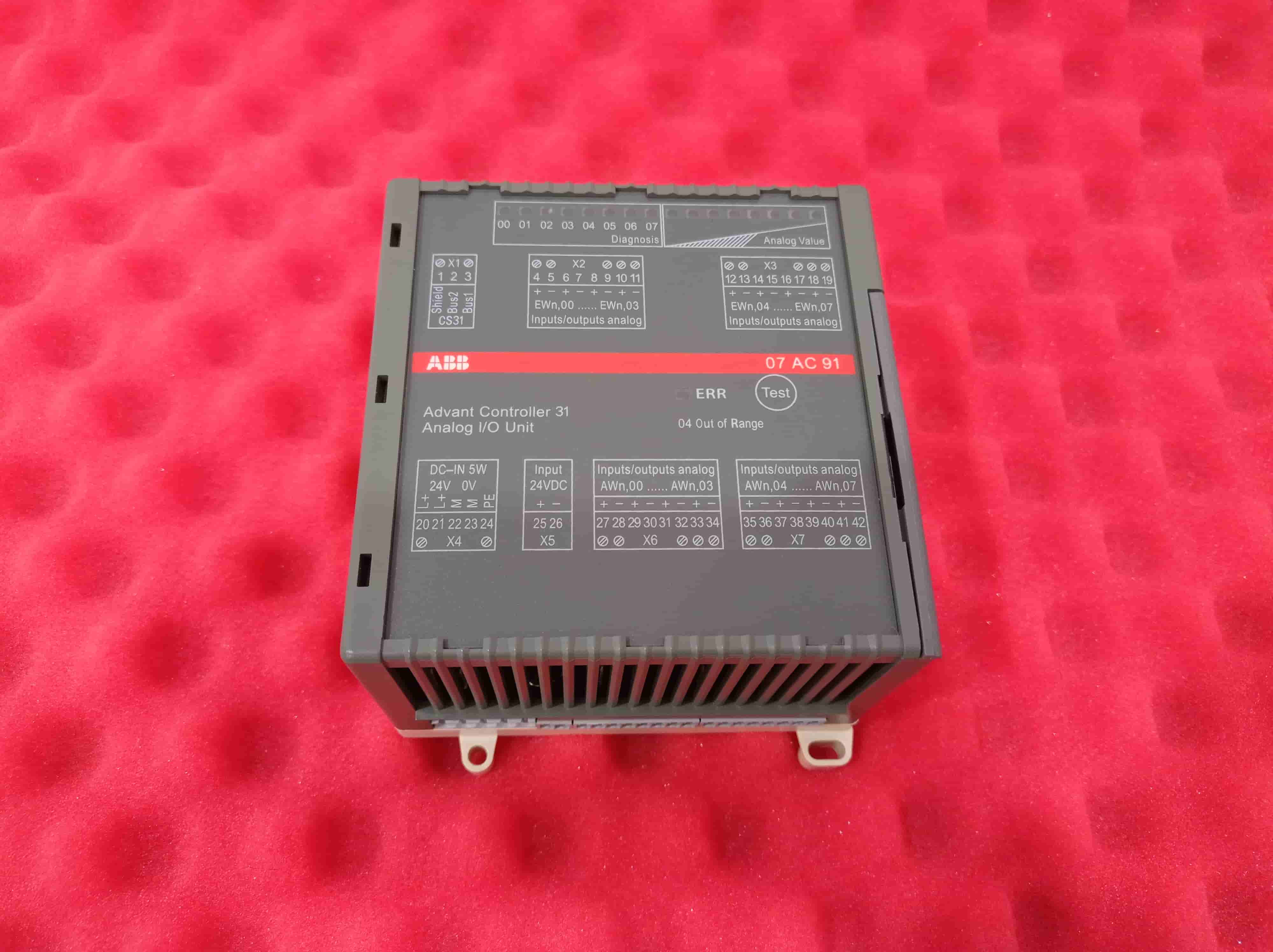

07AC91 |
| Product ID |
GJR5252300R0101 |
| Catalog |
07AC91:AC31 |
| Description |
07AC91:AC31,Analog I/O module 8AC,24VDC,AC:U/I,12bit+Sign,1-wire |
| Country of Origin |
Germany (DE)/Spain (ES)/United States (US) |
| Dimension |
12.7 cm x 10.2 cm x 15.2 cm |
| Weight |
0.81kg |
16 inputs/outputs, configurable for ±10 V, 0...10 V, 0...20 mA
8/12 bit resolution, 2 operating modes, CS31 system bus
The module 07 AC 91 uses up to eight input words on the CS31 system bus plus up to eight output words. In the operating mode "8 bits", 2 analog values are packed into one word.
The operating voltage of the unit is 24 V DC. The CS31 system bus connection is electrically isolated from the rest of the module.
The module offers a number of diagnosis functions

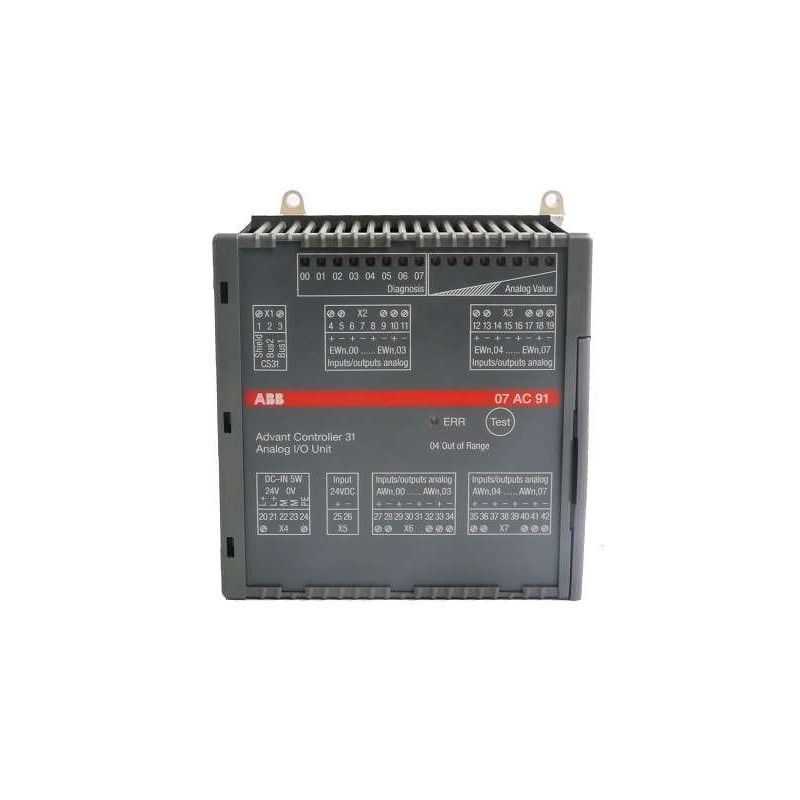

Operating mode "12 bits": 8 analog inputs (terminals 4 to 19) and 8 analog outputs (terminals 27 to 42),configurable for ±10 V or 0...20 mA,resolution 12 bits.
Operating mode "8 bits": 16 analog channels configurable in pairs as inputs or outputs for 0...10 V or 0...20 mA, resolution 8 bits
-
Quality
100% brand new and original
All the goods will be tested before shipment.
-
Warranty
Topteng offers a 12-month warranty from the date of delivery
In the event of non-conforming product (if damaged or incorrect product is received),
Any nonconformity must be reported within 7 days of receipt of goods.
-
Delivery Time
For the in stock items, we will send the order out within 5-7 days after receive the payment.
We can shipping all over the world via DHL,UPS,Fedex and EMS
