Technical Specifications for 07DI92 GJR5252400R0101
|
Manufacturer
|
ABB
|
|
UNSPSC
|
32151705
|
|
Brand
|
ABB
|
Product Type
|
PLC-AC31-90
|
|
Part Number/Catalog No.
|
07DI92 GJR5252400R0101
|
WEEE B2C / B2B
|
Business To Business
|
|
Primary Voltage
|
24 V
|
I/O Option
|
Bus module with Onboard IO
|
|
Product Main Type
|
07DI92
|
Product Depth
|
85 mm
|
|
Product Name
|
Distributed Automation I/O
|
Invoice Description
|
AC31,Digital I/O module 32DI
|
About 07DI92 GJR5252400R0101
|
Intended purpose The digital input module 07 DI 92 is used as a remote module on the CS31 system bus. It contains 32 inputs, 24 V DC, in 4 groups with the following features: The 4 groups of the inputs are electrically isolated from each other and from the rest of the unit.
The module occupies two digital addresses for inputs on the CS31 system bus. The unit works with a supply voltage of 24 V DC. The system bus connection is electrically isolated from the rest of the unit.

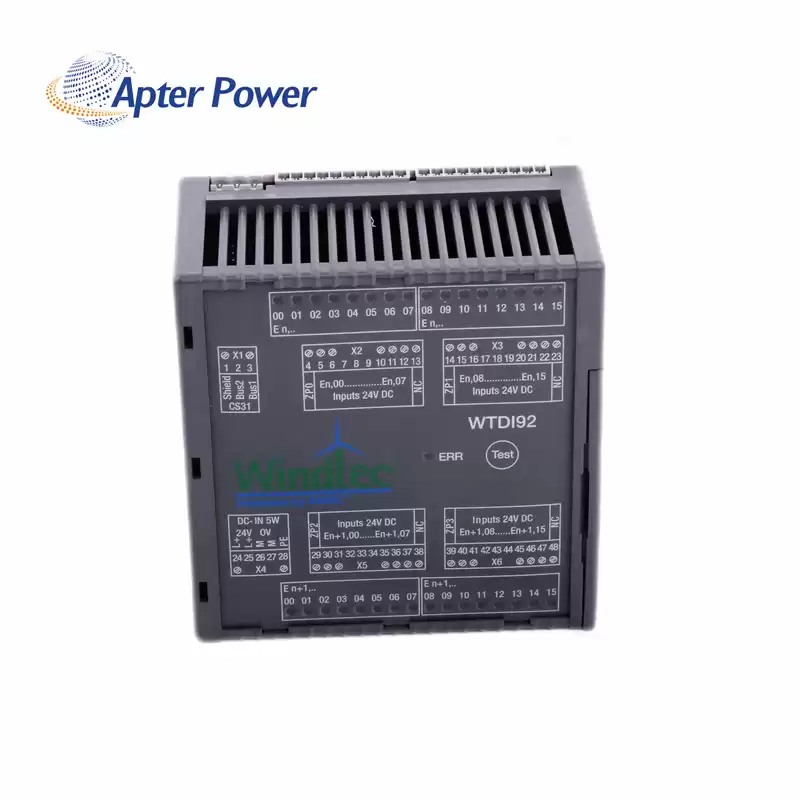

Display and operating elements on the front panel 1 32 green LEDs to indicate the signal status of the inputs 3 Red LED for error messages 4 Test button Electrical connection The module can be mounted on a DIN rail (15 mm high) or with 4 screws. The following illustration shows the electrical connection of the input module.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
