07BT62R1 GJV3074303R1
|
|
Weight:0.64KG
|
Dimension: 24cmx13cmx8.5cm
|
|
Product Name: Module
|
Product Package: Original Package
|
|

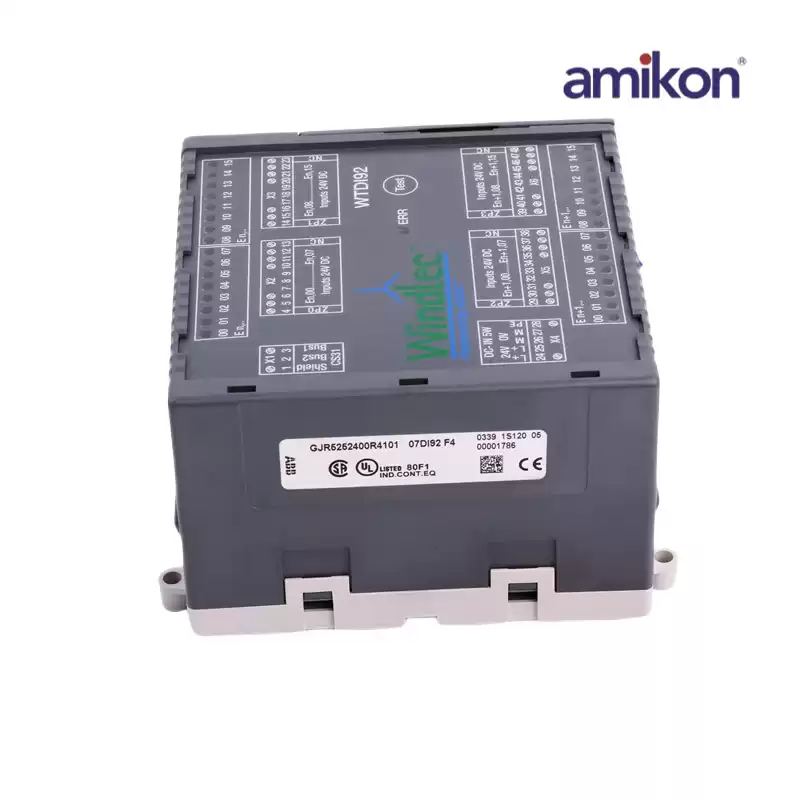

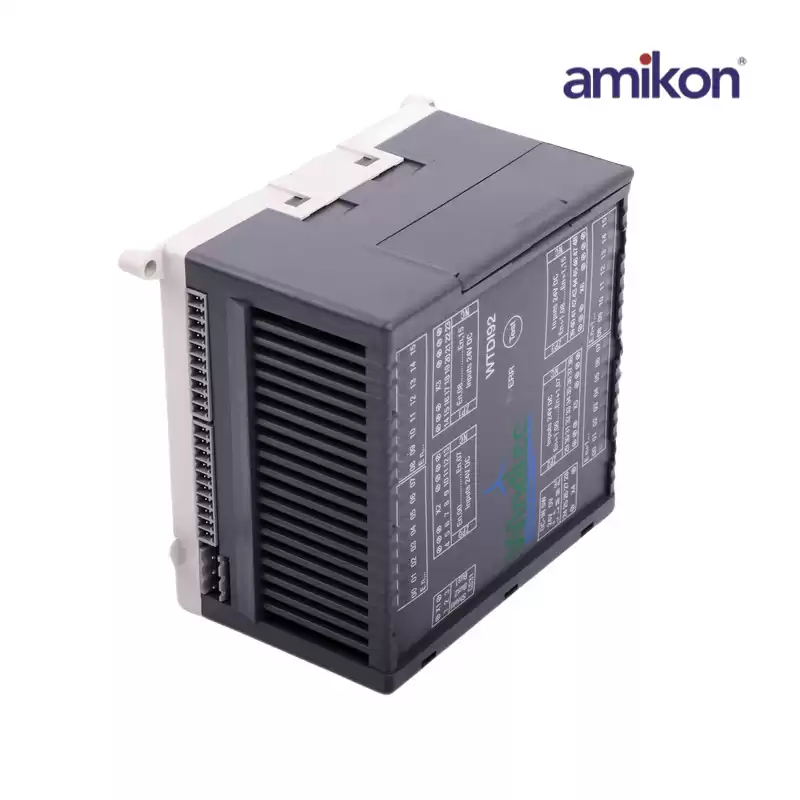

The digital input module 07 DI 92 is used as a remote module on the CS31 system bus. It contains 32 inputs, 24 V DC, in 4 groups with the following features: The 4 groups of the inputs are electrically isolated from each other and from the rest of the unit.
The module occupies two digital addresses for inputs on the CS31 system bus. The unit works with a supply voltage of 24 V DC. The system bus connection is electrically isolated from the rest of the unit.

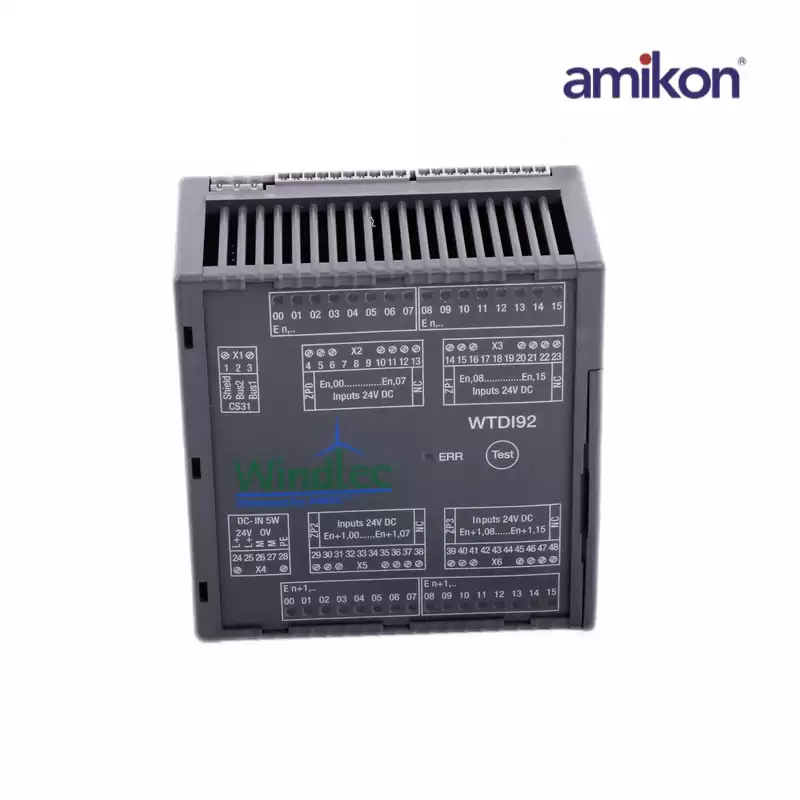

Display and operating elements on the front panel 1 32 green LEDs to indicate the signal status of the inputs 3 Red LED for error messages 4 Test button Electrical connection The module can be mounted on a DIN rail (15 mm high) or with 4 screws. The following illustration shows the electrical connection of the input module.
|
|
Parts delivered worldwide
|
We deliver worldwide
|
Full 12-month warranty
|
More than 25 in stock
|
