ABB 07KP93 GJR5253200R1161 Communication Processor

07KP93 Communication Module, MODBUS protocol, 2 communication channels, Master and Slave operation, operation Interfaces RS232/422/485, Supply Voltage 24 Vdc.

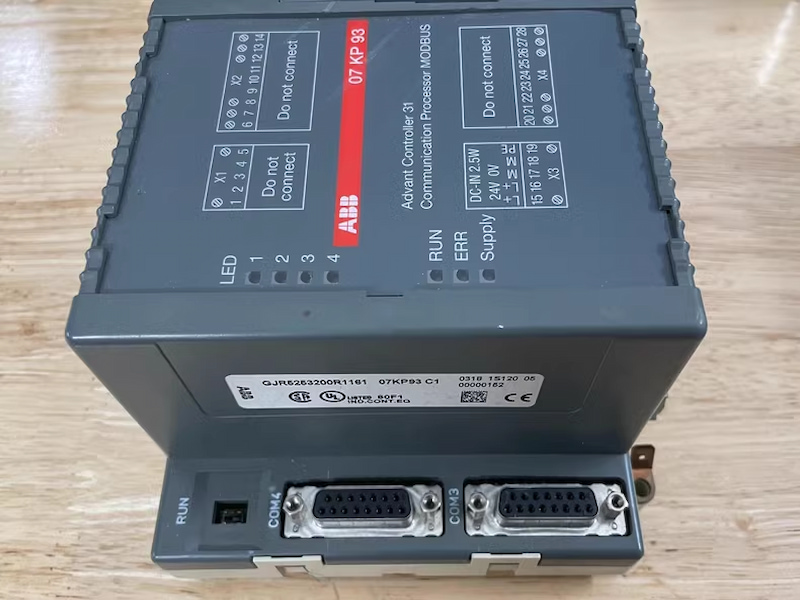

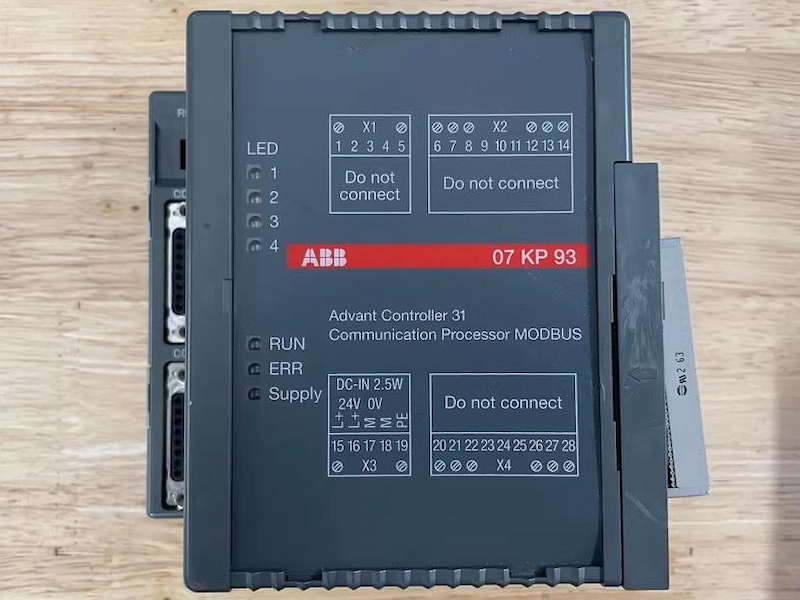

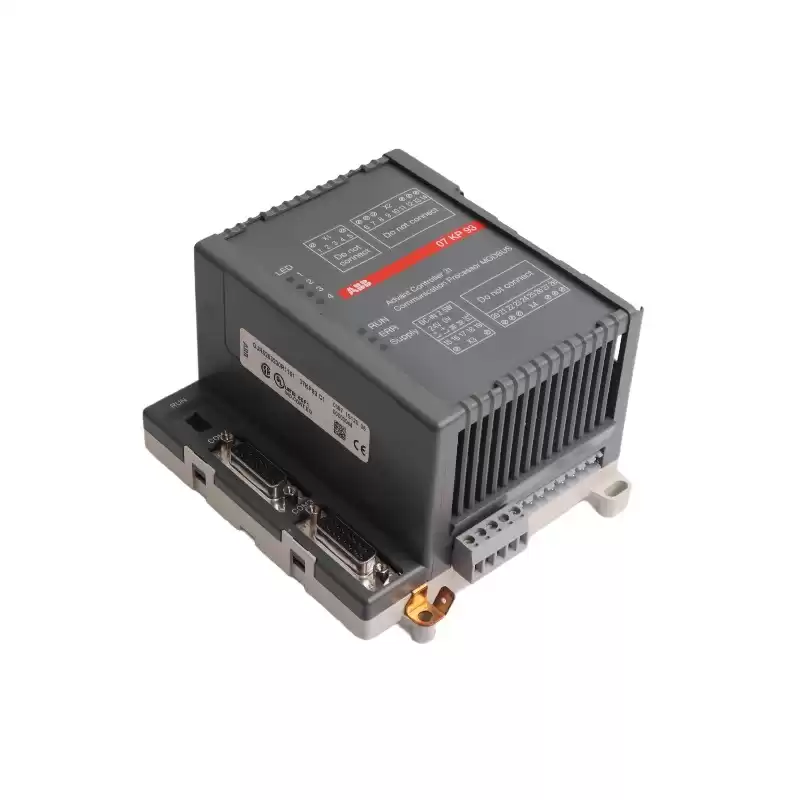

07KP93 GJR5253200R1161 Communication Processor





The 07 KP 93 communication processor is an interface module with 2 serial MODBUS RTU interfaces.



The communication processor allows external units to be connected to the Advant Controller 31 system using the MODBUS RTU protocol.



The most important features of the communication processor are:



· 2 serial interfaces: usable in accordance with EIA RS-232 or EIA RS-485 (COM3, COM4)



Possible operating modes:

COM3  COM4

Master Slave (Master-master does not work)

Slave    Master

Slave    Slave



· Communication with AC 31 basic units is performed with function blocks / connection elements.



Networking interface



The communication processor can be connected to AC31 basic units of the 90 series which have a networking interface. The housing of the communication processor is connected to the housing of the AC31 basic unit by a snap fit connection. The electrical connection is via a 40-pole ribbon cable with socket connector, soldered onto the 07 KP 93 side.



Mounting the expansion housing



1. Detach the cover on the basic unit from the networking interface.

2. Plug the socket strip of the 40-pole ribbon cable secured to the 07 KP 93 onto the networking connector of the basic unit.

3. Place both units on a level surface and slide them toget her so that they engage.

4. Slide in the connection part to fix the housing in position.



Technical Specifications

Manufacturer ABB
Part Number 07KP93
Ordering Information GJR5253200R1161
Product Catalog AC31 PLC
Description Communication Processor
Voltage 24 Vdc
Current 210 mA
Dimensions 140 mm x 120 mm x 85 mm
Weight 450 g



07KP93



GJR5253200R1161
