Product Description:

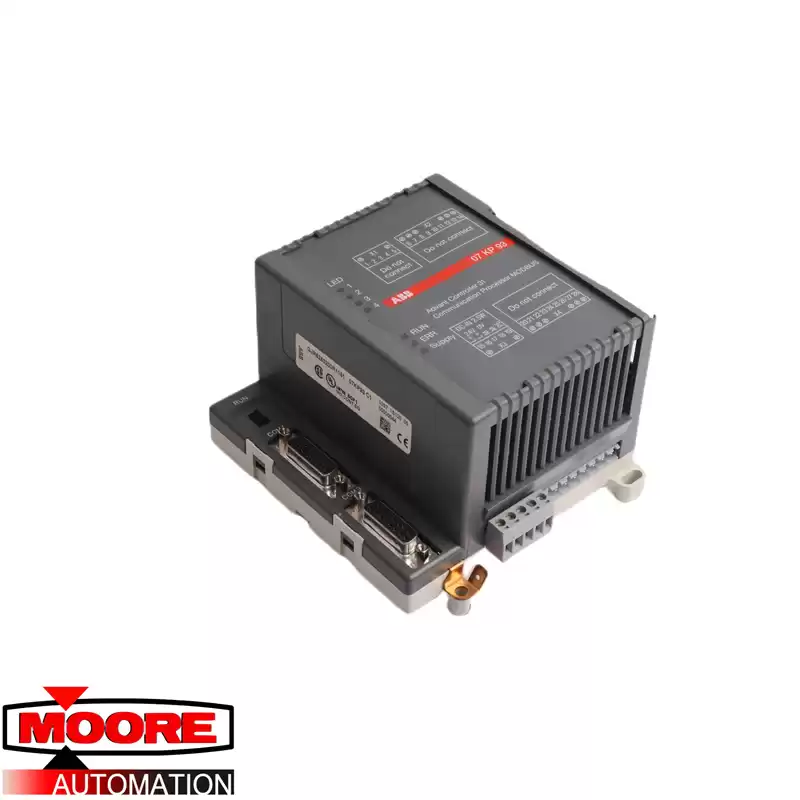

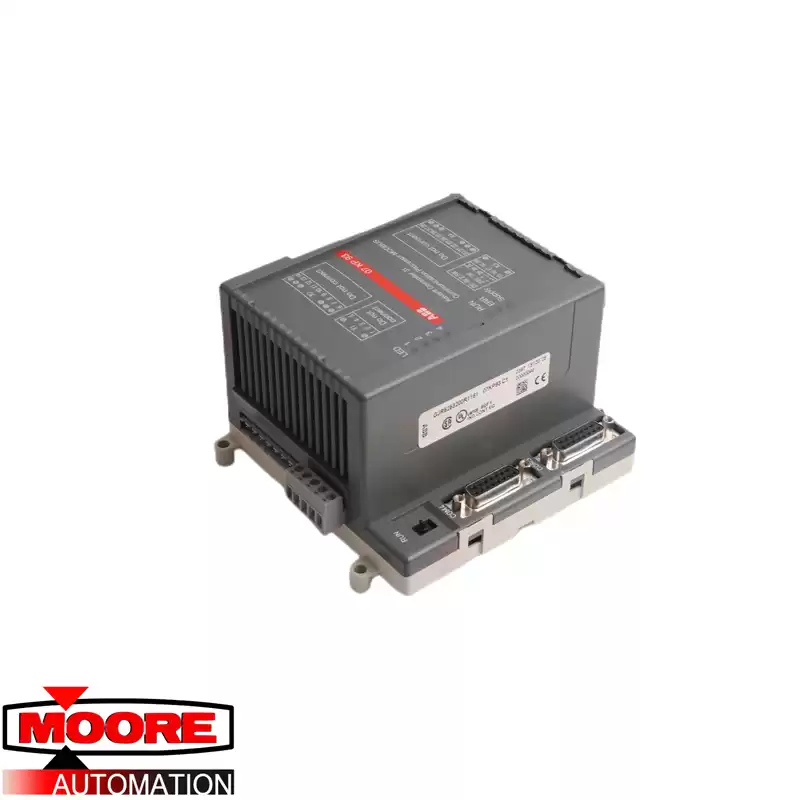

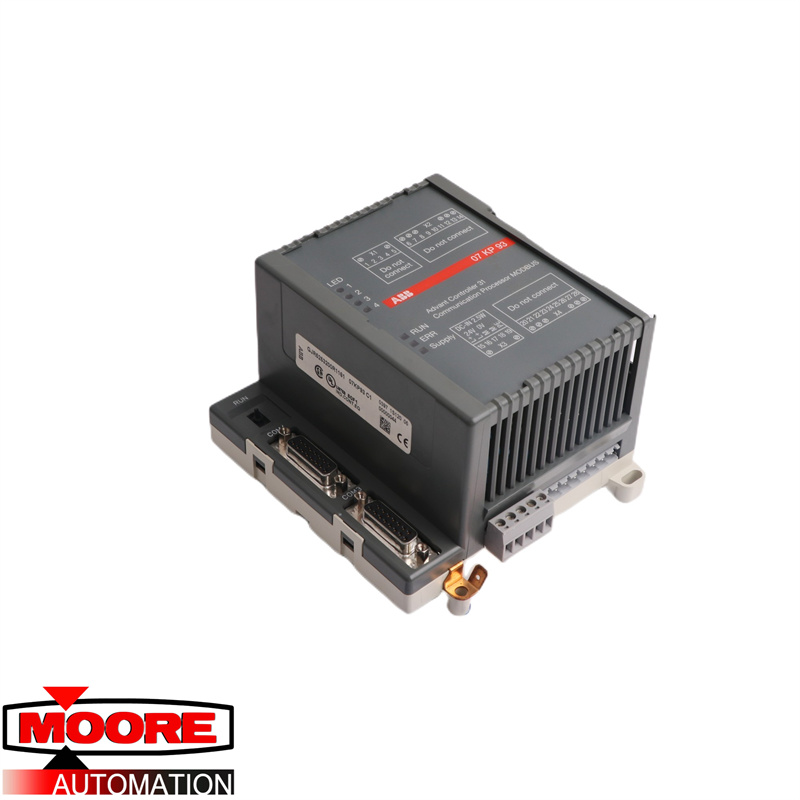

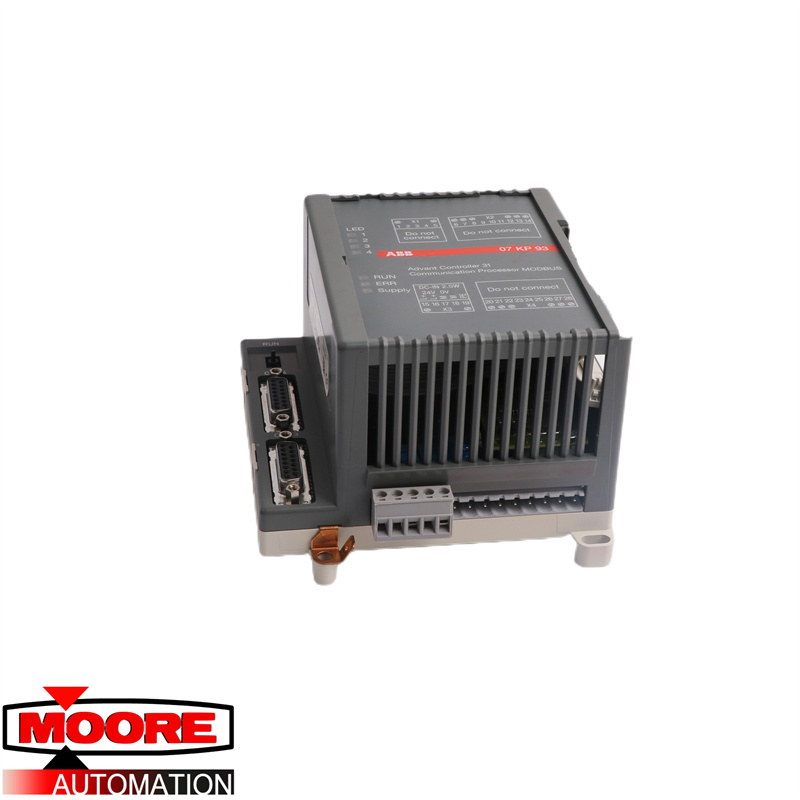

The 07 KP 93 communication processor is an interface
module with 2 serial MODBUS RTU interfaces.
The communication processor allows external units to be
connected to the Advant Controller 31 system using the
MODBUS RTU protocol.The communication processor can be connected to AC31
basic units of the 90 series which have a networking interface. The housing of the communication processor is connected to the housing of the AC31 basic unit by a snapfit connection. The electrical connection is via a 40-pole
ribbon cable with socket connector, soldered onto the
07 KP 93 side.
The powerful software planning aid NetPro with comfortable desktop allows you to easy create connections even
to other systems.
The connection to PDnet is carried out via a separate coupler. Concerning the AC31 basic units 07 KT 92, 07 KT 93
and 07 KT 94, the advantage is that the ARCNET-SST
networking can be employed at the same time.
PDnet is based on ARCNET. Complex networking (line or
star configuration etc., single or with redundancy) can be
built using coaxial cable or optical fibre.
