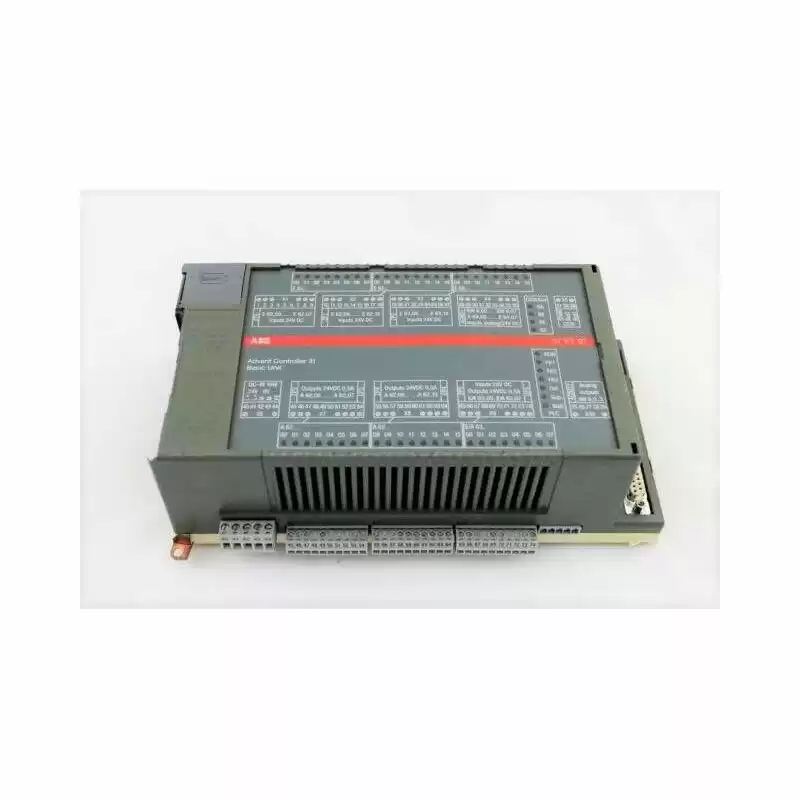

The basic unit 07 KT 97 R200 is the standard device for all applications. In addition, there are basic units with reduced performance (e.g. 07 KT 95 or 07 KT 96) as well as ones with extended performance (e.g. 07 KT 97 R260 with ARCNET connection, 07 KT 97 R0220 with PROFIBUS connection and 07 KT 97 R0262 with both ARCNET and PROFIBUS connection). A comparison table is given on page 3. This document describes the basic unit 07 KT 97 R200 and then adds the data sheets of the other devices which only show the differences.

The basic unit 07 KT 97 works either as

· bus master in the decentralized automation system Advant Controller 31 or as

· slave (remote processor) in the decentralized automation system Advant Controller 31 or as

· stand-alone basic unit.

The basic unit is powered by 24 V DC.

• » Datasheet Link

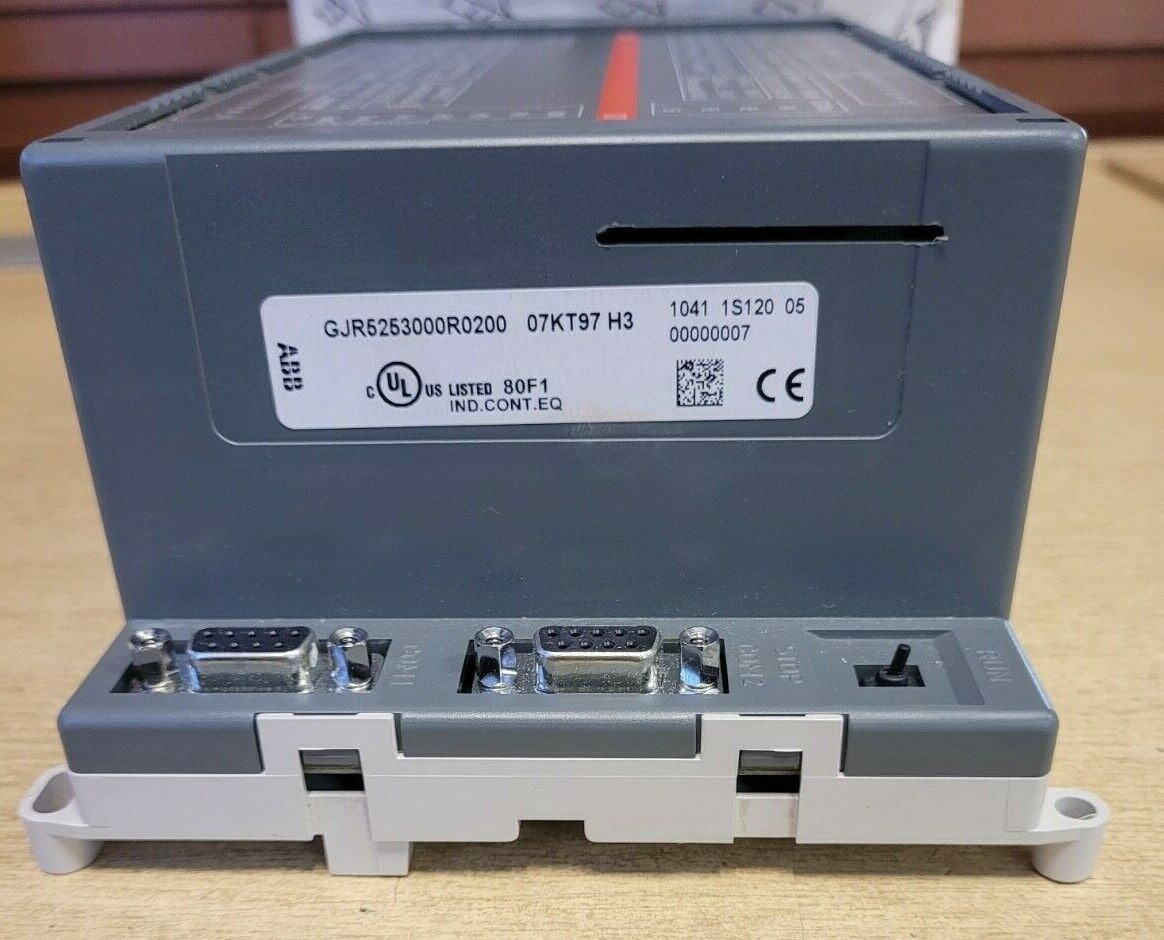

ABB 07KT97 Central Unit GJR5253000R0200 Datasheet
